Lemens Equipment LLC

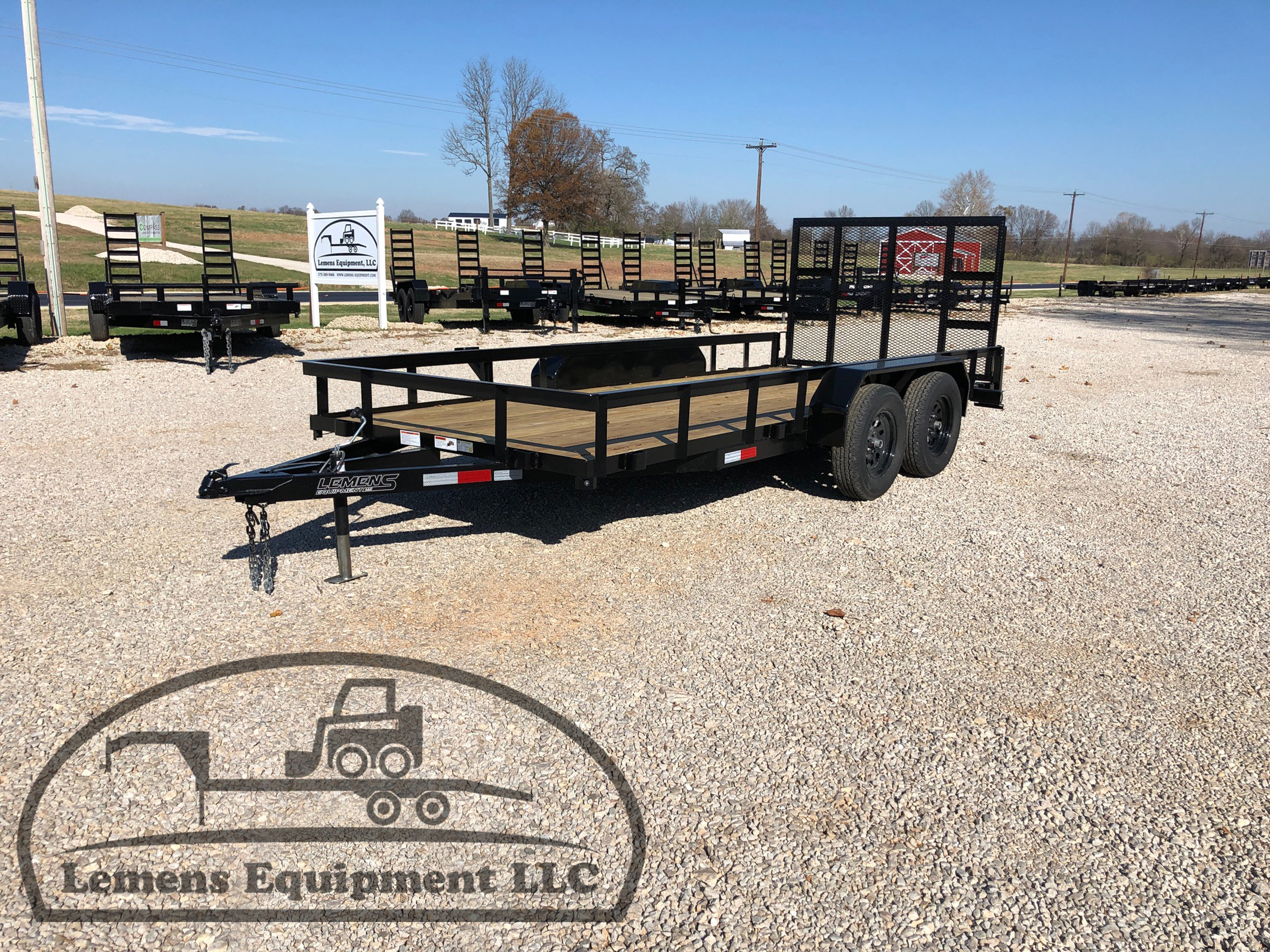

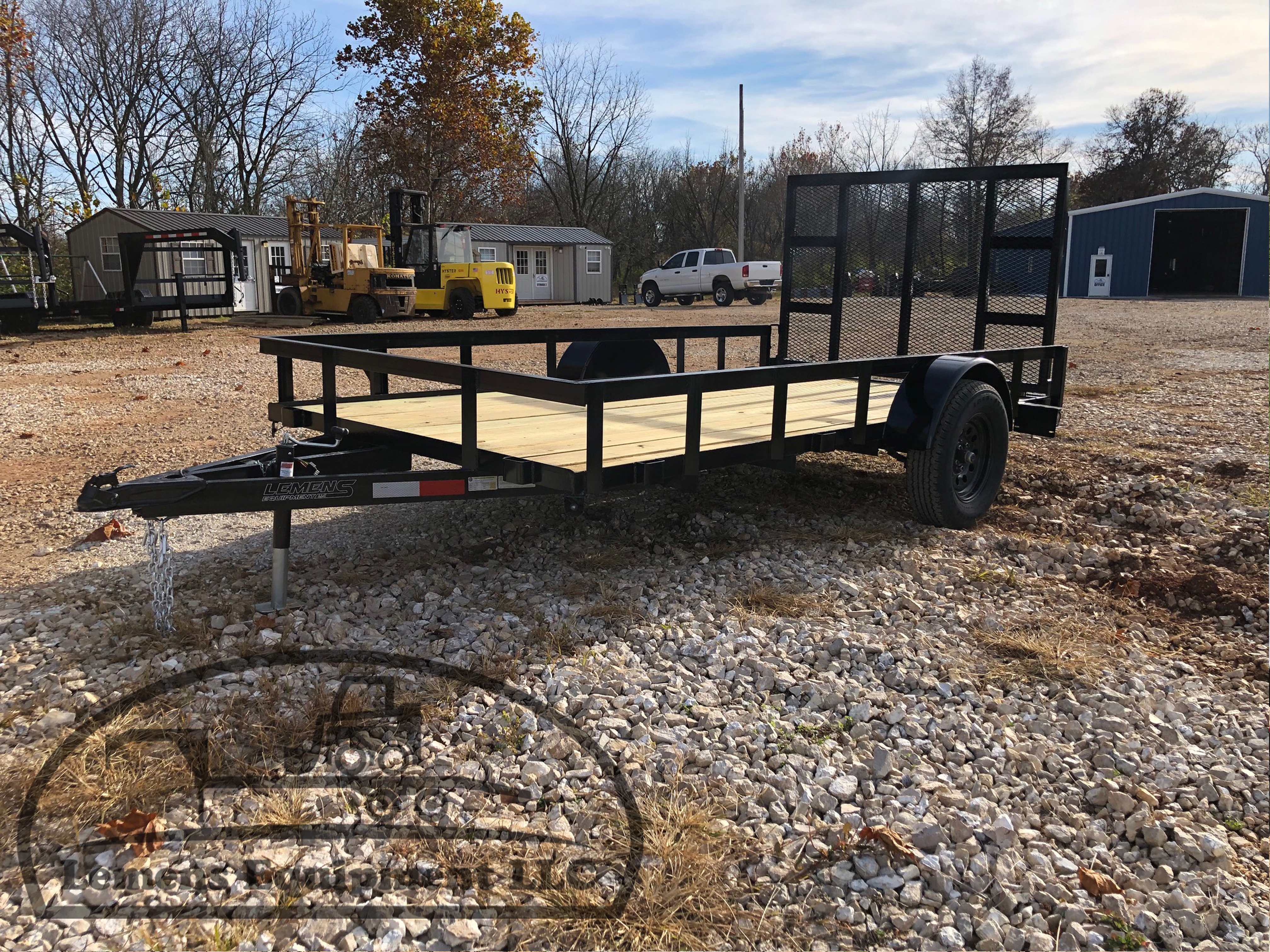

	Single Axle Trailer	Tandem Axle Trailer
Length	10ft-14ft	12ft-24ft
Width	60", 76", or 82" between fenders	76" or 82" between fenders
Frame	2x3x3/16" angle frame	2x3x3/16" angle frame (Larger than 20ft is built as flatbed with utility rails)
Tongue	4" 5.4# channel	4" 5.4# channel (And sub frame)
Cross members	2x3x3/16 angle cross members on 24" centers	3" 4.10# channel cross members on 24" on centers
Axles	3500lb Easy Lube Axle	3500lb Easy Lube Axles (Larger than 3500lb is built as flatbed with utility rails)
Tires	New 205/75 R15 6ply radial tires	New 205/75 R15 6ply radial tires
Wheels	15" - 5 on 4.5 bolt pattern	15" - 5 on 4.5 bolt pattern
Coupler	2" 8k coupler	2" 8k coupler

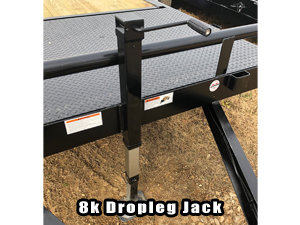

Jack	Pivot jack	Pivot jack

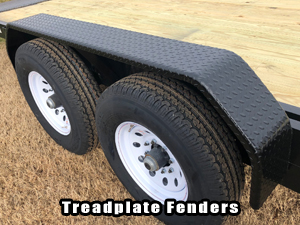

Fenders	16ga smooth fender	11ga tread plate with supports
Lumber	#1 treated 2x8 lumber(screwed down)	#1 treated 2x8 lumber(screwed down)
Lights	All led	All led

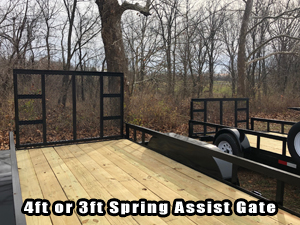

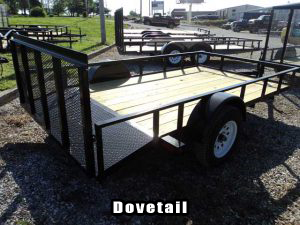

Gate	4ft Fold In Spring Assist Gate (Dovetails come standard with 3ft Gate)	4ft Fold In Spring Assist Gate (Dovetails come standard with 3ft Gate)

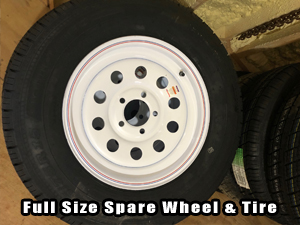

Spare tire mount	On passenger side	On passenger side
Tie downs	Stake pockets	Stake pockets
Plug	4 flat plug	4 flat plug if no brakes, 7 pin round rv if brakes
Warranty	Lifetime on welds, 6 years on axles, 2 years on tires	Lifetime on welds, 6 years on axles, 2 years on tires

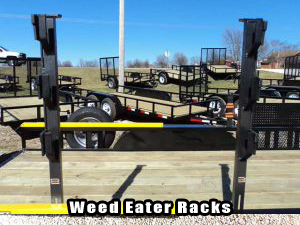

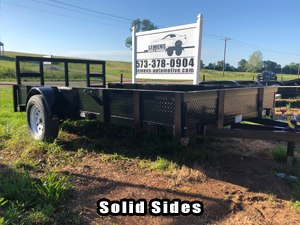

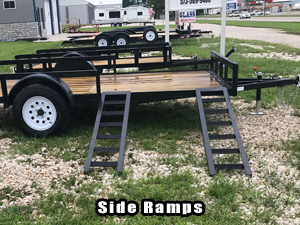

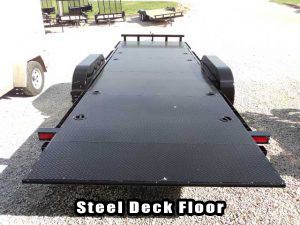

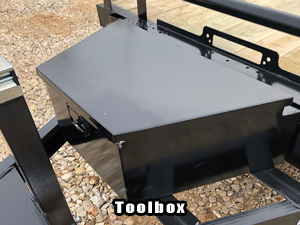

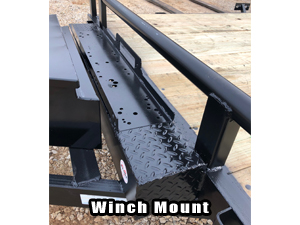

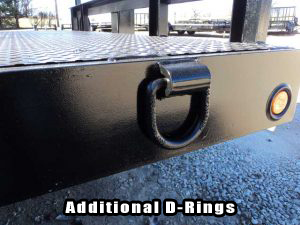

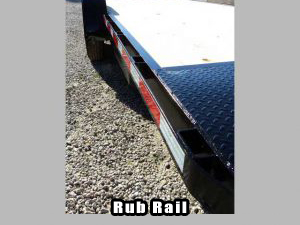

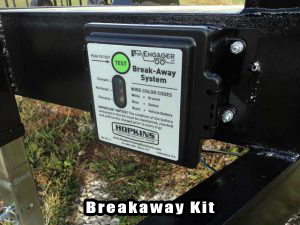

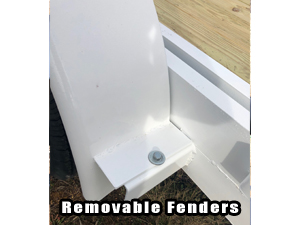

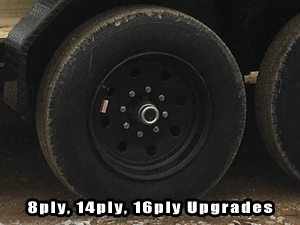

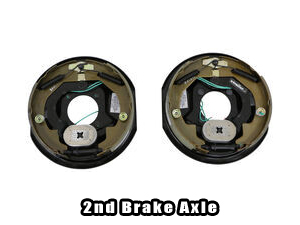

Additional Utility Trailer Options
We can mix and match standard features such as put a 2 5/16" coupler on a 7k trailer, put tread plate fenders on a 7k trailer, etc along with these additional options.








Colors
We have several colors that you can choose from, some of them can be seen below. Ask us if you need a different color. Colors other then black are an additional cost.

Blue

Gray

Army Green

John Deere Green

Lime Green

Orange


Red

White

Yellow
