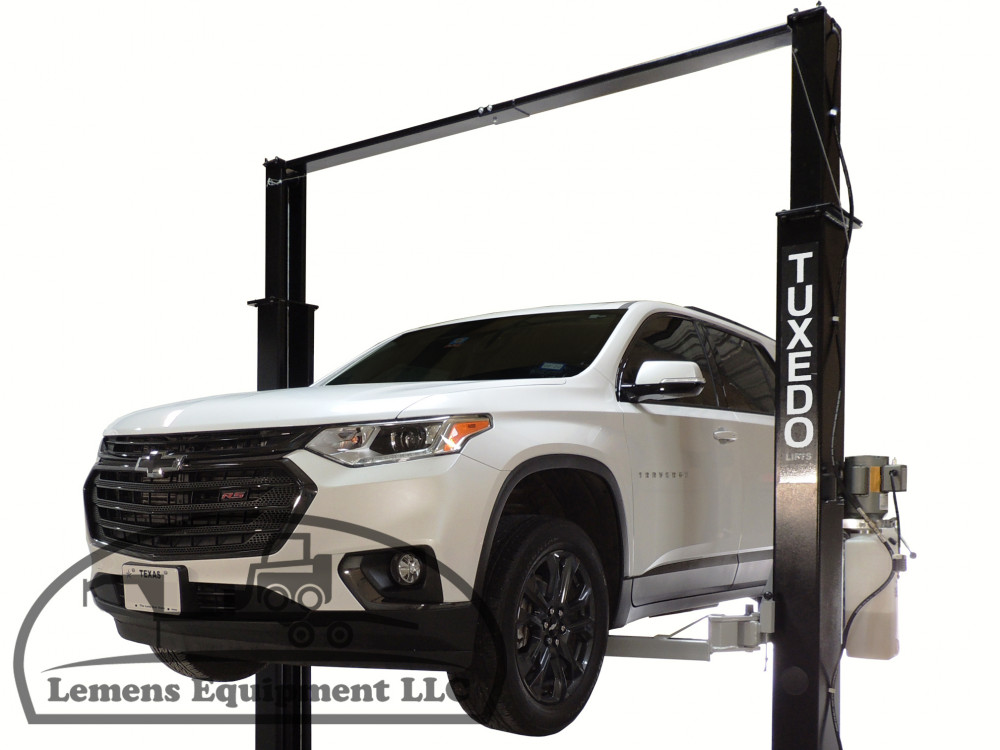

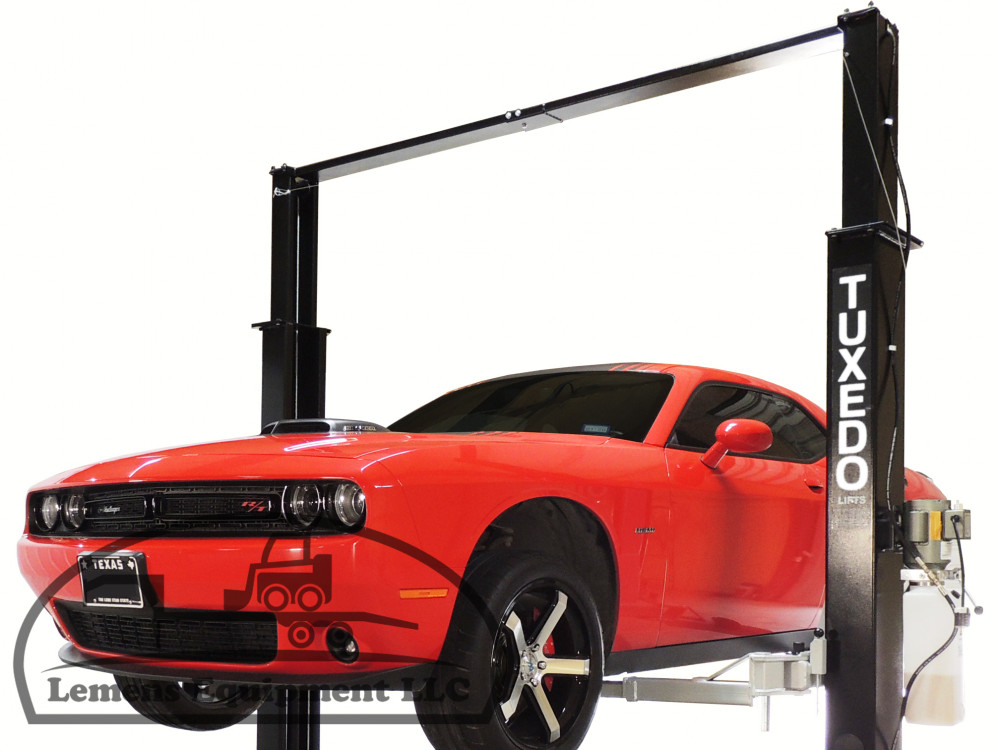

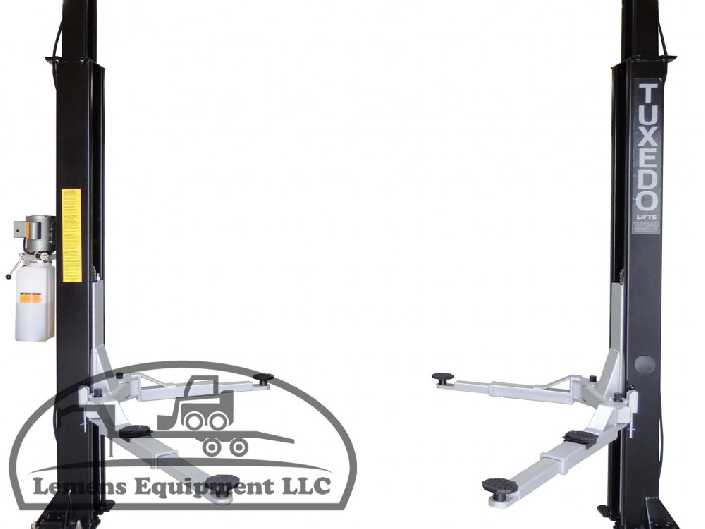

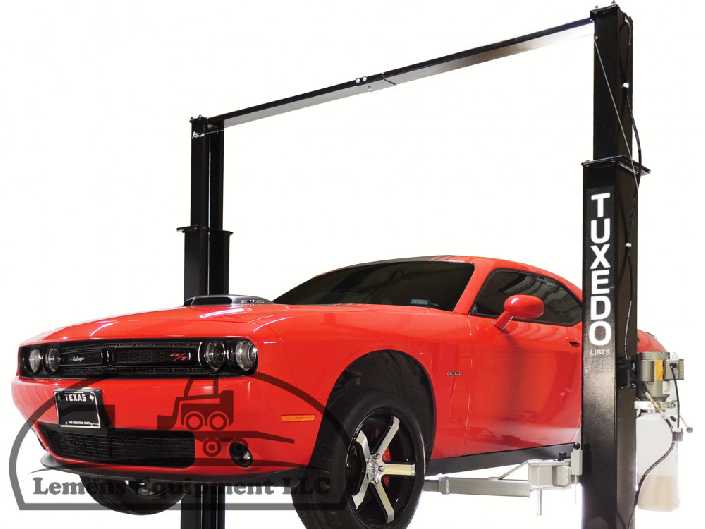

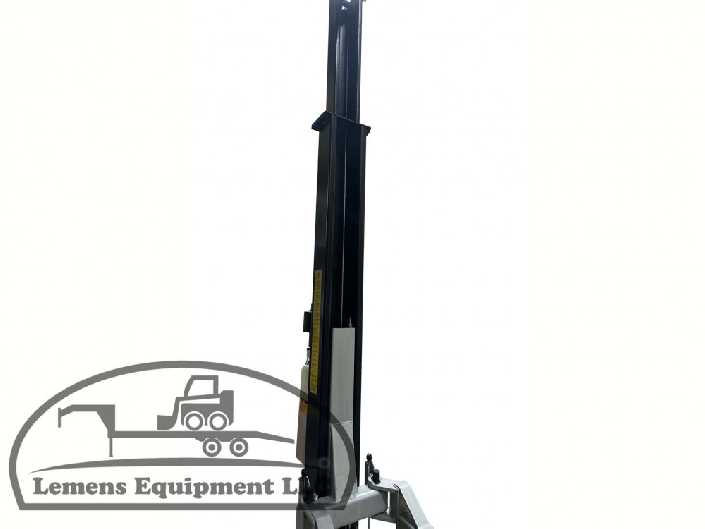

The TUXEDO TP9KAC-TUX 9,000 lb. Light Duty Two Post Lift is an economy designed clear floor vehicle lift with standard lift features including: asymmetrical swing arms, low profile 4" lifting pads, stackable height adaptors, saddle pad adaptors and dual point carriage lock releases. The one piece column with uprights combined with reliable chain drive cylinders make it the perfect service lift for passenger cars, light duty trucks & most SUVs. The automatic arm restraints and durable powder-coat finish provide an economically priced lift with all the features, all for a great value!

GENERAL

-Capacity: 9,000 lbs

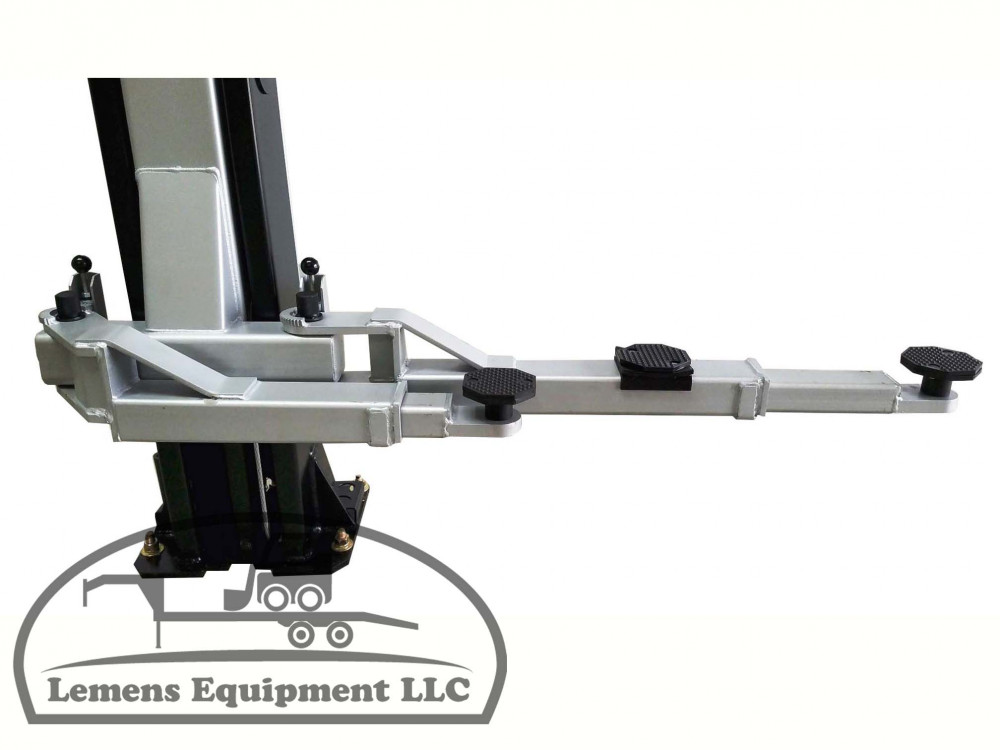

-Asymmetric Lift Arms
-Low Profile Swing Arm Design

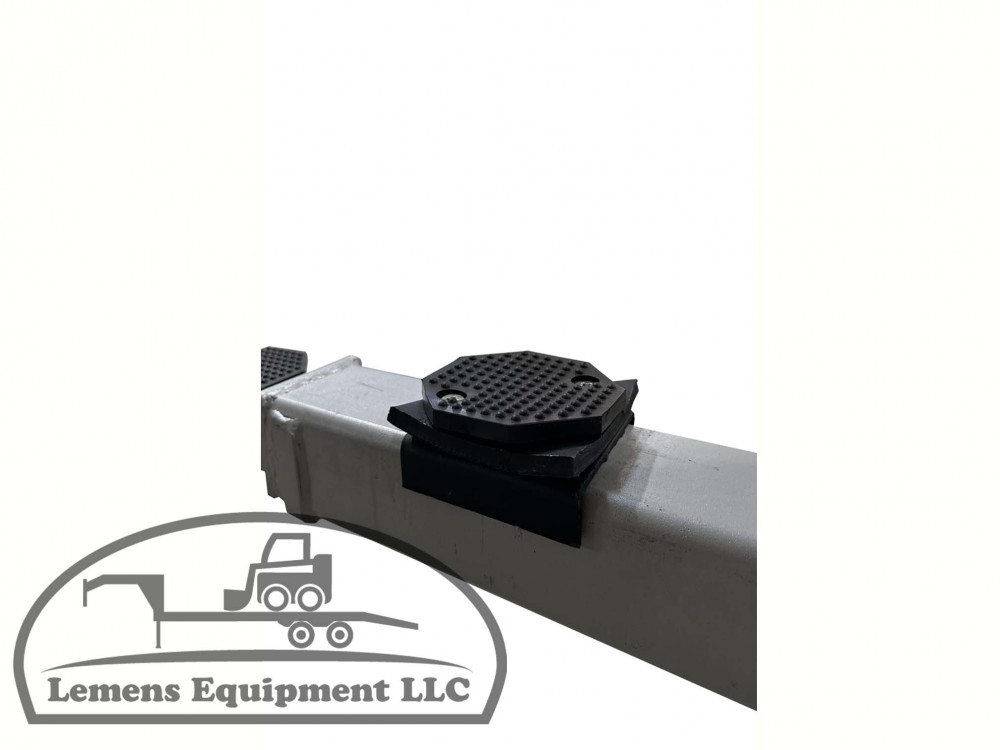

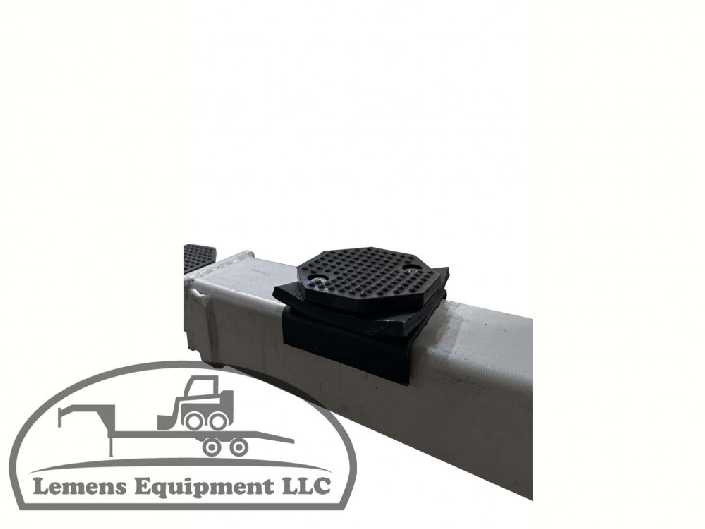

-Low Profile ‘Drop In’ Lift Pads

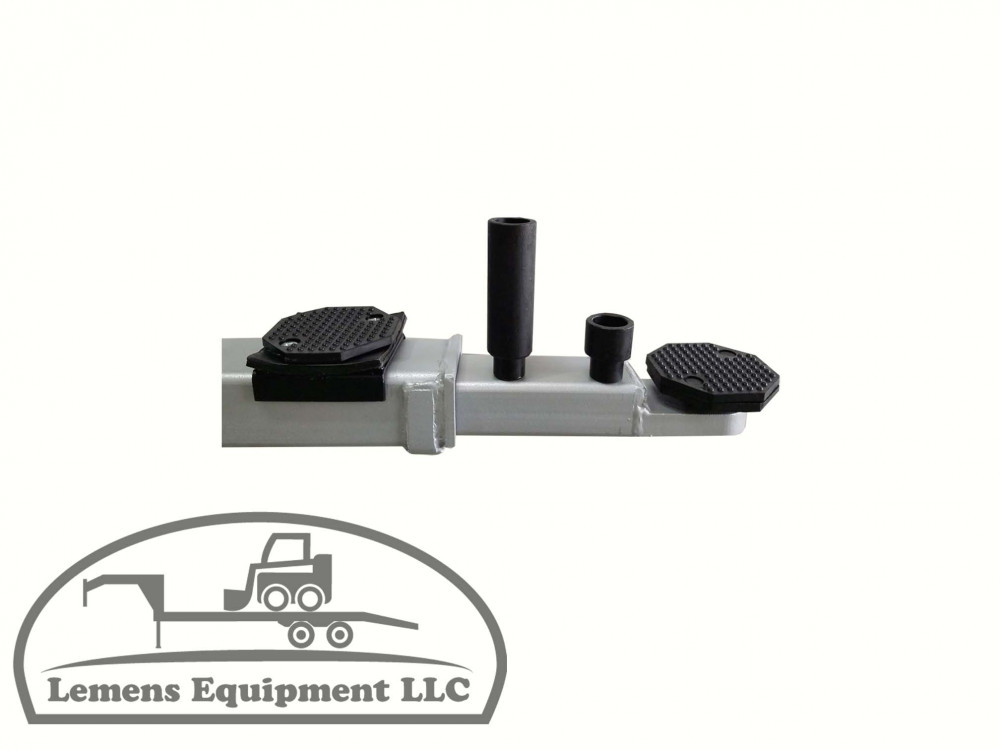

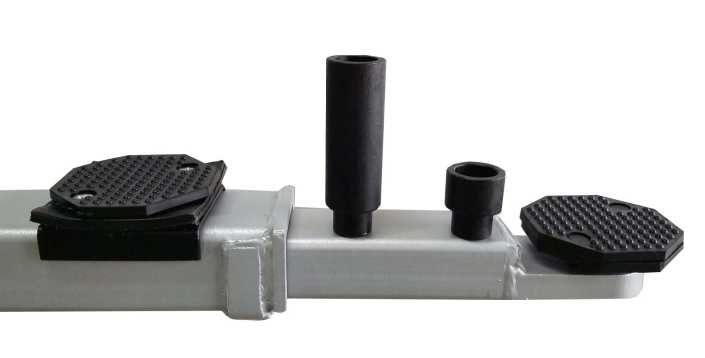

-1-5/16" & 5" Stackable Height Adaptors
-Saddle Pad Adamptors (1 pair)
-Dual Point Lock Release
-Overhead ‘Shut-Off’ Limit Wire

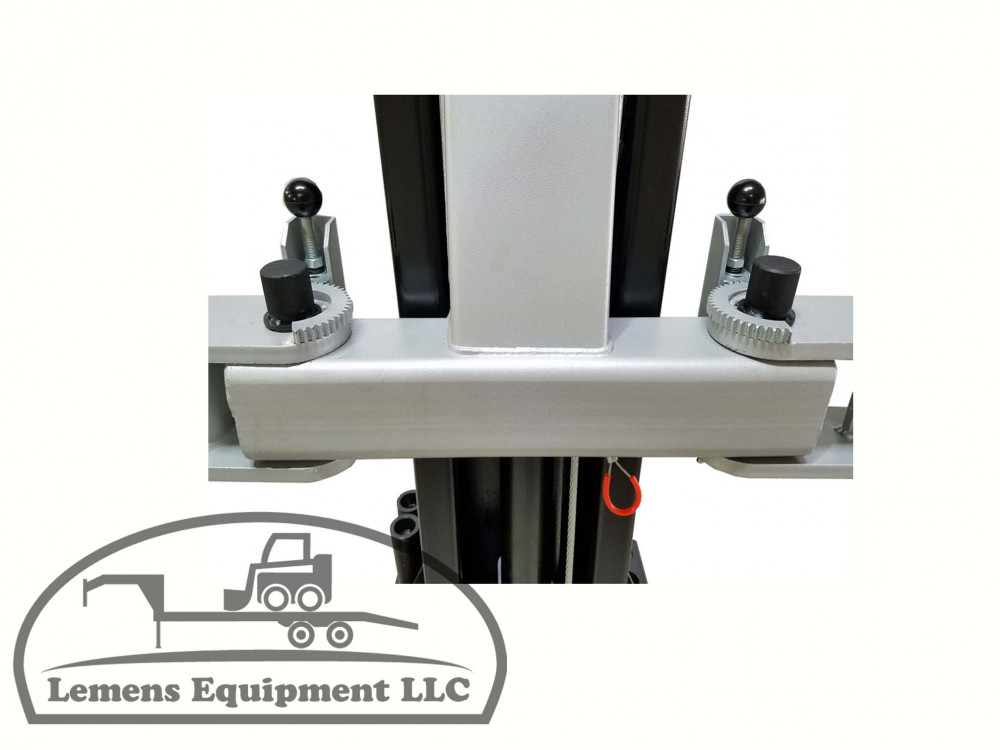

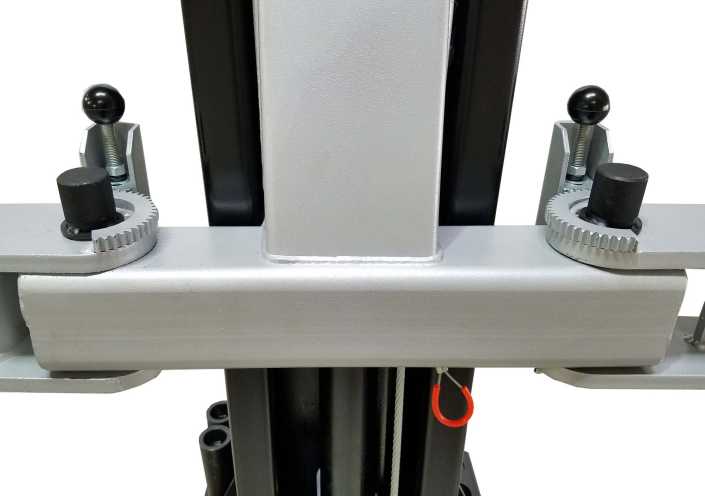

-Automatic Arm Restraints
-Chain Drive Cylinders
-Durable Powder-Coat Finish

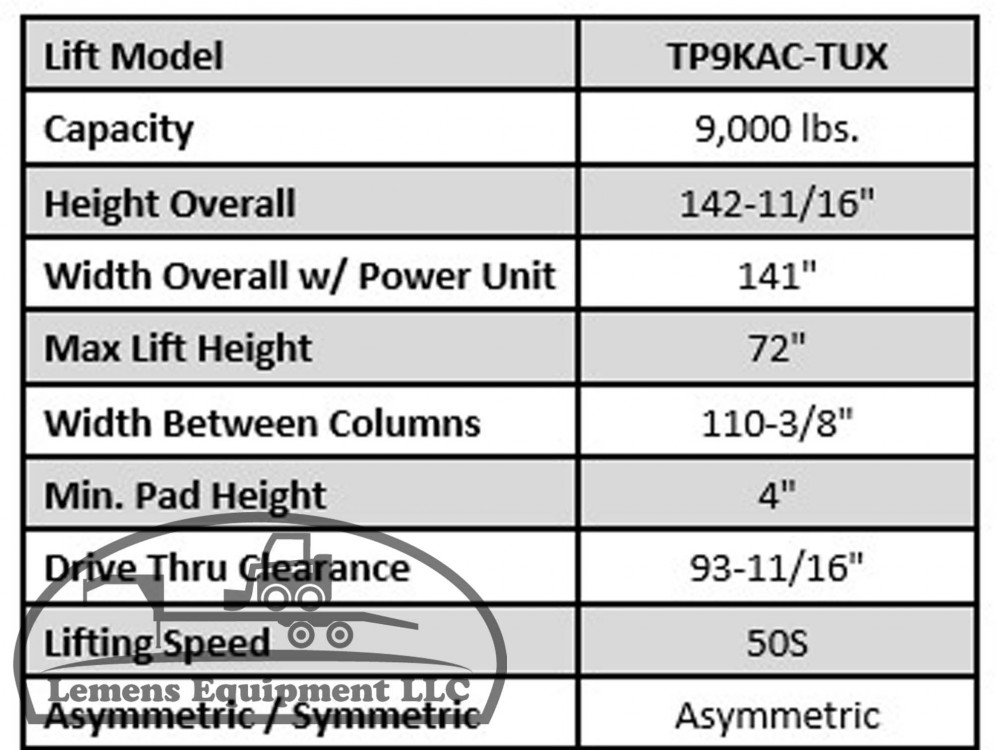

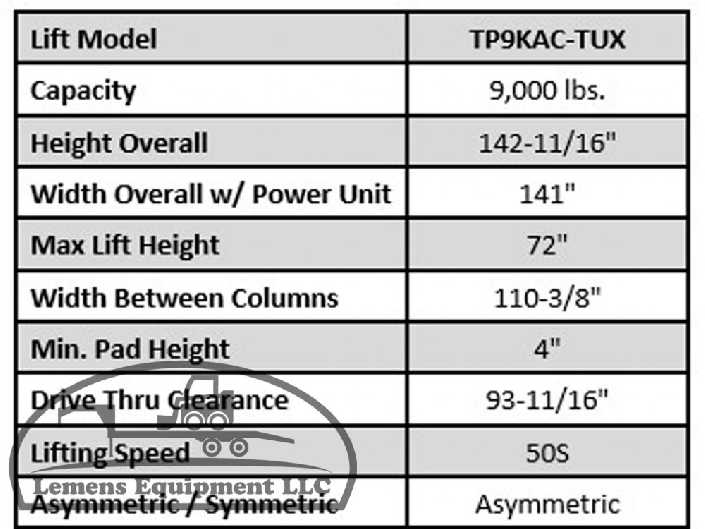

CONSTRUCTION

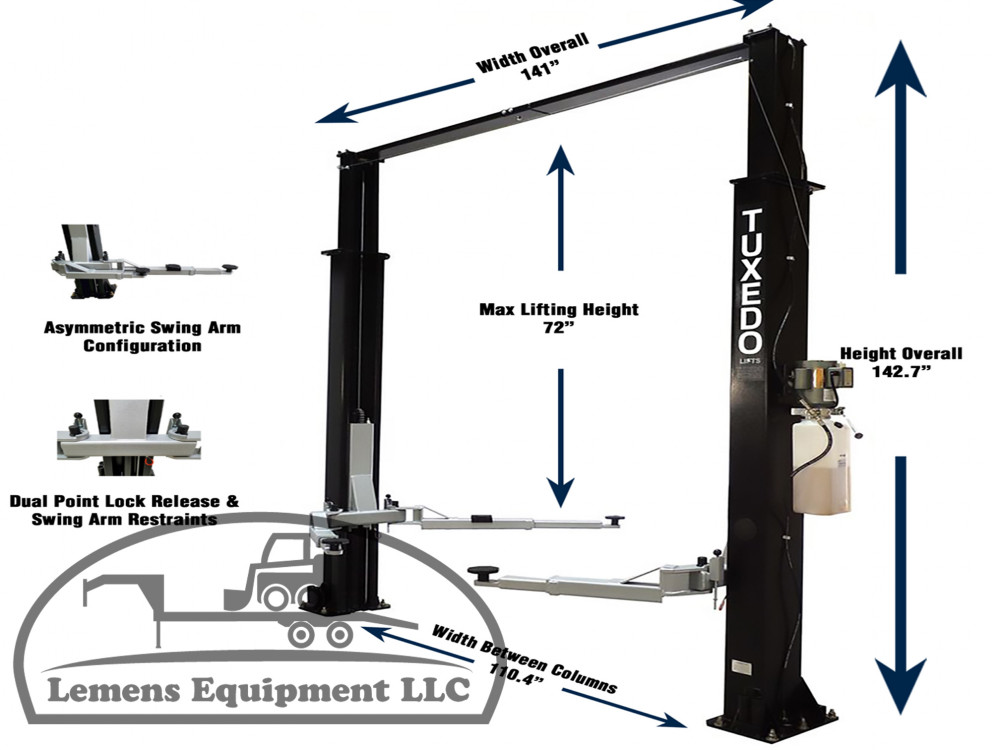

-Height Overall: 142.7"
-Width Overall w/ Power Unit: 141"
-Max Lift Height: 72"
-Width Between Columns: 110.4"
-Min. Pad Height: 4"
-Drive Thru Clearance: 93.7"
-Lifting Speed: 50 seconds
-Asymmetric/Symmetric: Asymmetric
-Clear Floor/Floor Plate: Clear Floor
-Short Arm Reach - min/max: 28.5" - 41.4"
-Long Arm Reach - min/max: 37.1" - 57.2"
-Max Load Per Arm: 2,250 lbs
-Ceiling Height Required: 144"
-Ship Weight: 1,390 lbs

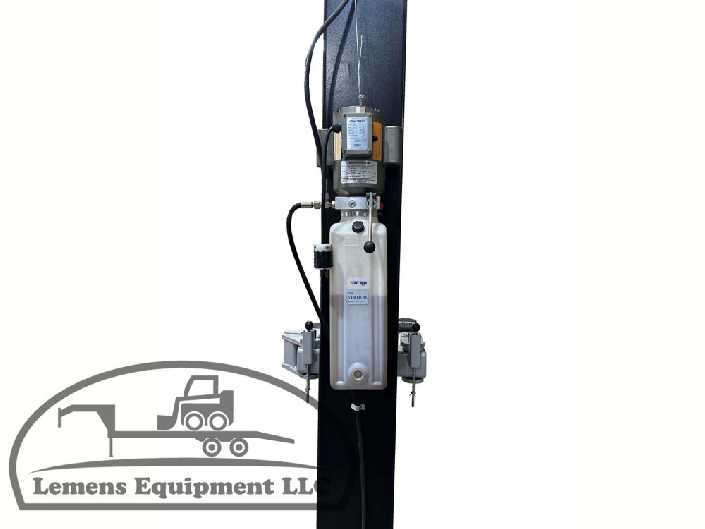

-Power: 220V - 20 AMP - 1PH

OPTIONS

-Cradle Adaptors (set of 4)

WARRANTY

-5 Year Structural Warranty On: Columns, Arms, Uprights, Swivel Pins, Legs, Carriages, Overhead Beam, Tracks, Cross Rails, and Top Rail Beam
-Limited One-Year Warranty: Tuxedo Distributors, LLC (Tuxedo) offers a limited one-year warranty to the original purchaser of Lifts and Wheel Service equipment in the United States and Canada. Tuxedo will replace, without charge, any part found defective in materials or workmanship under normal use, for a period of one year after purchase.
-The purchaser is responsible for all shipping charges. This warranty does not apply to equipment that has been improperly installed or altered or that has not been operated or maintained according to specifications

SHIPPING

-All in stock lifts can be picked up here at Lemens Equipment LLC in Eldon MO. Please give us a day notice prior to coming so we can get it ready for you.
-Lifts can be drop shipped directly to you, if you have a method to unload it at your destination. They can also be shipped here and picked up from us.
-Freight is cheaper per item when we buy multiple lifts at a time on a Hotshot. That is why the shipping charge on our in stock lifts is cheaper then out of stock lifts that would ship by themselfs via LTL.
