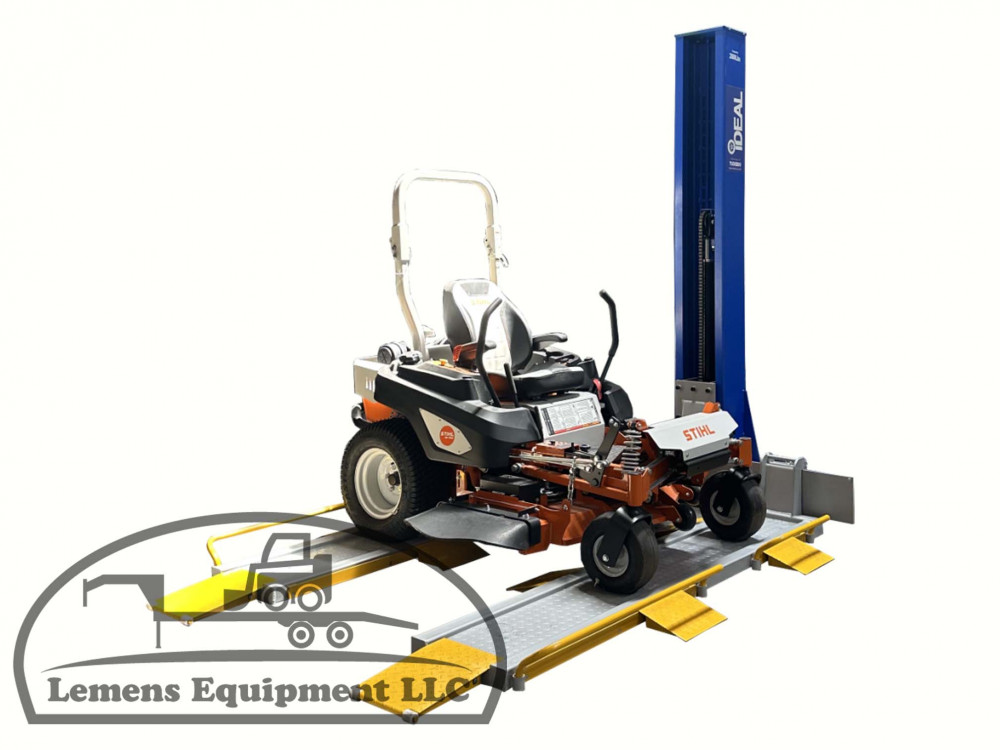

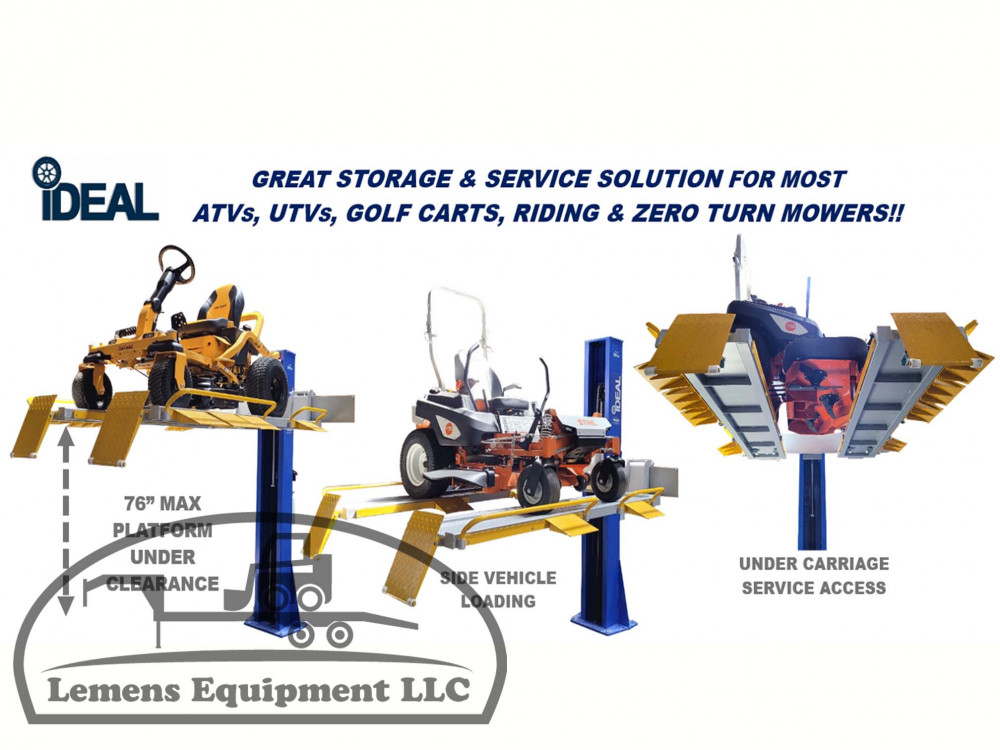

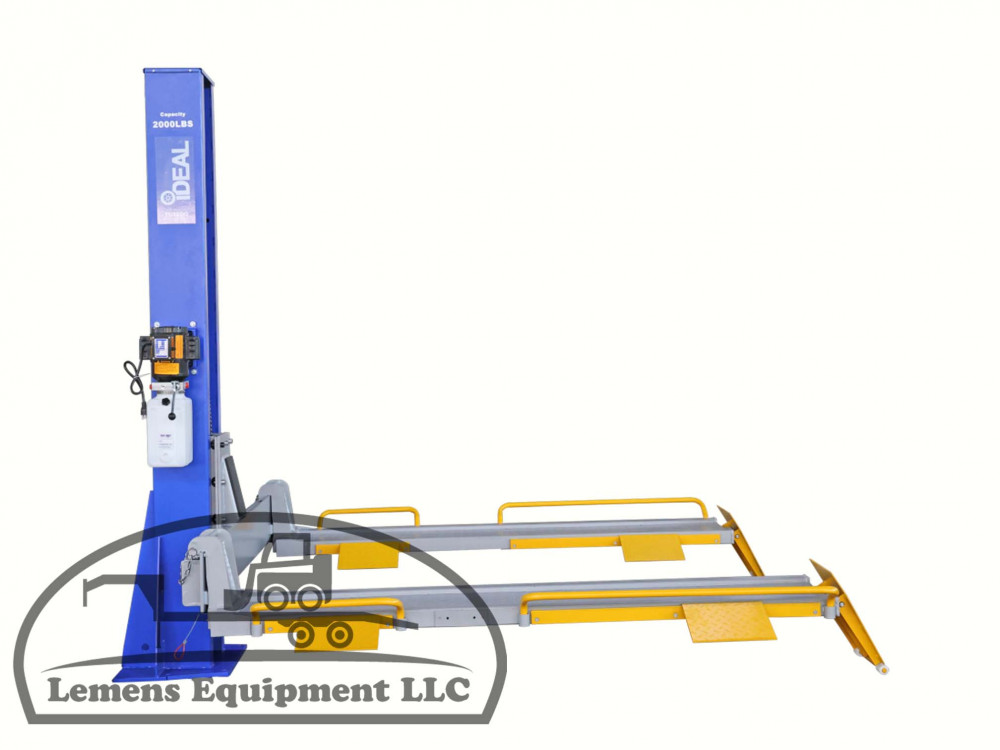

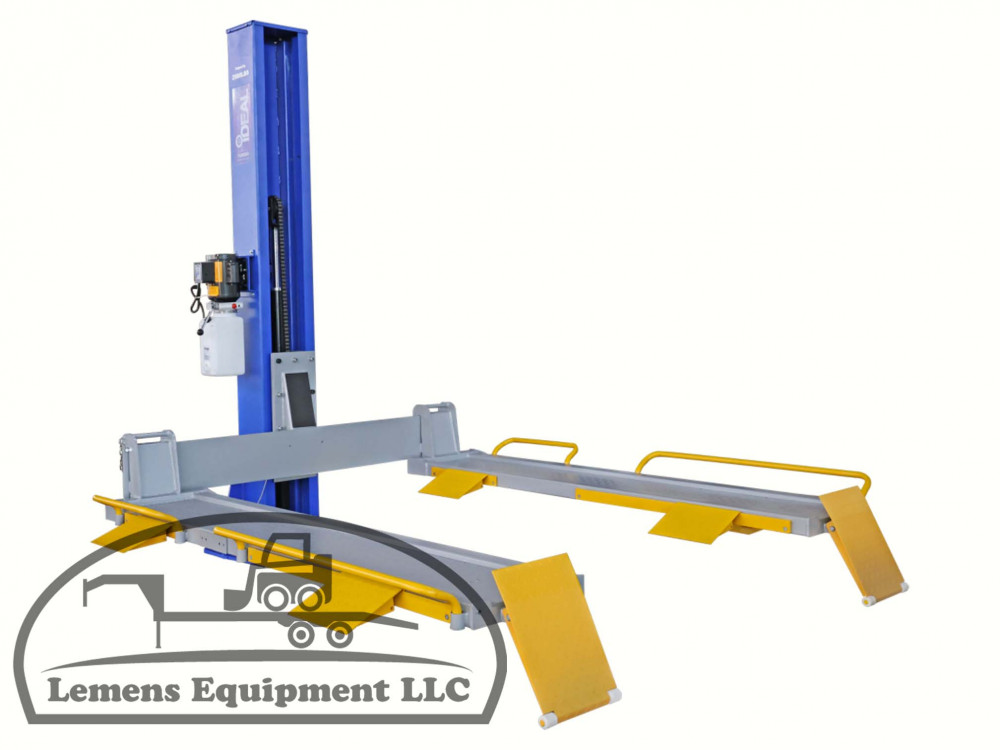

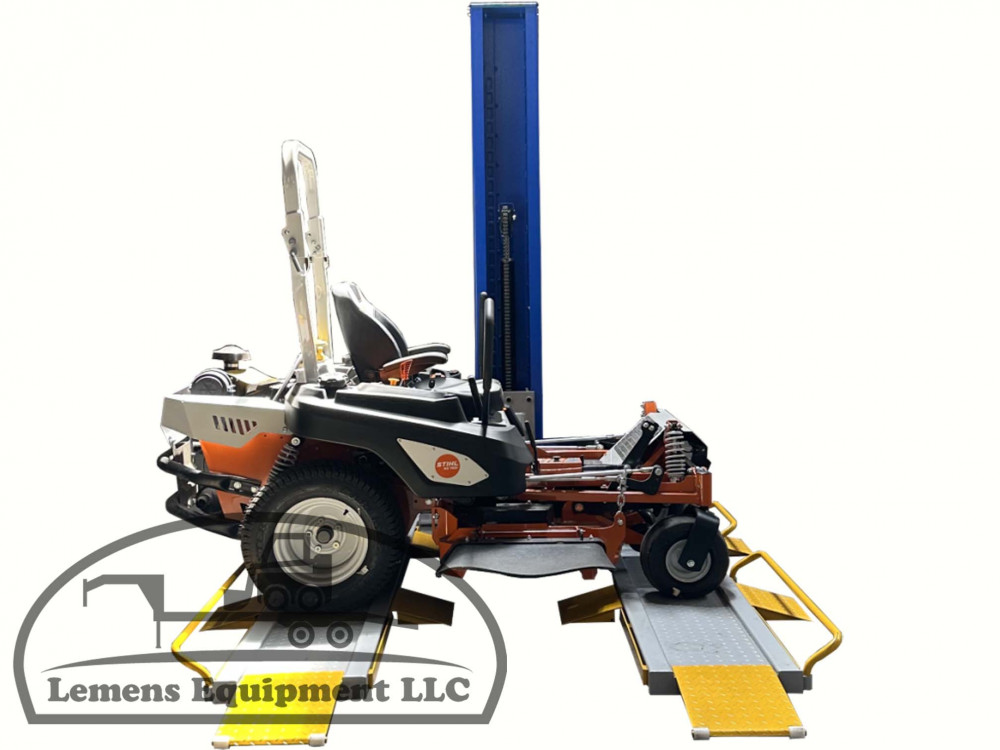

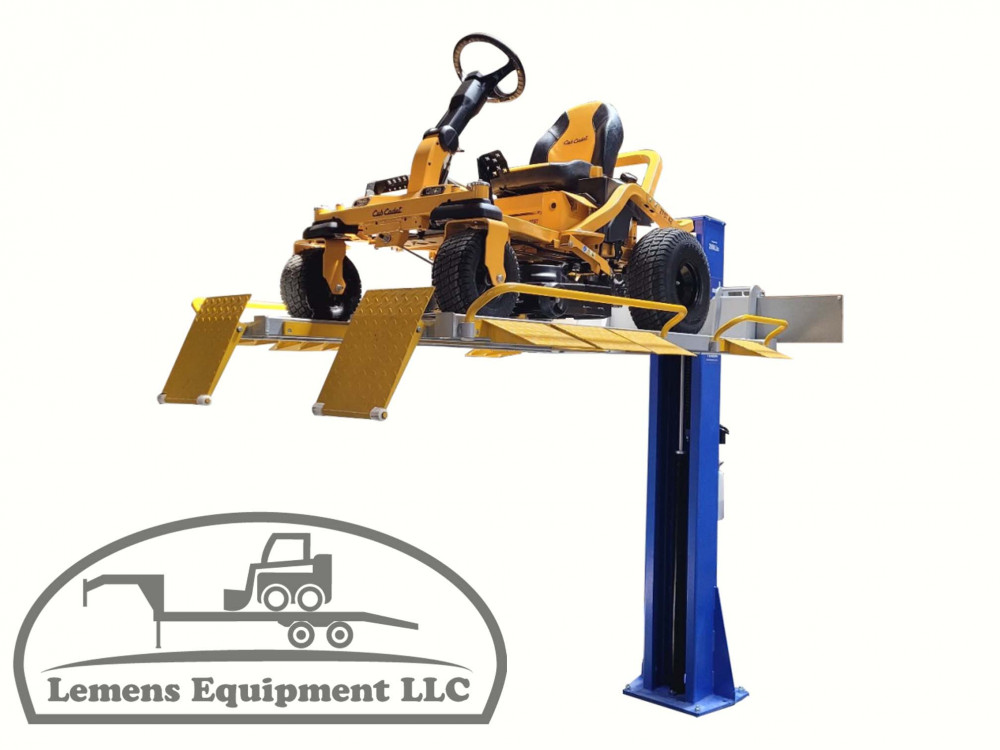

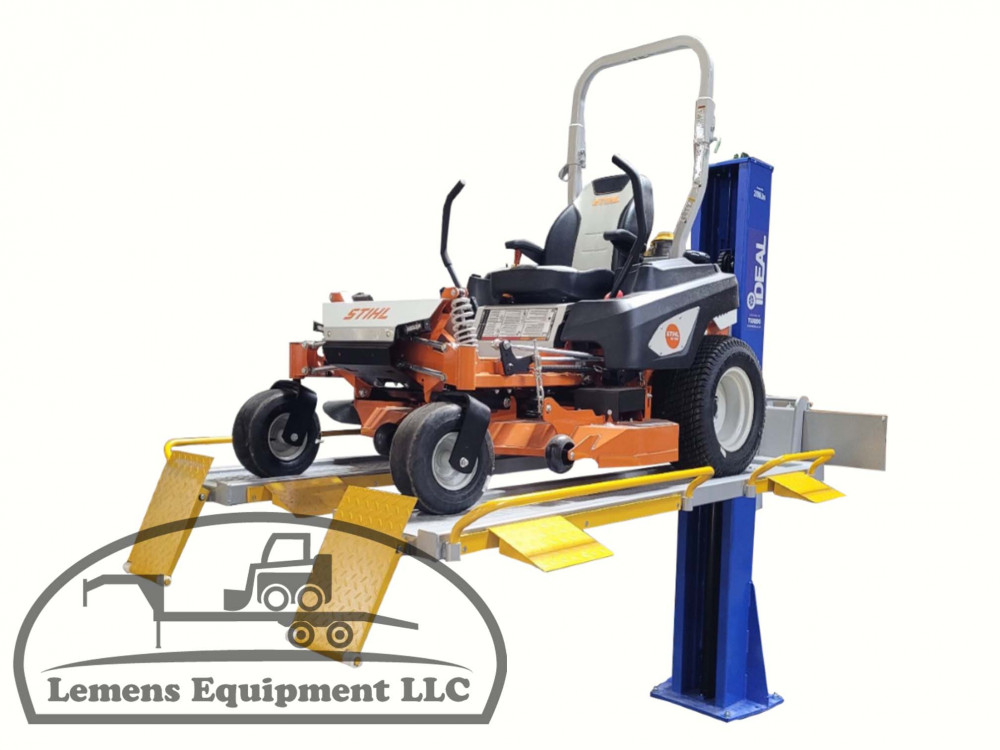

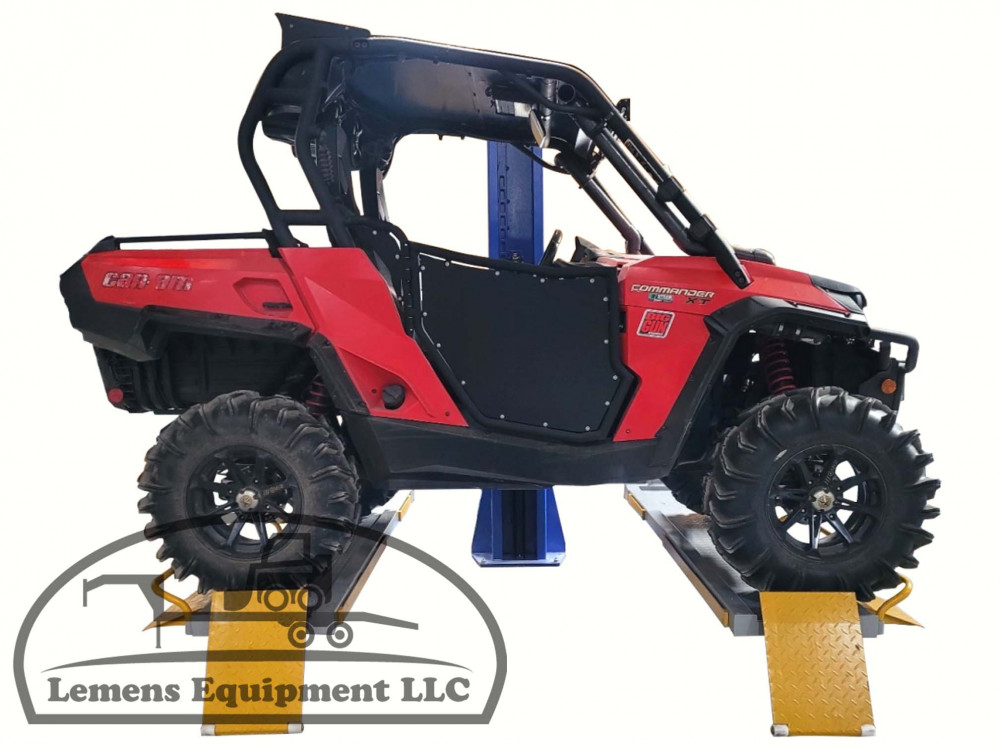

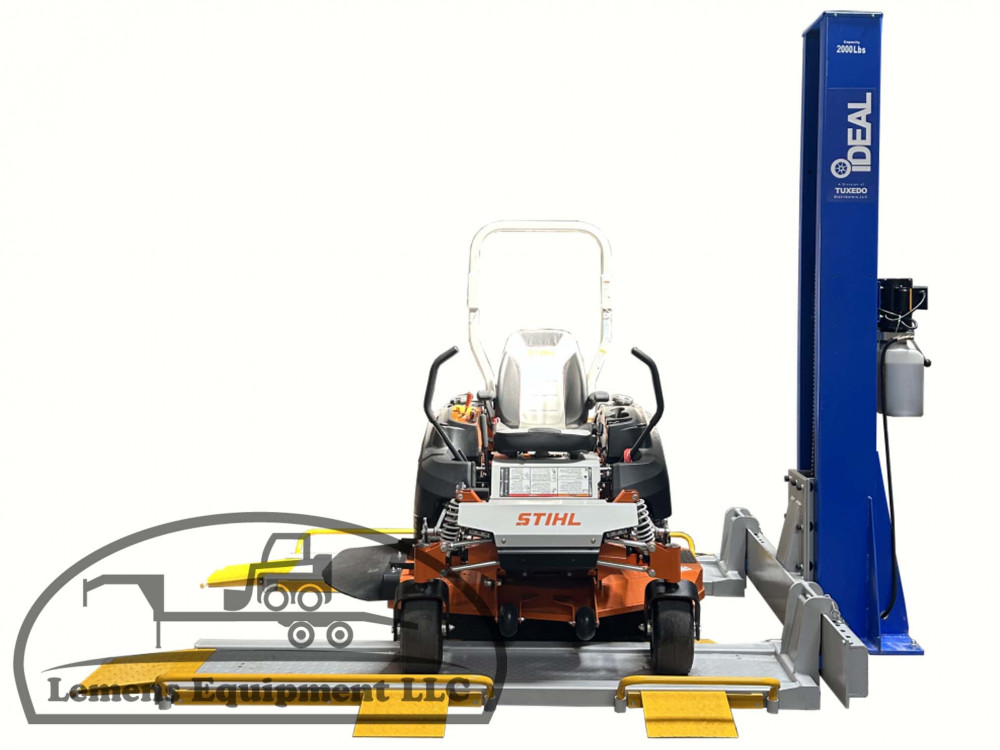

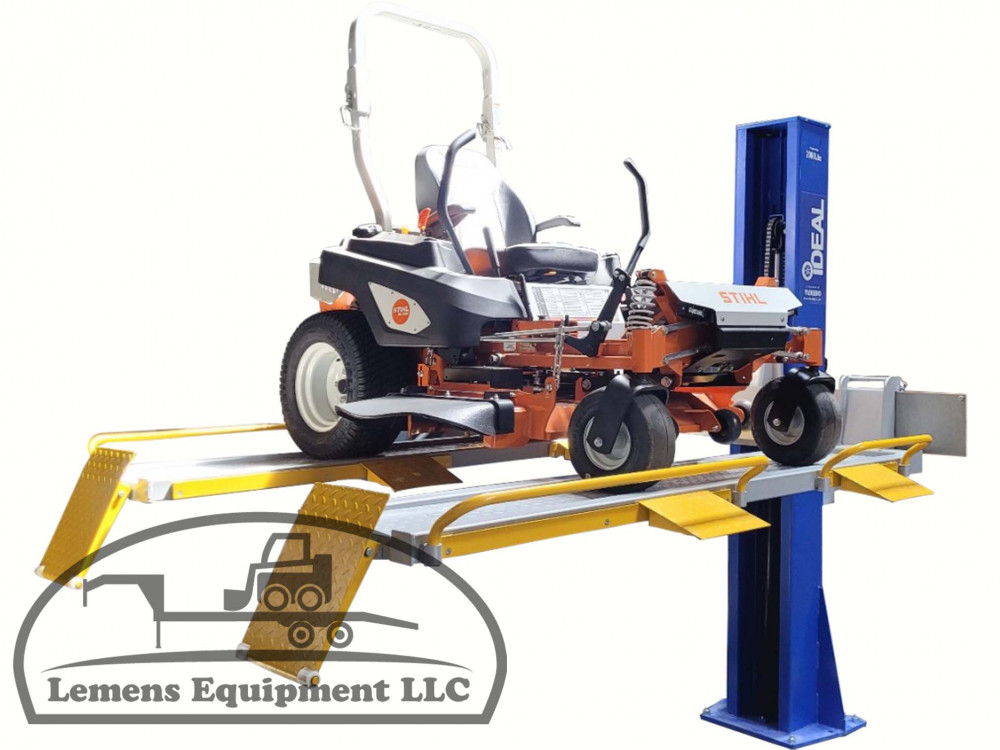

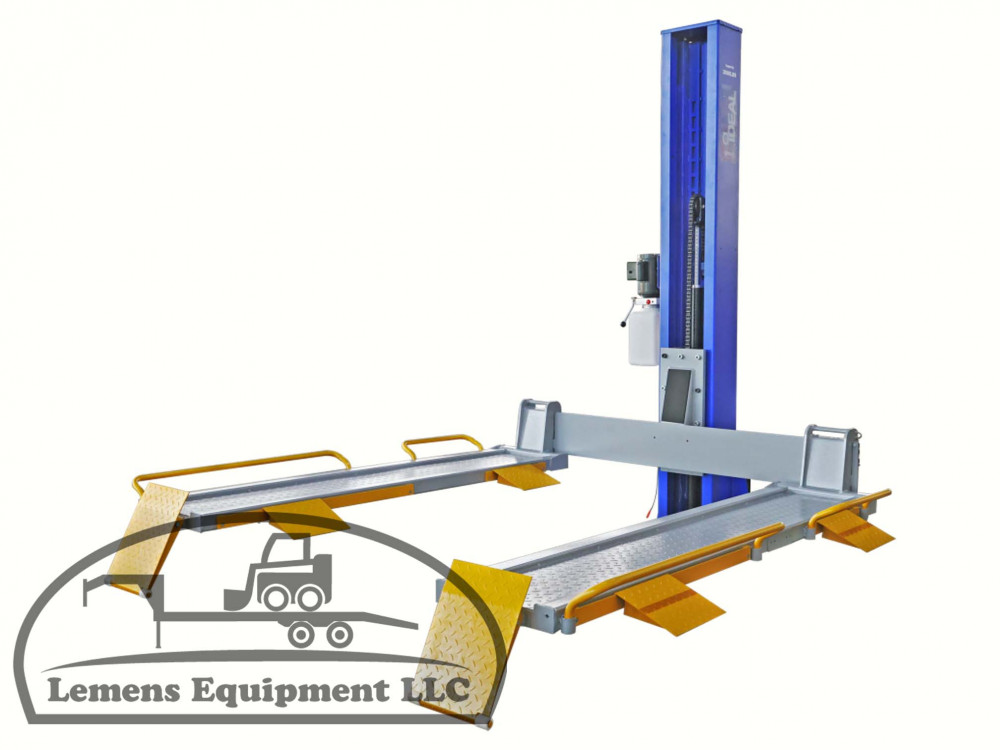

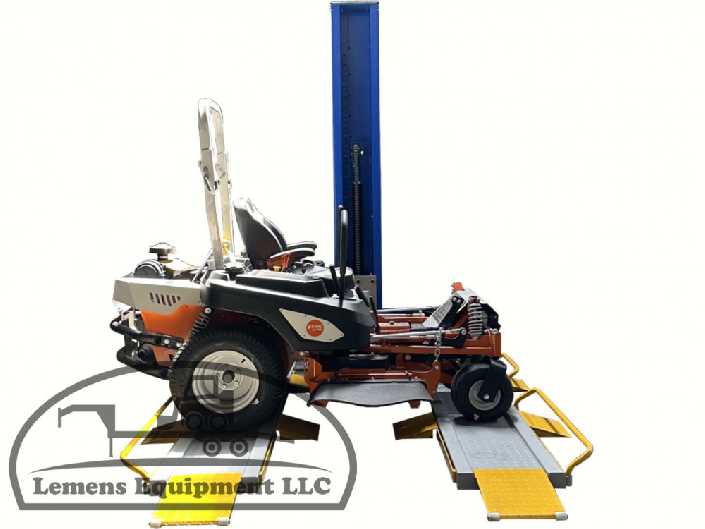

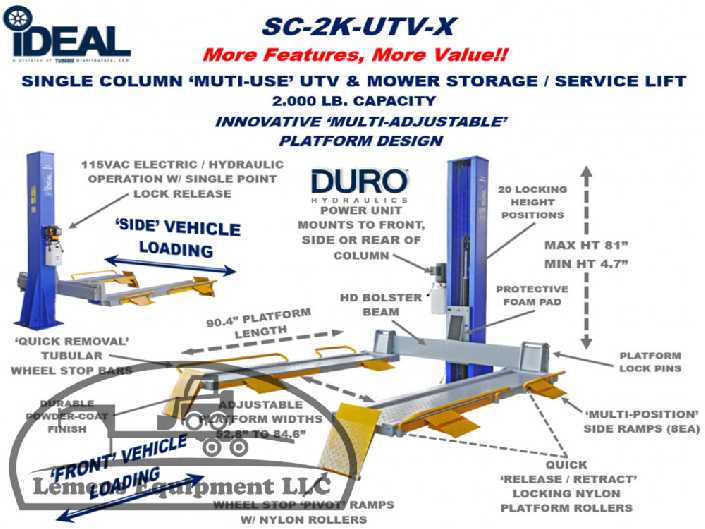

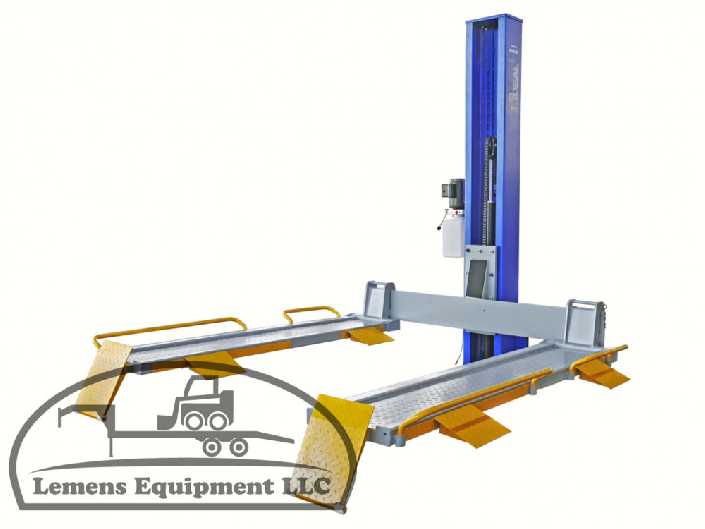

The iDEAL SC-2K-UTV-X is an innovative 2,000 lb. single column, high-rise ‘multi-use’ storage & service lift, incorporating ‘multi-adjustable’ platform design with multi-directional front & side vehicle loading for most ATV’s, UTV’s, Golf Carts & Riding / Zero Turn Mowers. The low-profile multi-adjustable platforms incorporate spring-loaded ‘quick release / locking nylon rollers & brackets mounted to the underside of each platform, making adjusting the platforms width’s ‘quick & easy’. Each platform is secured to the bolster via HD lock pins & retainer brackets once the desired platform width is set. For additional space saving benefits, the power unit can be easily mounted to either the front, side, or rear of the column providing the best fit in a shop or garage!

In addition, iDEAL SC-2K-UTV-X 2,000 lb. Lift comes standard with durable powder-coat finish, 8ea multi-position side ramps, wheel stop ‘pivot’ ramps with protective nylon rollers, quick removal tubular wheel stop bars for platform sides. Easy lift operation is provided with high quality electric / hydraulic 115V DURO power unit, HD hydraulic chain drive cylinder and single point manual lock release with 20 differ locking height positions.

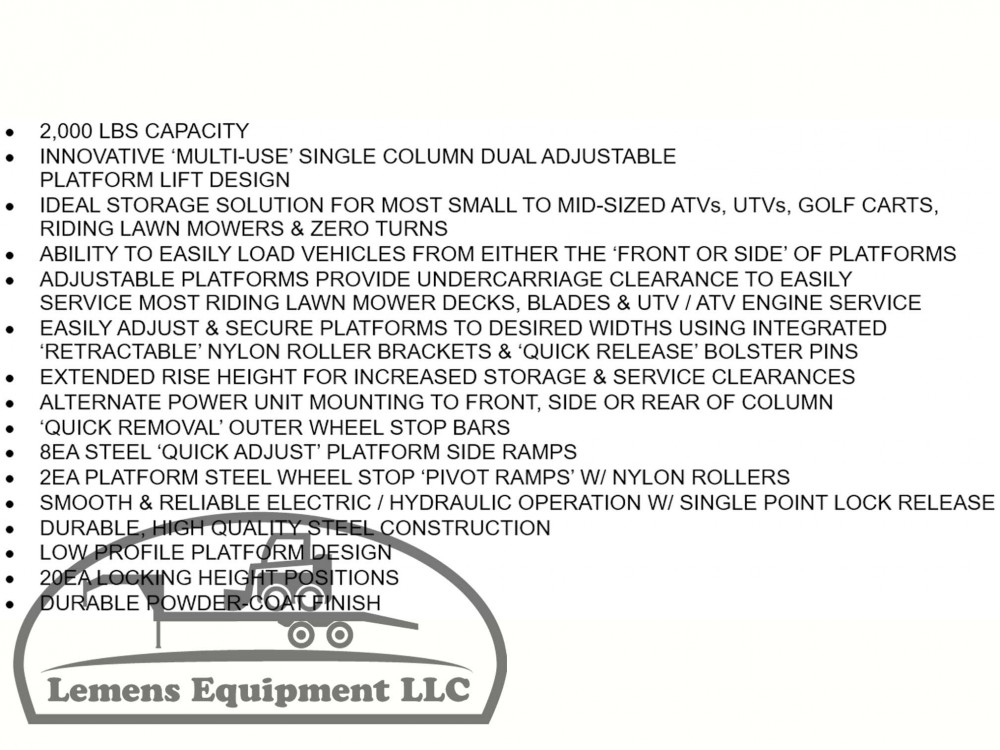

GENERAL

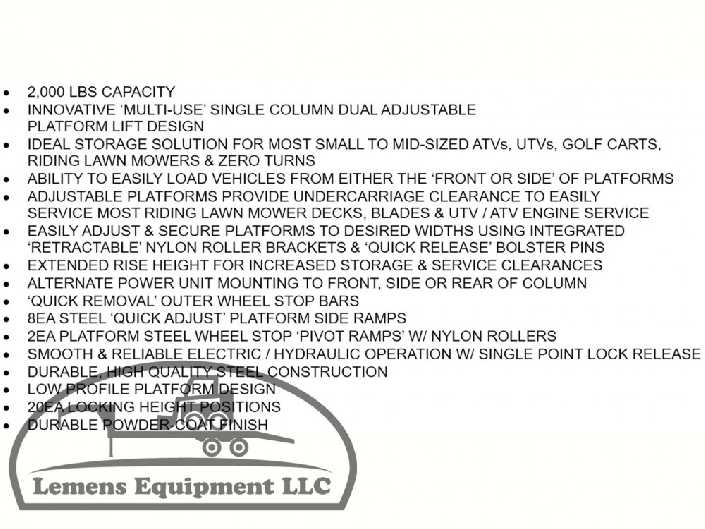

- Capacity: 2,000 lbs
- Innovative ‘multi-use’ single column dual adjustable platform lift design
- Ideal storage solution for most small to midsized ATVs, UTVs, golf carts, riding lawn mowers, and zero turn mowers
- Ability to easily load vehicles from either the ‘front or side’ of platforms

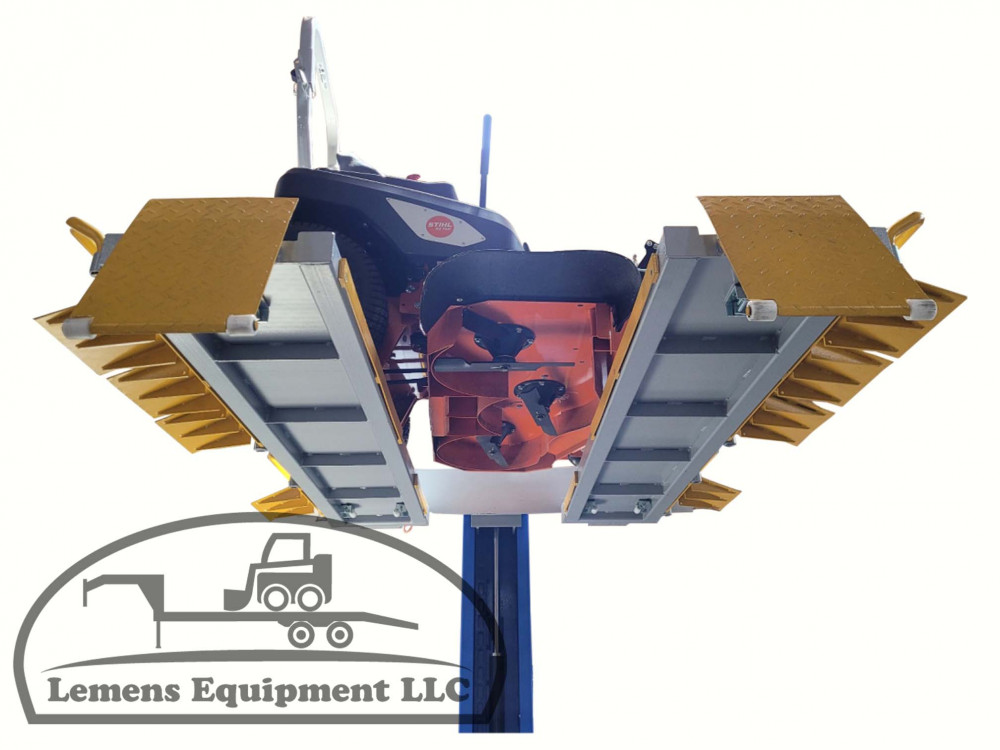

- Adjustable platforms provide undercarriage clearance to easily service most riding lawn mower decks, blades, and UTV/ATV engine service
- Easily adjust and secure platforms to desired widths using integrated ‘retractable’ nylon roller brackets and ‘quick release’ bolster pins

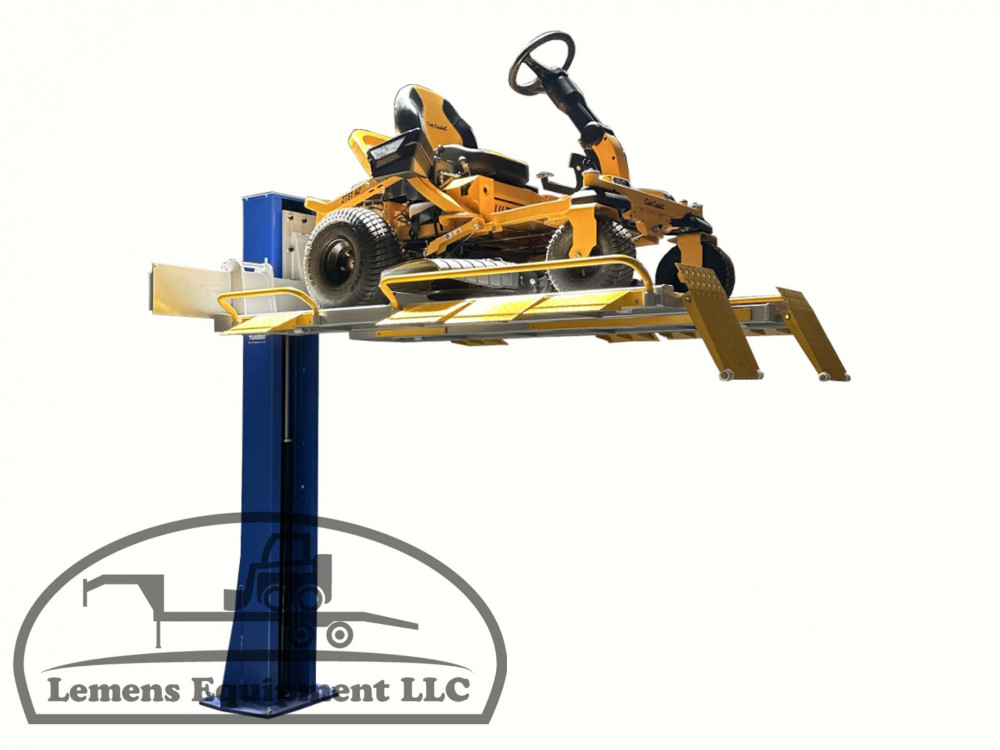

- Extended rise height for increased storage and service clearances

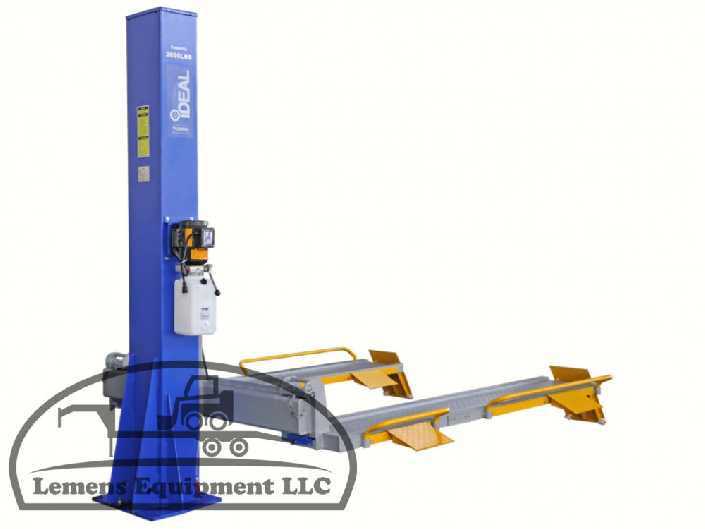

- Alternate power unit mounting to front, side, or rear of column
‘Quick removal’ outer wheel stop bars
- 8 each steel ‘quick adjust’ platform side ramps
- 2 each platform steel wheel stop ‘pivot ramps’ with nylon rollers
- Smooth and reliable electric /hydraulic operation with single point lock release
- Durable, high quality steel construction
- Low profile platform design
- 20 each locking height positions
- Durable powder-coat finish

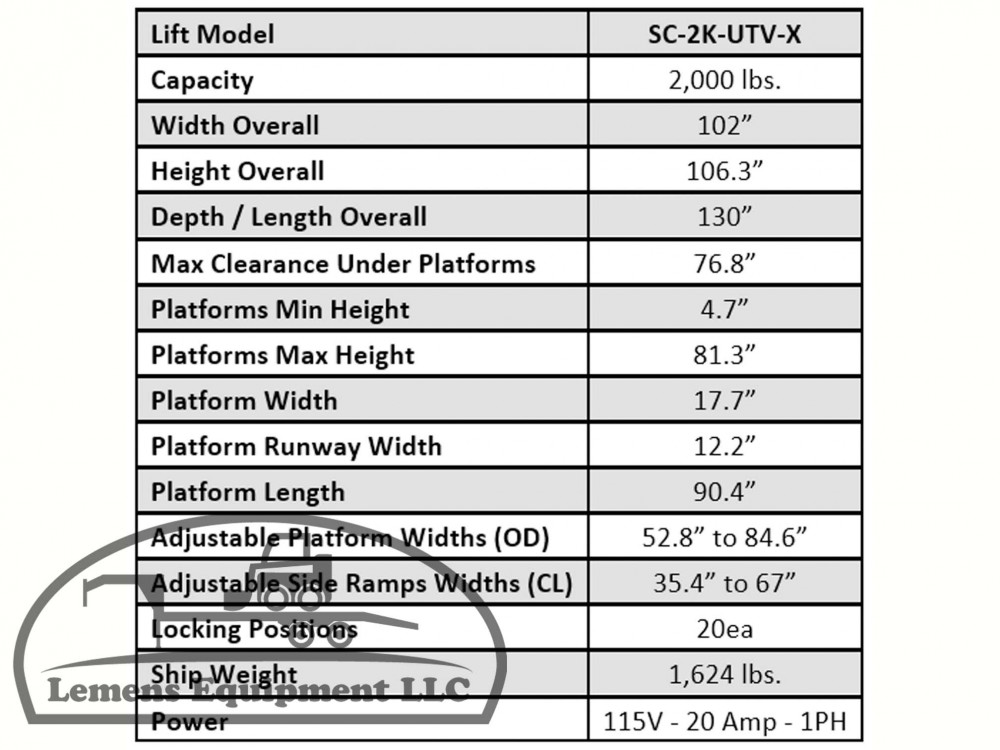

CONSTRUCTION

- Width overall: 102"
- Height overall: 106.3"
- Depth/length overall: 130"
- Max clearance under platforms: 76.8"
- Platforms minimum height: 4.7"
- Platforms maximum height: 81.3"
- Platform width: 17.7"
- Platform runway width: 12.2"
- Platform length: 90.4"
- Adjustable platform widths (OD): 52.8" to 84.6"
- Adjustable side ramps widths (CL): 35.4" to 67"
- Locking positions: 20 each
- Ship weight: 1,624 lbs
- Power: 115V - 20Amp - 1PH

WARRANTY

- 5 Year Structural Warranty On: Columns, Arms, Uprights, Swivel Pins, Legs, Carriages, Overhead Beam, Tracks, Cross Rails, and Top Rail Beam
- Limited One-Year Warranty: Tuxedo Distributors, LLC (Tuxedo) offers a limited one-year warranty to the original purchaser of Lifts and Wheel Service equipment in the United States and Canada. Tuxedo will replace, without charge, any part found defective in materials or workmanship under normal use, for a period of one year after purchase.
-The purchaser is responsible for all shipping charges. This warranty does not apply to equipment that has been improperly installed or altered or that has not been operated or maintained according to specifications

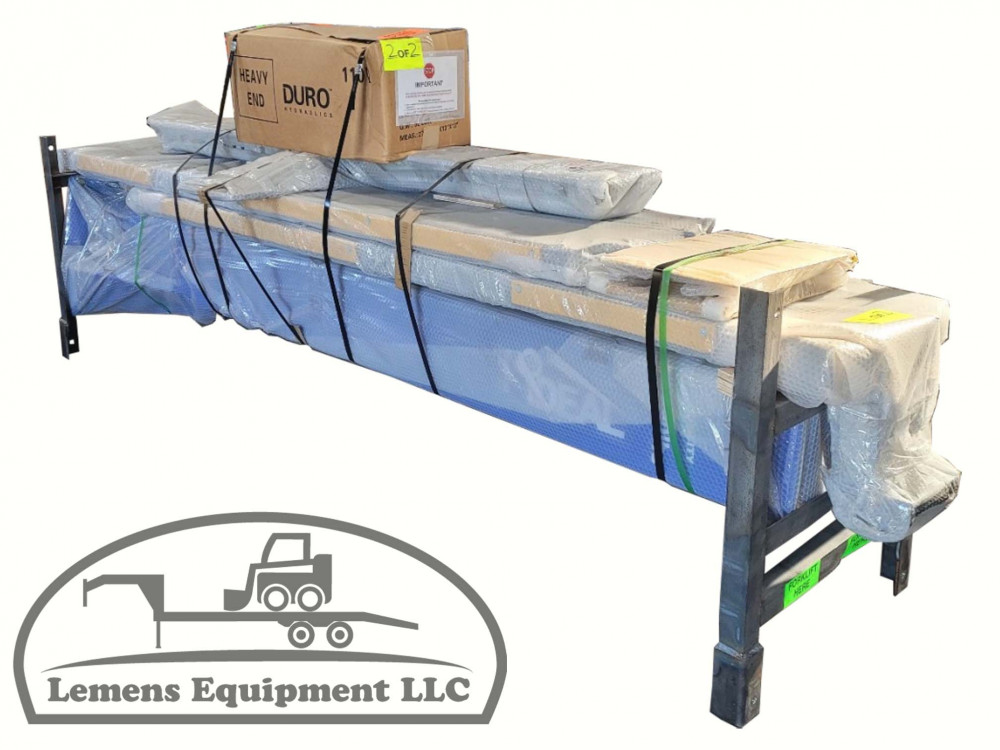

SHIPPING
