We have been running these lifts for a few years with no issues at Lemens Equipment LLC. We have a comparable, more expensive Challenger lift here that we do not like near as much as these tuxedo/kernel style lifts. We keep this lift in stock here in Eldon MO, it is not being dropped shipped from a warehouse.

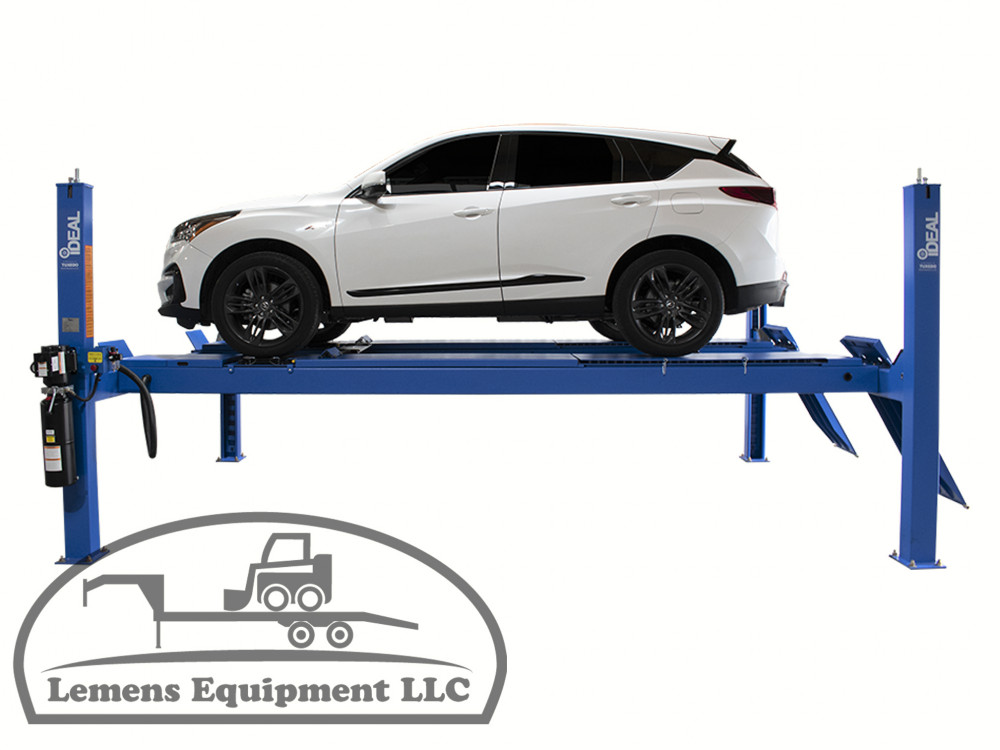

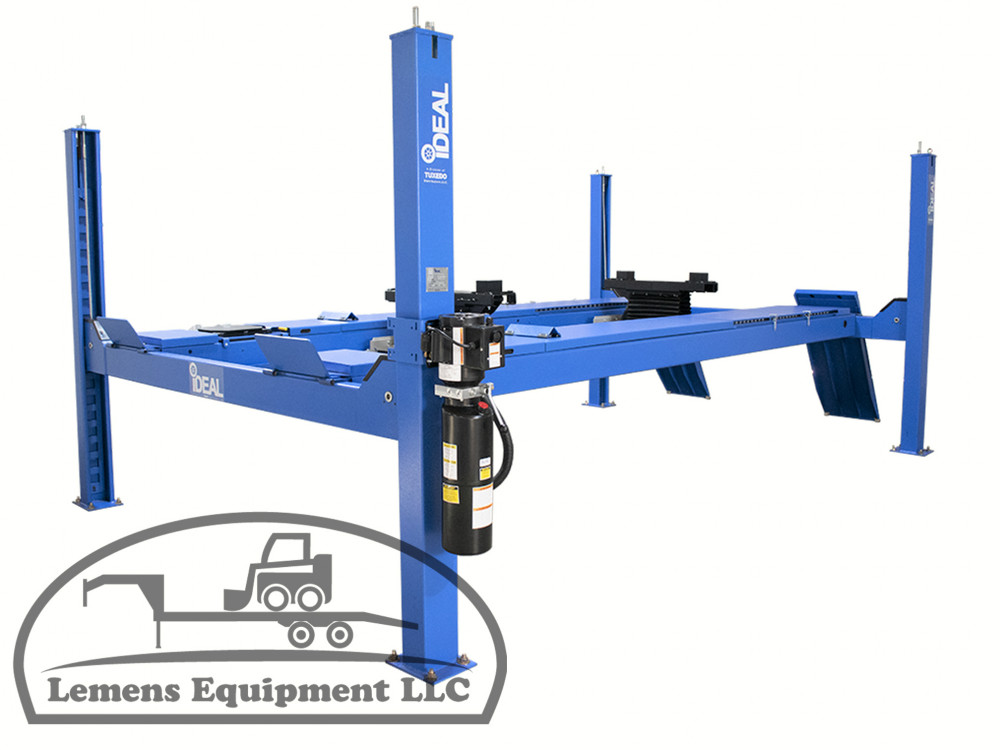

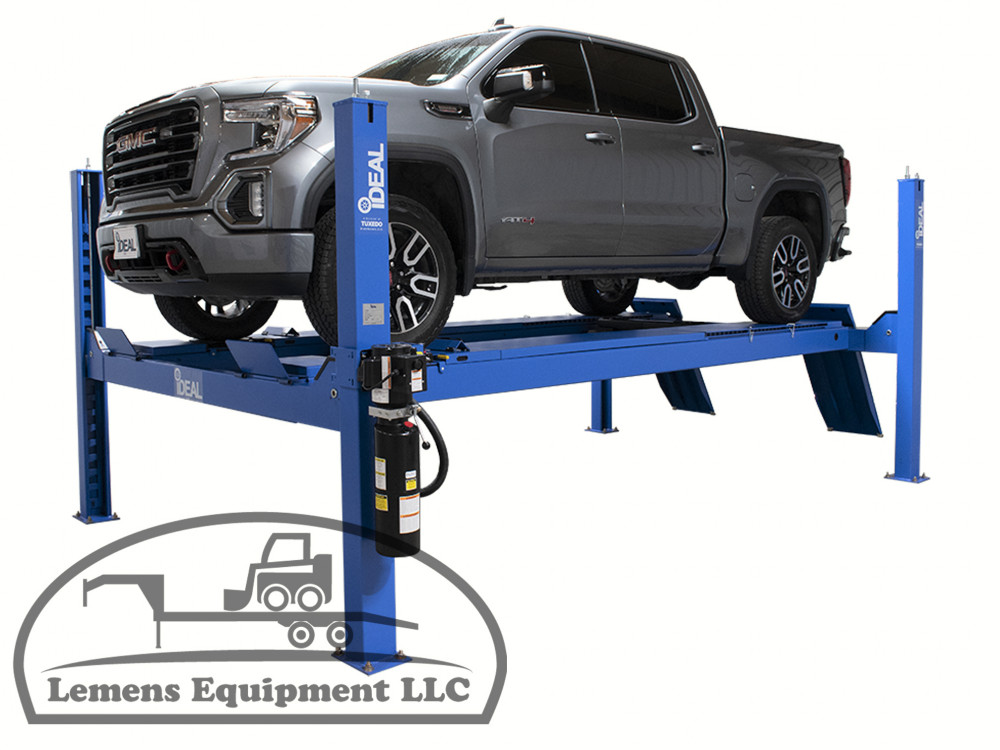

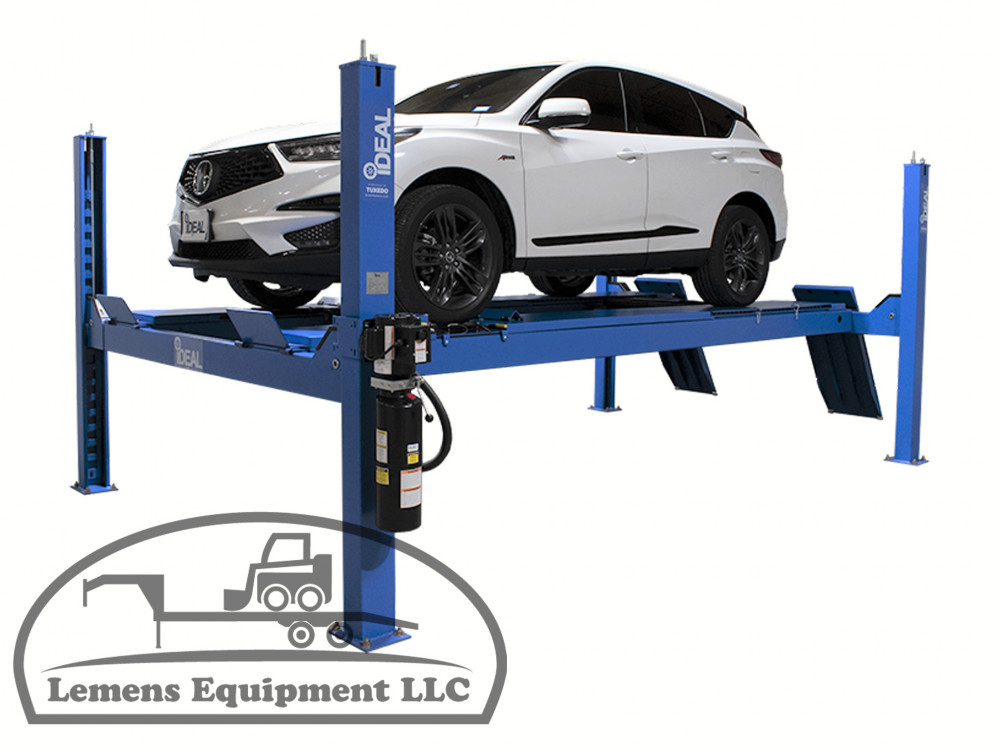

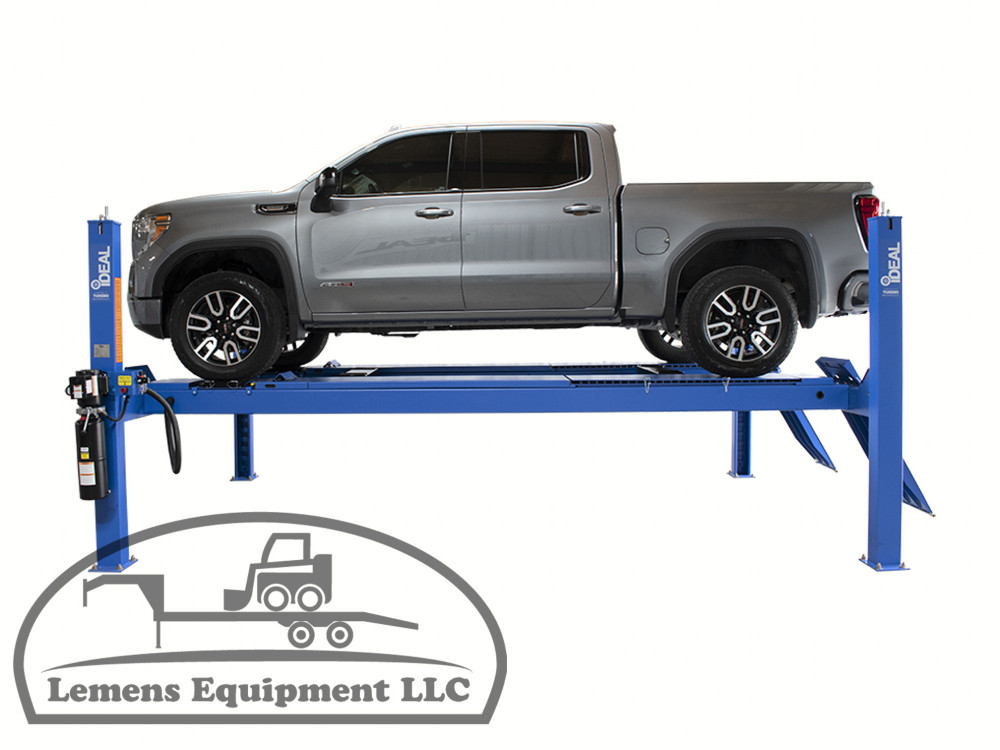

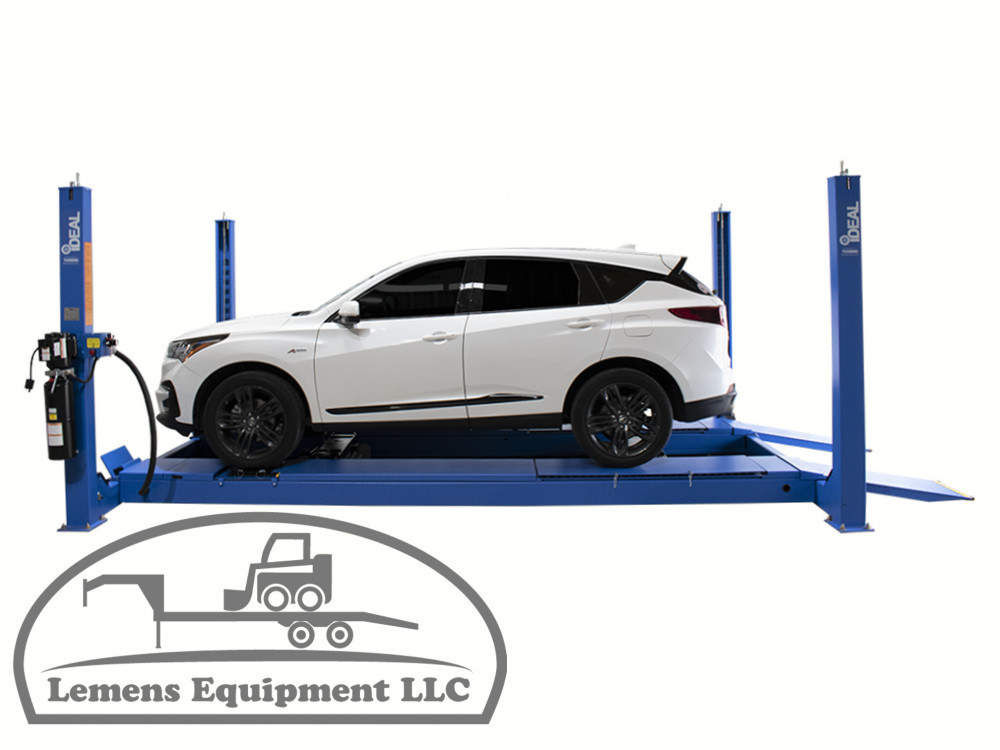

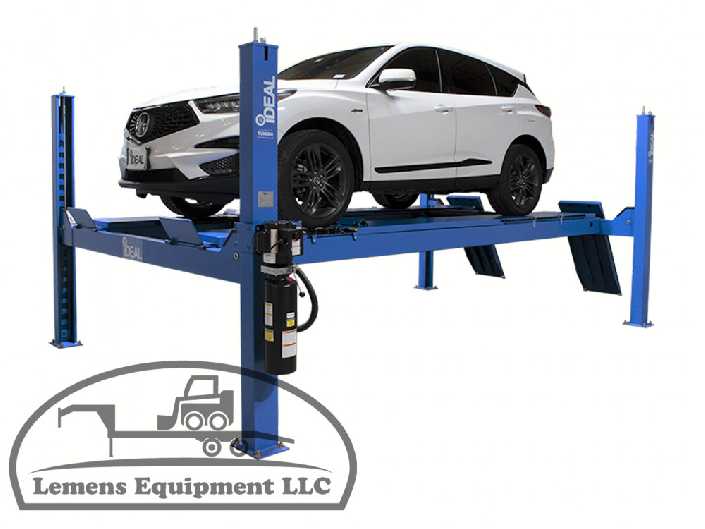

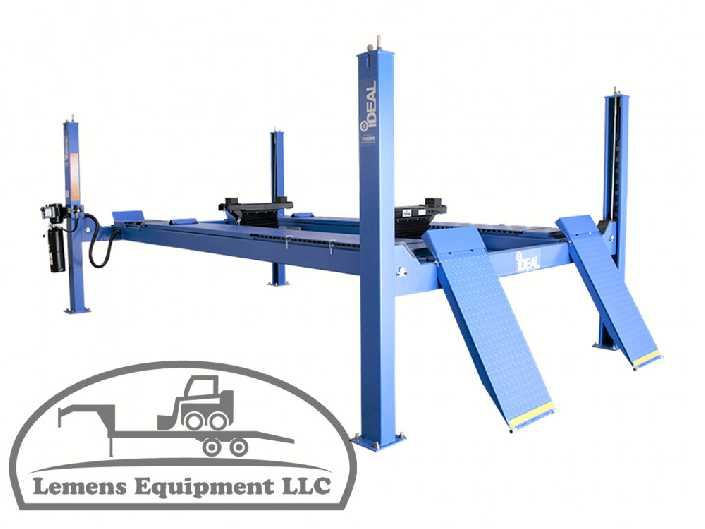

The iDEAL FP14KAC-X 14,000 lb. four post commercial alignment lift is a high-performance closed front, cable pull vehicle lift designed for cars, SUVs, vans & trucks. The FP14KAC-X alignment lift comes standard with full width rear slip plates, turntables, roll-back spacers and internal air-line kit, while also applying the latest in design & safety features, such as narrow & wide runway mount positions, extended rise height, concealed hydraulic / mechanical cable lift system with slack cable safety devices and durable pulley & shaft design incorporating convenient grease fittings to extended life of the lift.

Easy lift operation is provided with single point pneumatic lock release & high-quality DURO power unit, while providing additional safety & protection with self-chocking ramps and included wheel stops. The iDEAL FP14KAC-X modular design also provides the flexibility to extend the runways for aligning or servicing longer vehicles! The standard powder coat finish, 20" wide runways, adjustable lock stops for easy runway leveling and optional power unit mount positions complete the package for a premium, high quality alignment lift, all at an unmatched value!

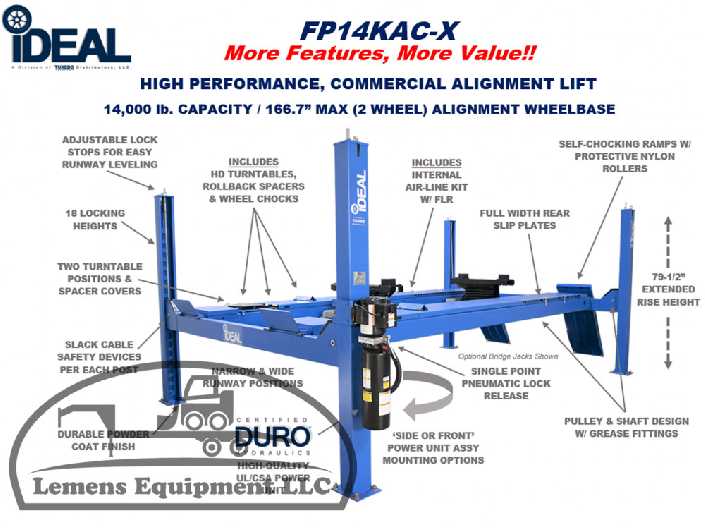

GENERAL

-Capacity: 14,000 lbs
-High performance commercial alignment lift
-Durable, high quality cable lift system
-Extended rise height
-Bolt-on runway alignment kit
-166.7" max alignment wheelbase (2 wheel)
-157" max alignment wheelbase (4 wheel)
-182.5" max service wheelbase
-18 locking height positions
-Full width rear wheel slip plates
-Two turntable positions w/ spacer covers
-20" wide runways
-Narrow & wide runway mounting positions
-Single point pneumatic lock release
-Fully adjustable lock stops for easy leveling
-Slack cable safety devices

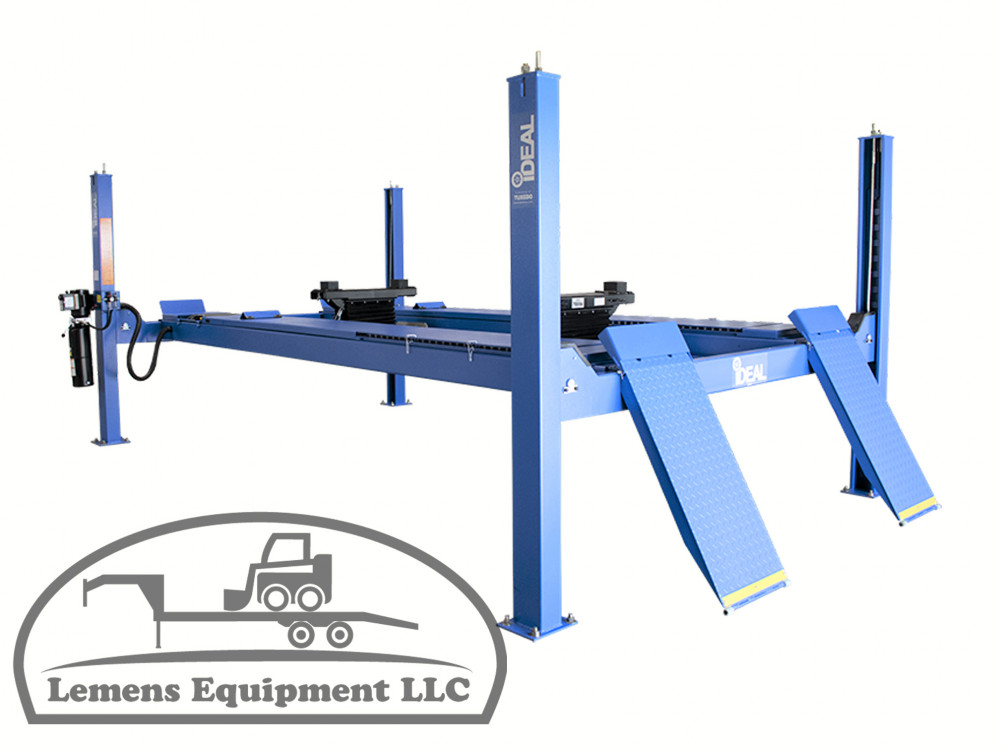

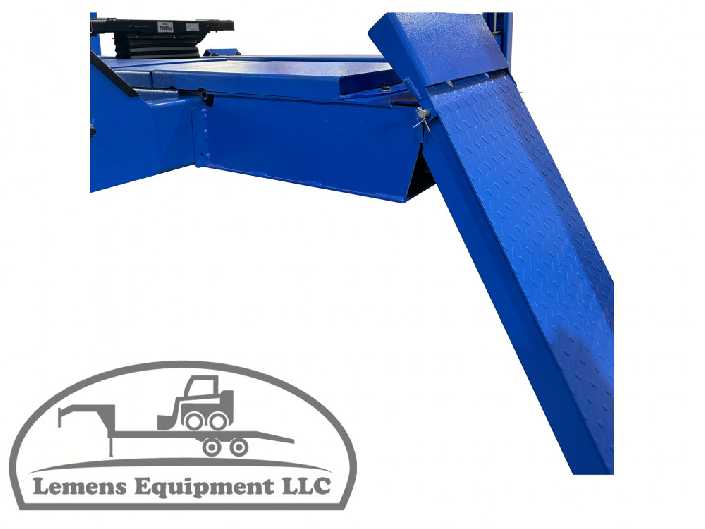

-Self-chocking approach ramps w/ nylon rollers

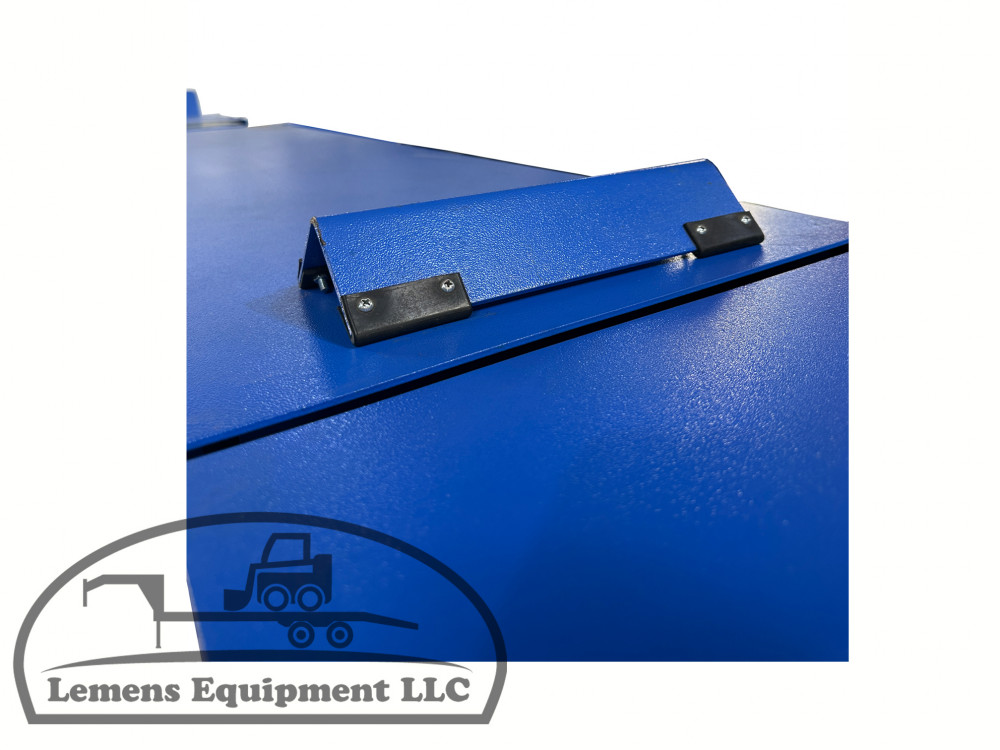

-Wheel chocks (1 pair)
-Durable powder coat finish

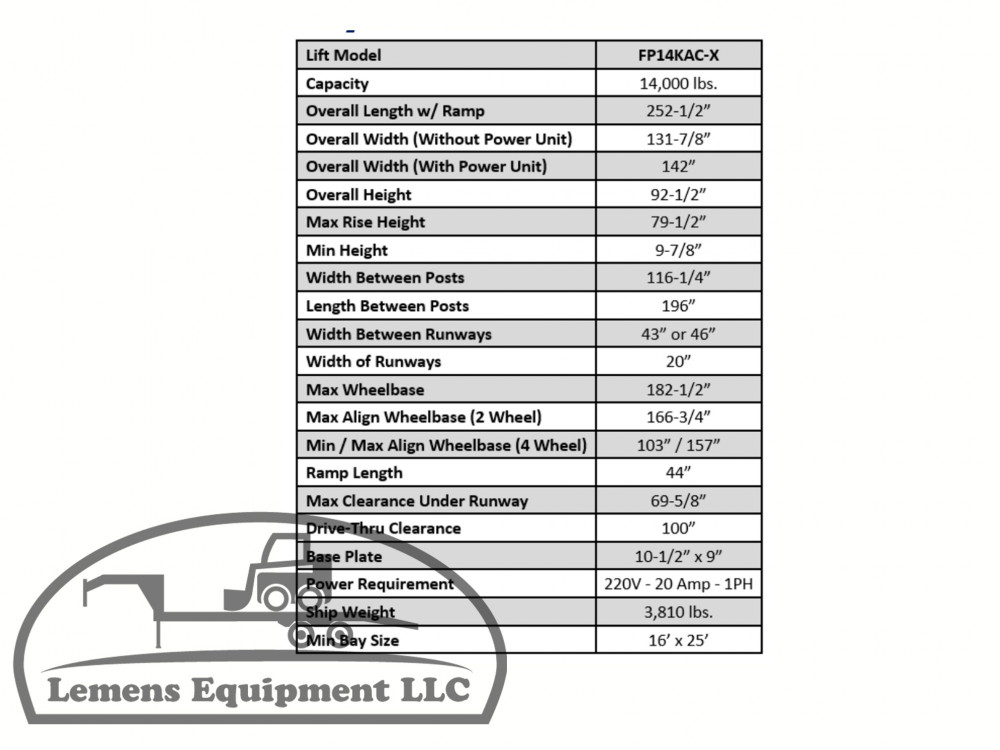

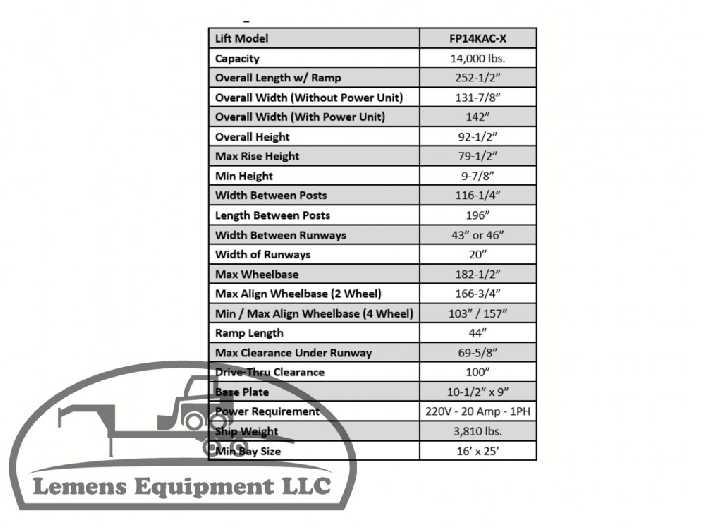

CONSTRUCTION

-Overall Length w/ Ramp: 252-1/2"
-Overall Width (without power unit): 131-7/8"
-Overall Width (with power unit): 142"
-Overall Height: 92-1/2"
-Max Rise Height: 79-1/2"
-Min Height: 9-7/8"
-Width Between Posts: 116-¼"
-Length Between Posts: 196"
-Width Between Runways: 43" or 46"
-Width of Runways: 20"
-Max Wheelbase: 182-1/2"
-Max Align Wheelbase (2 wheel): 166-3/4"
-Min/Max Align Wheelbase (4 wheel): 103"/157"
-Ramp Length: 44"
-Max Clearance Under Runway: 69-5/8"
-Drive-Thru Clearance: 100"
-Base Plate: 10-1/2" x 9"
-Power Requirement: 220V - 20 Amp - 1PH
-Ship Weight: 3,810 lbs
-Min Bay Size: 16’ x 25’

INCLUDED ACCESSORIES

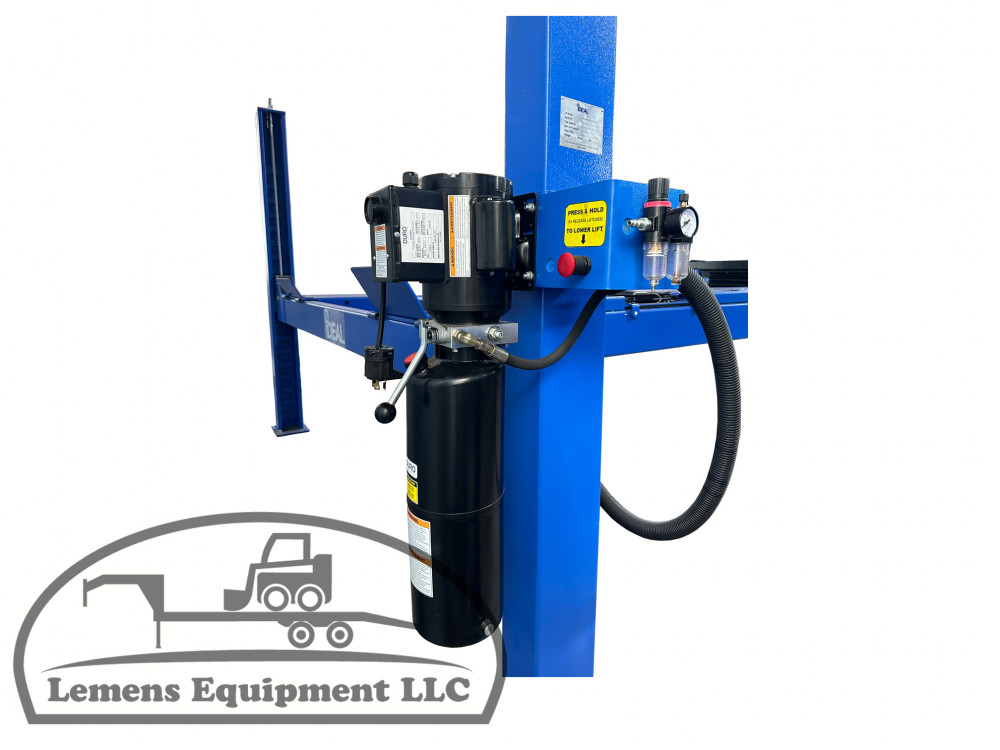

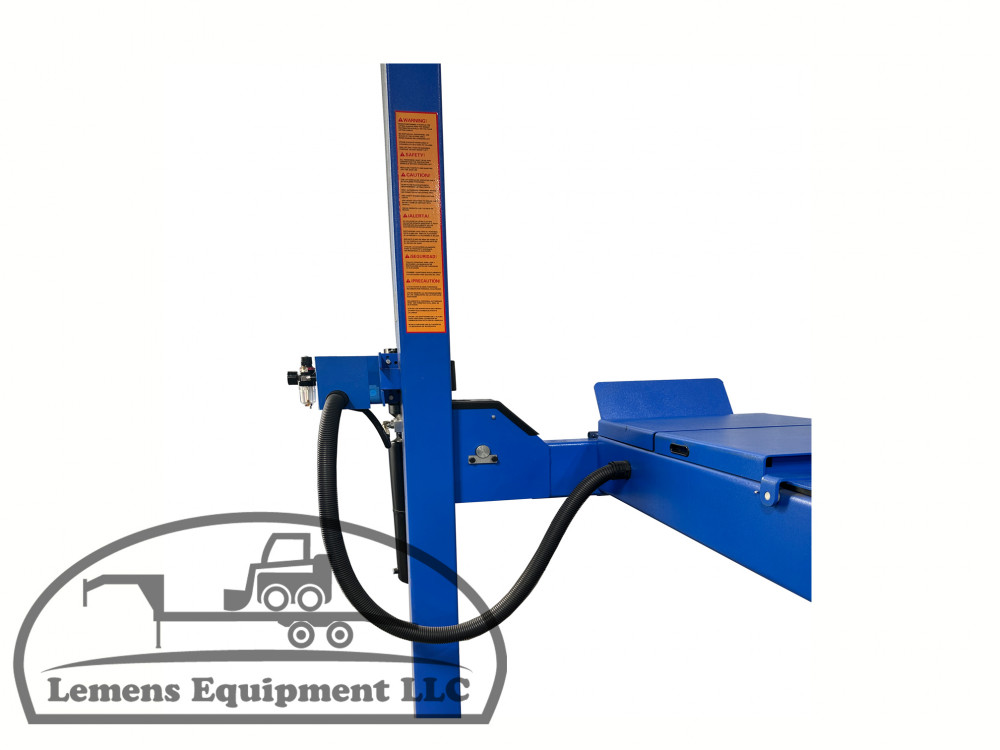

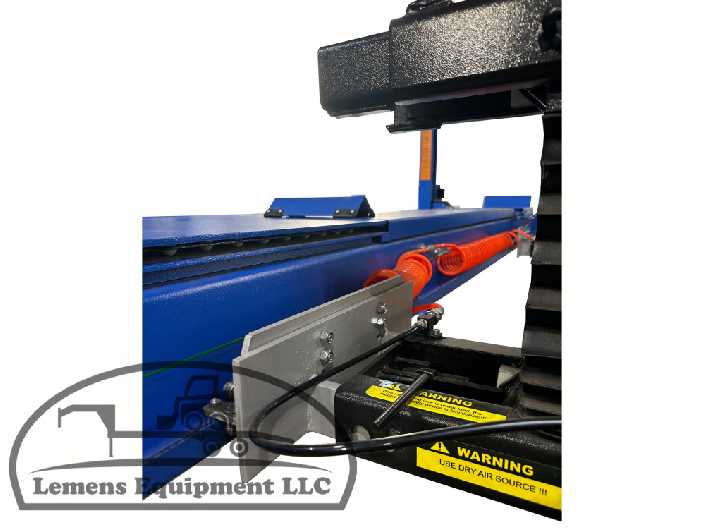

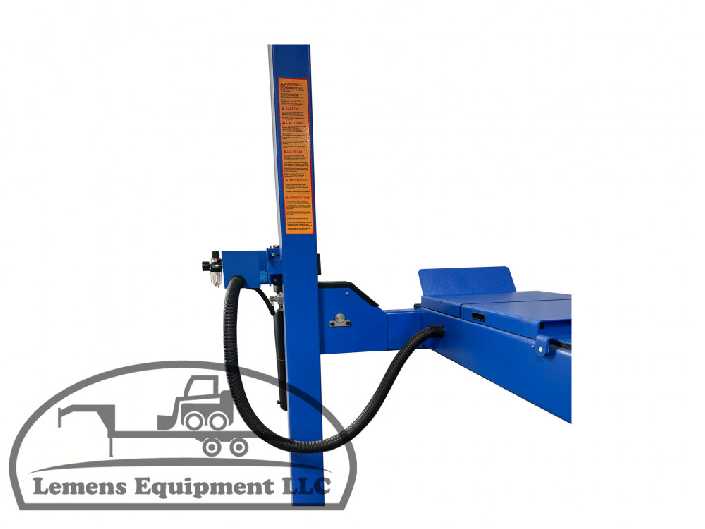

-Internal airline kit with filter, lubricator, and regulator

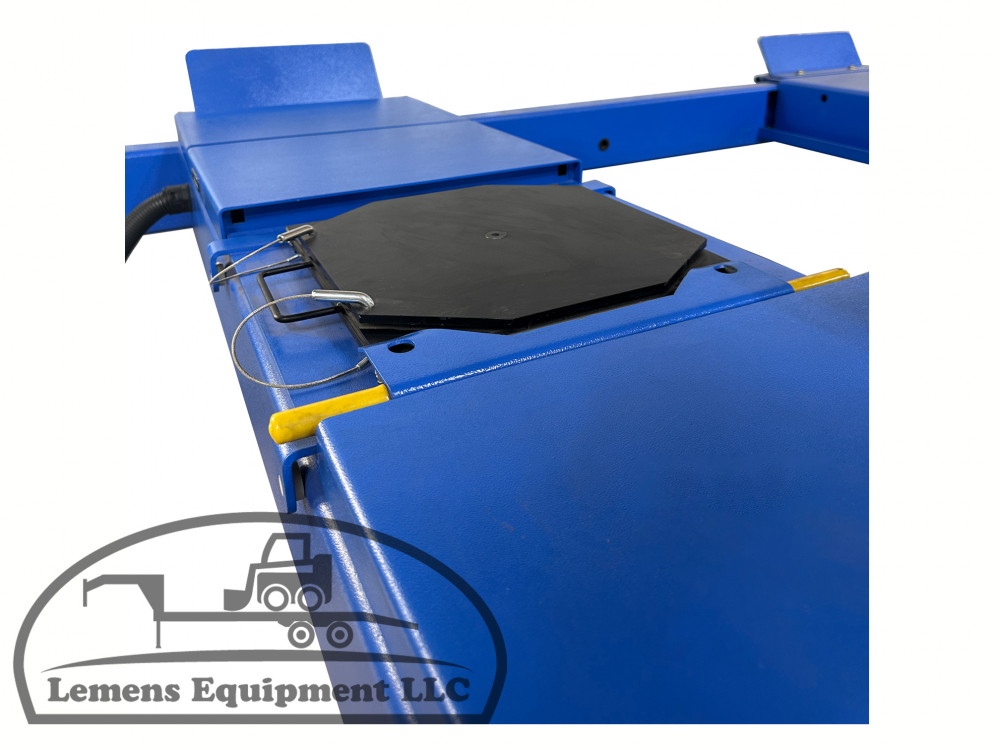

-HD carbon steel turntables (4.5k capacity each)
-Rollback spacers for HD turntables

OPTIONAL ACCESSORIES

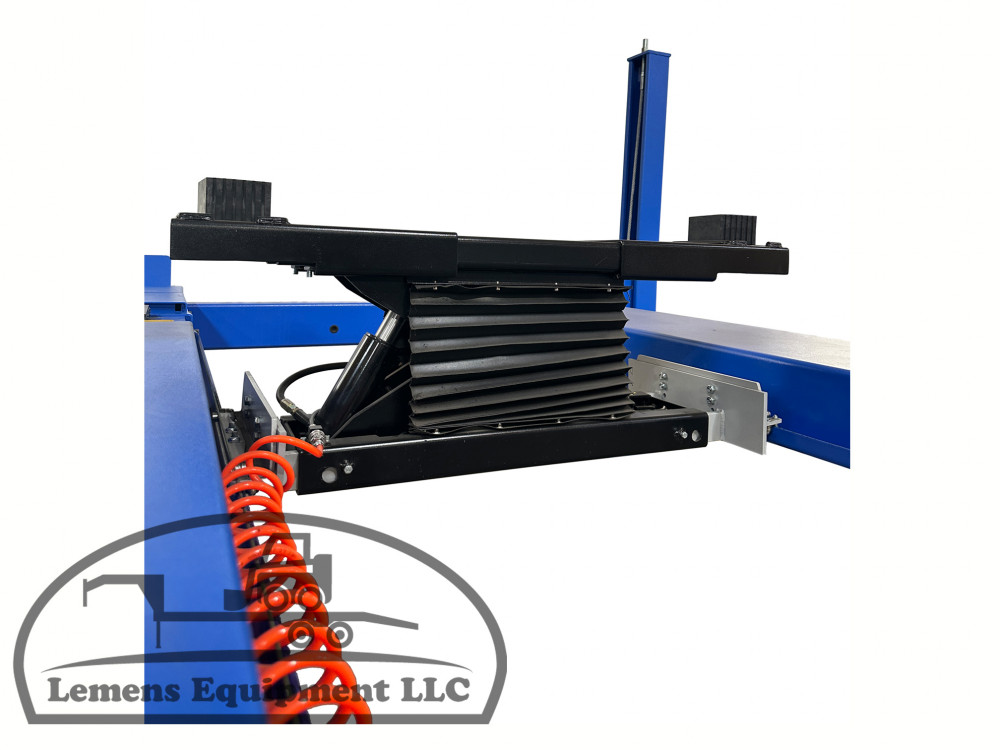

-7k Rolling Air Jack
-24" Runway Extension Kit
-24" Extension Alignment Spacer Kit

WARRANTY

-5 Year Structural Warranty On: Columns, Arms, Uprights, Swivel Pins, Legs, Carriages, Overhead Beam, Tracks, Cross Rails, and Top Rail Beam
-Limited One-Year Warranty: Tuxedo Distributors, LLC (Tuxedo) offers a limited one-year warranty to the original purchaser of Lifts and Wheel Service equipment in the United States and Canada. Tuxedo will replace, without charge, any part found defective in materials or workmanship under normal use, for a period of one year after purchase.
-The purchaser is responsible for all shipping charges. This warranty does not apply to equipment that has been improperly installed or altered or that has not been operated or maintained according to specifications

SHIPPING

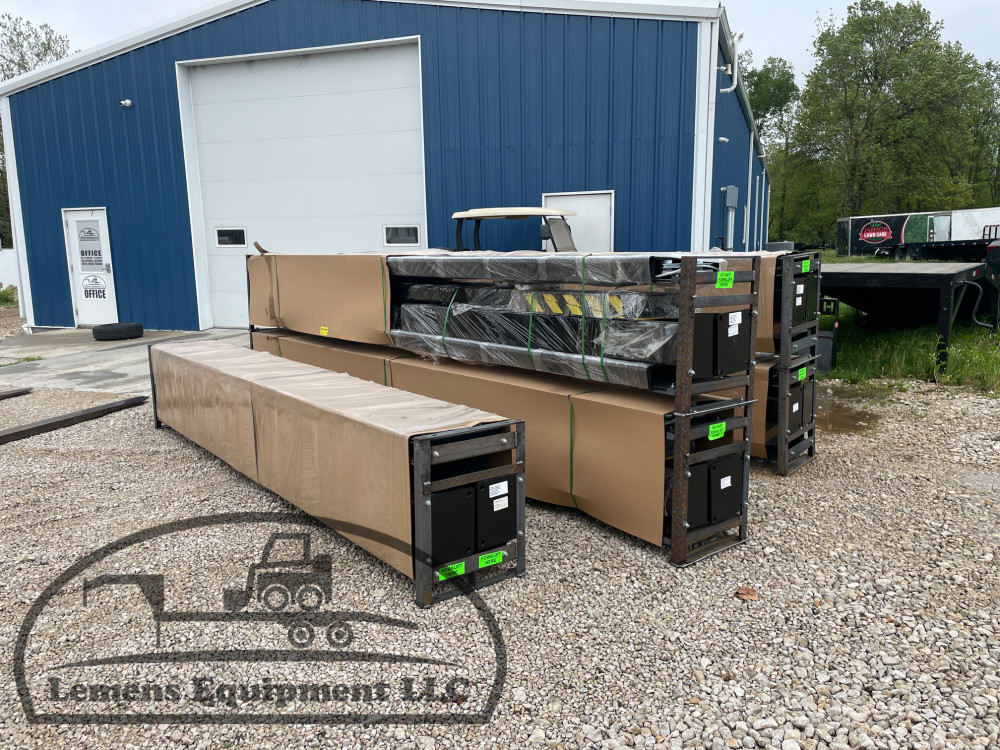

-All in stock lifts can be picked up here at Lemens Equipment LLC in Eldon MO. Please give us a day's notice prior to coming so we can get it ready for you.
-Lifts can be drop shipped directly to you, if you have a method to unload it at your destination. They can also be shipped here and picked up from us.
-Freight is cheaper per item when we buy multiple lifts at a time on a Hotshot. That is why the shipping charge on our in stock lifts is cheaper then out of stock lifts that would ship by themselves via LTL.
