We have been running these lifts for a few years with no issues at Lemens Equipment LLC. We have a comparable, more expensive Challenger lift here that we do not like near as much as these tuxedo/kernel style lifts. We keep this lift in stock here in Eldon MO, it is not being dropped shipped from a warehouse.

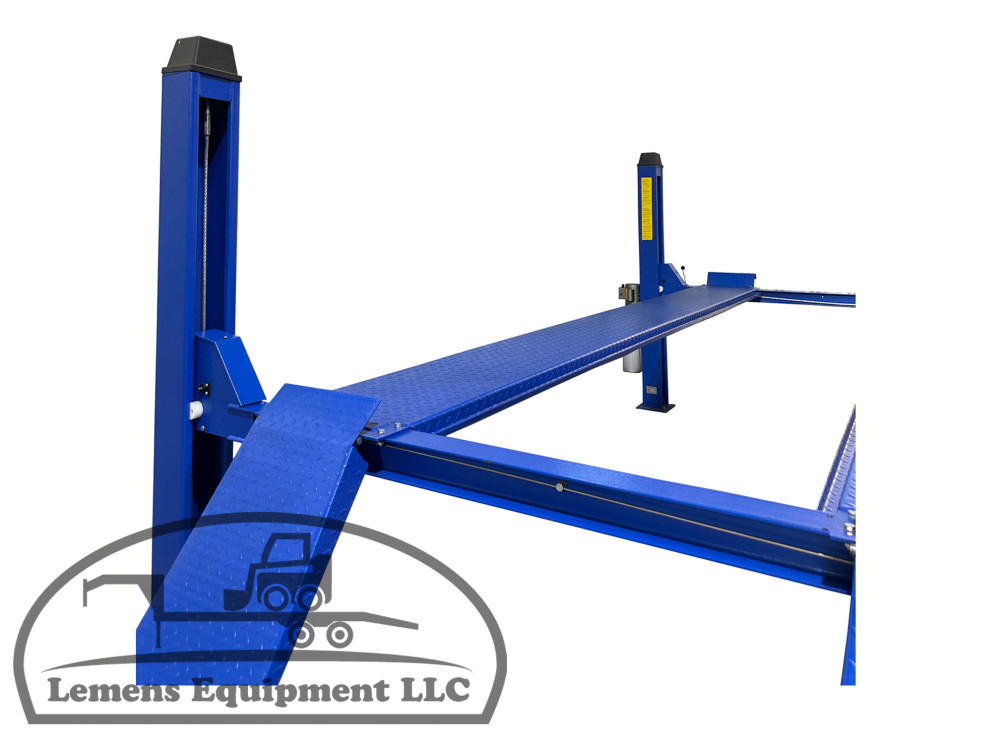

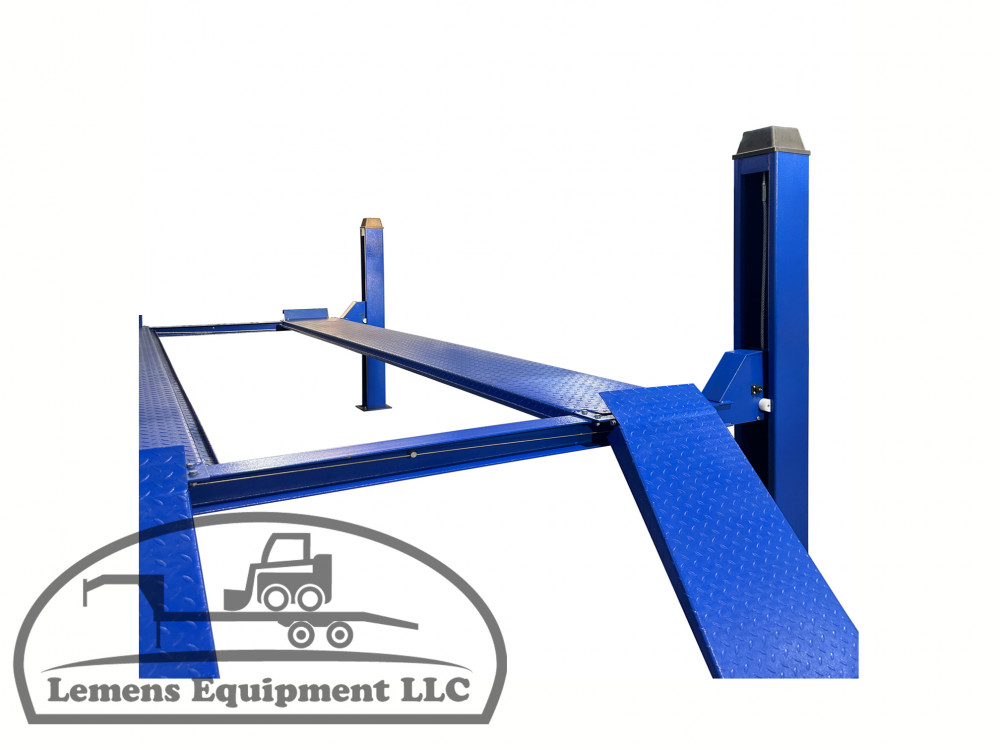

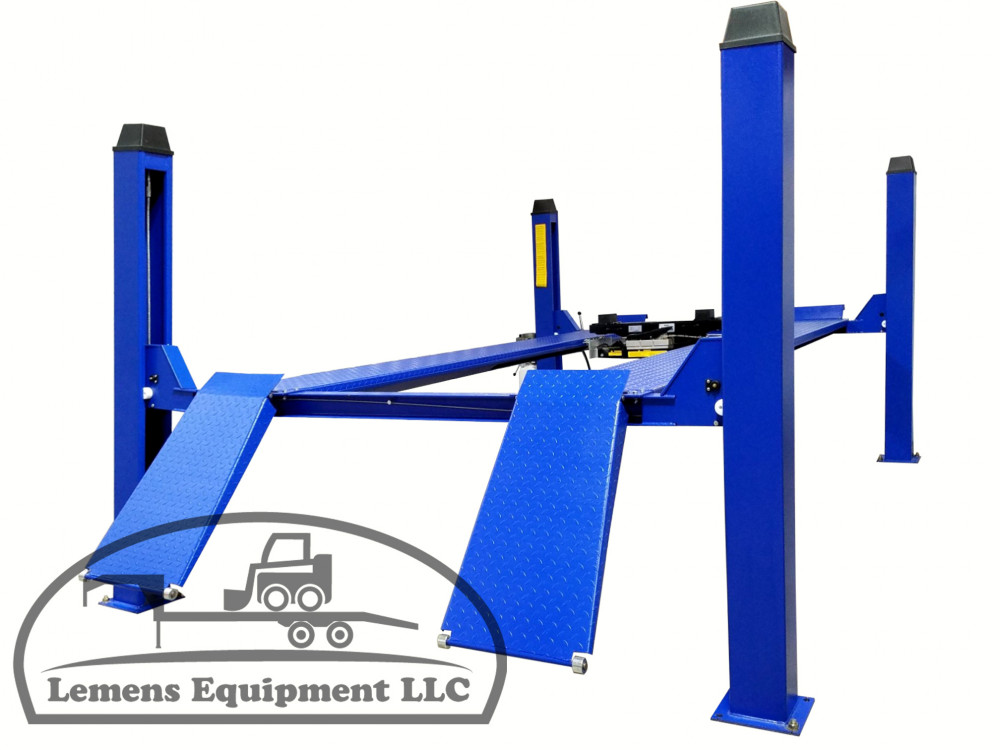

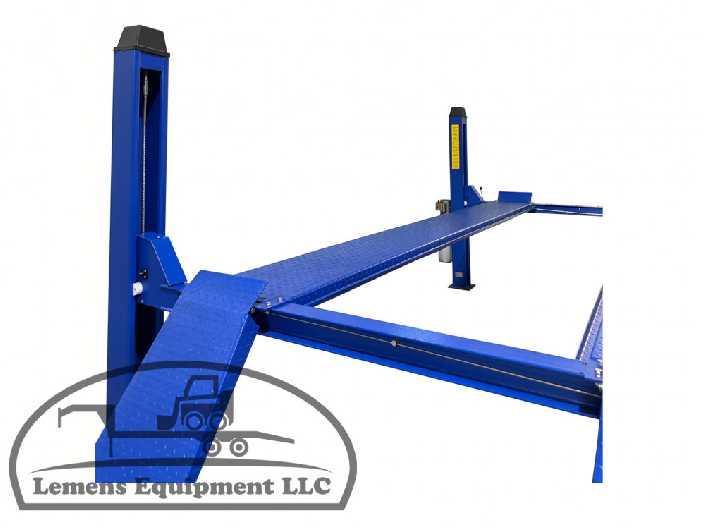

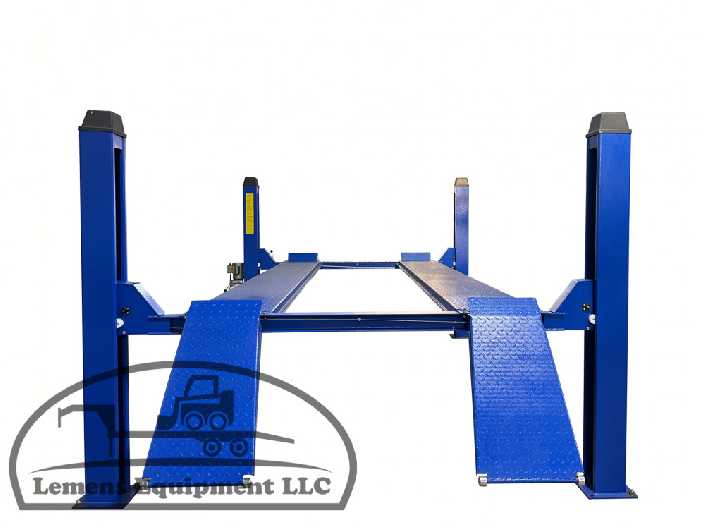

Cable driven four post lift provides 12,000 lb. lifting capacity. No power beam; Cylinder stowed under single piece diamond plate track. Simple, lever release system and redundant safety locks.

GENERAL

-Capacity: 12,000 lbs
-Cable driven

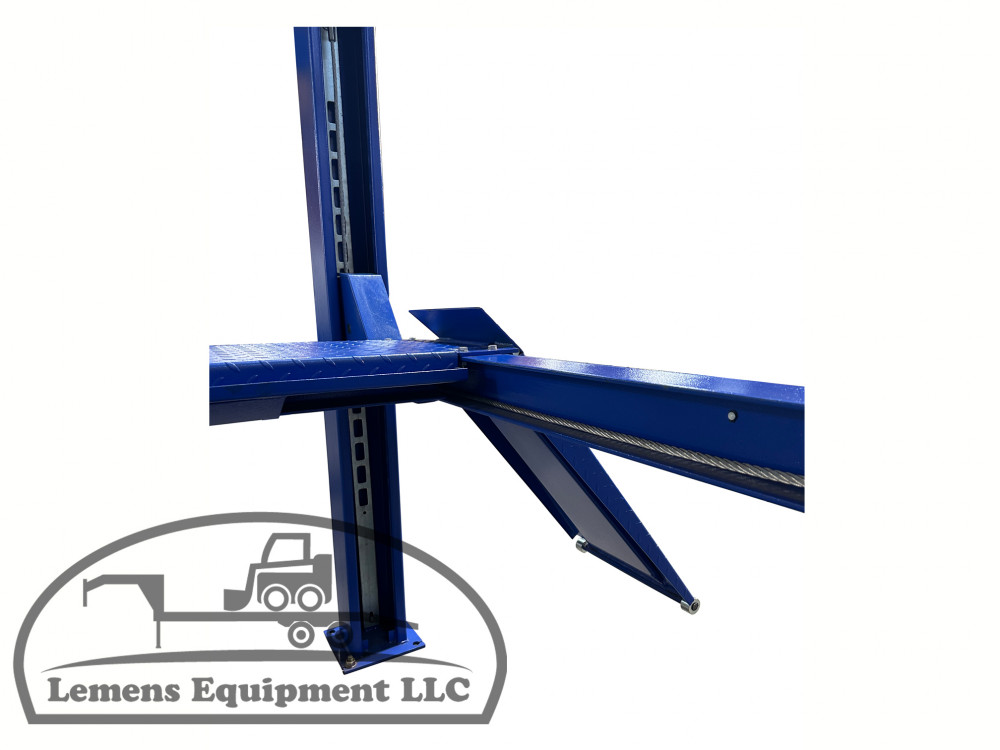

-Slack cable safety
-176" max wheelbase
-19" runways

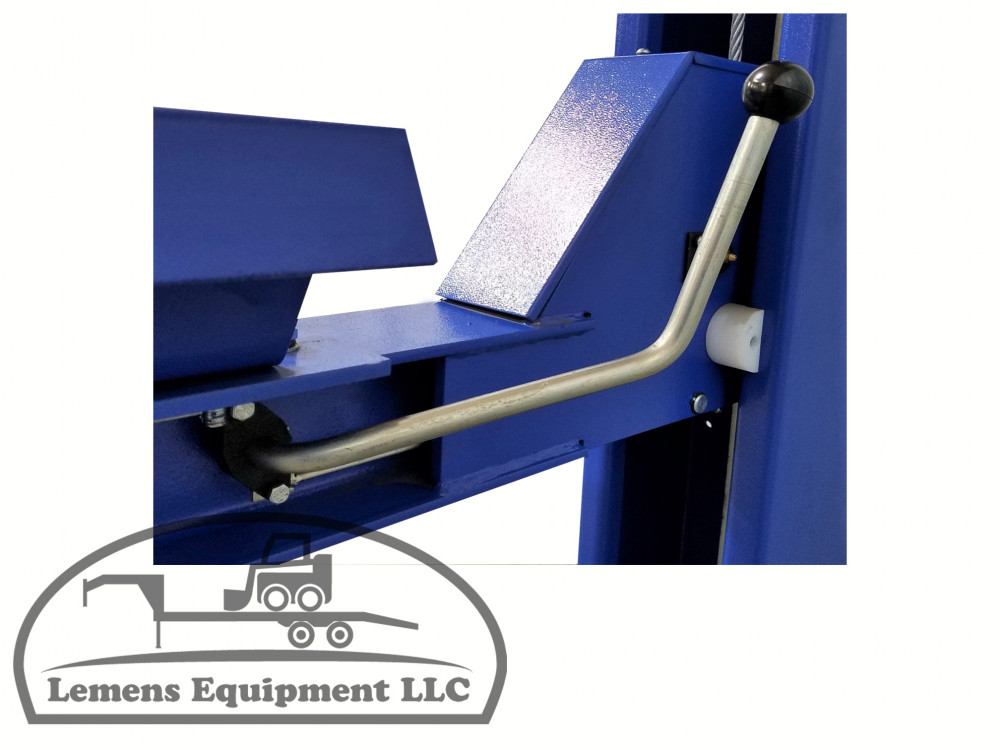

-Single point manual lock release

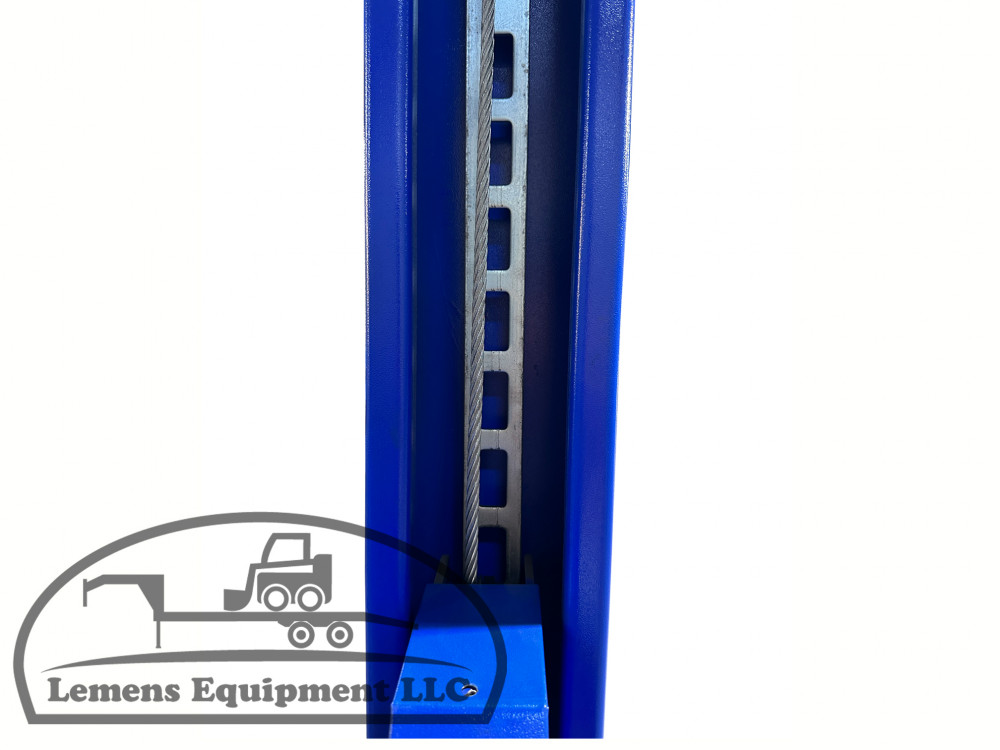

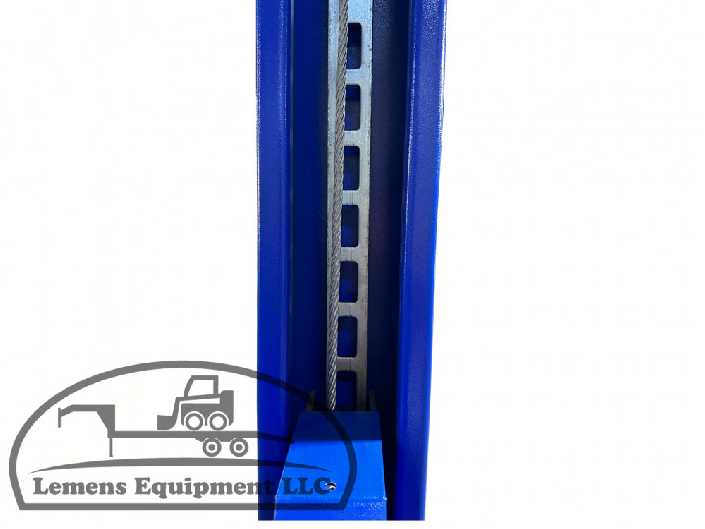

-Adjustable locking positions
-No overhead obstructions
-Powder coated paint finish

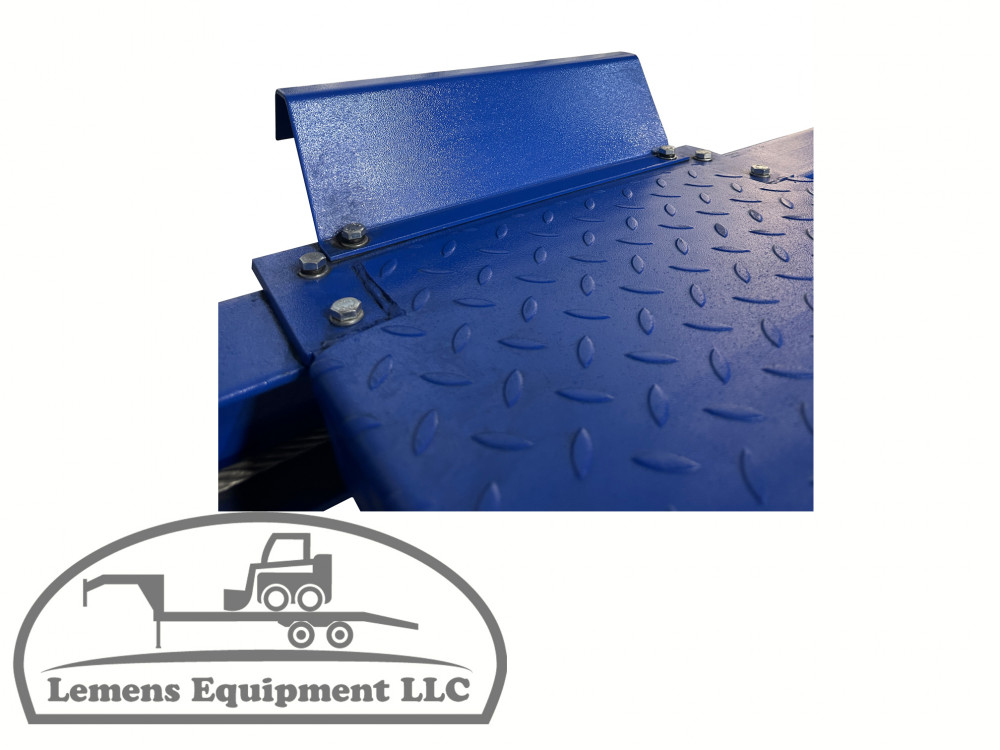

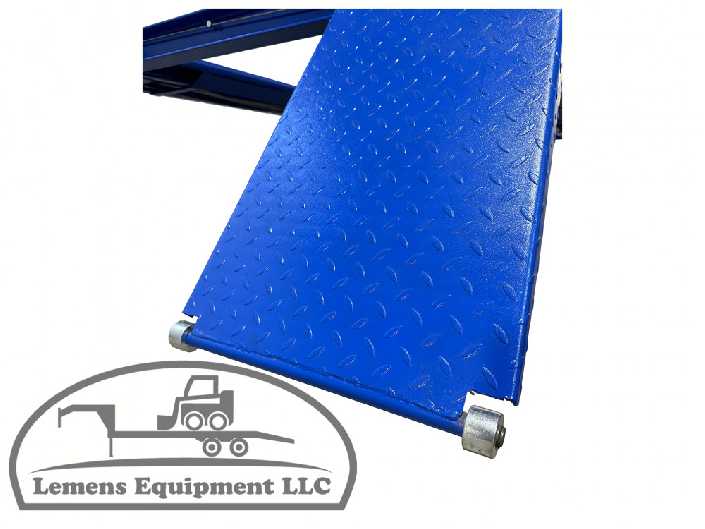

-Non-skid diamond plate runways

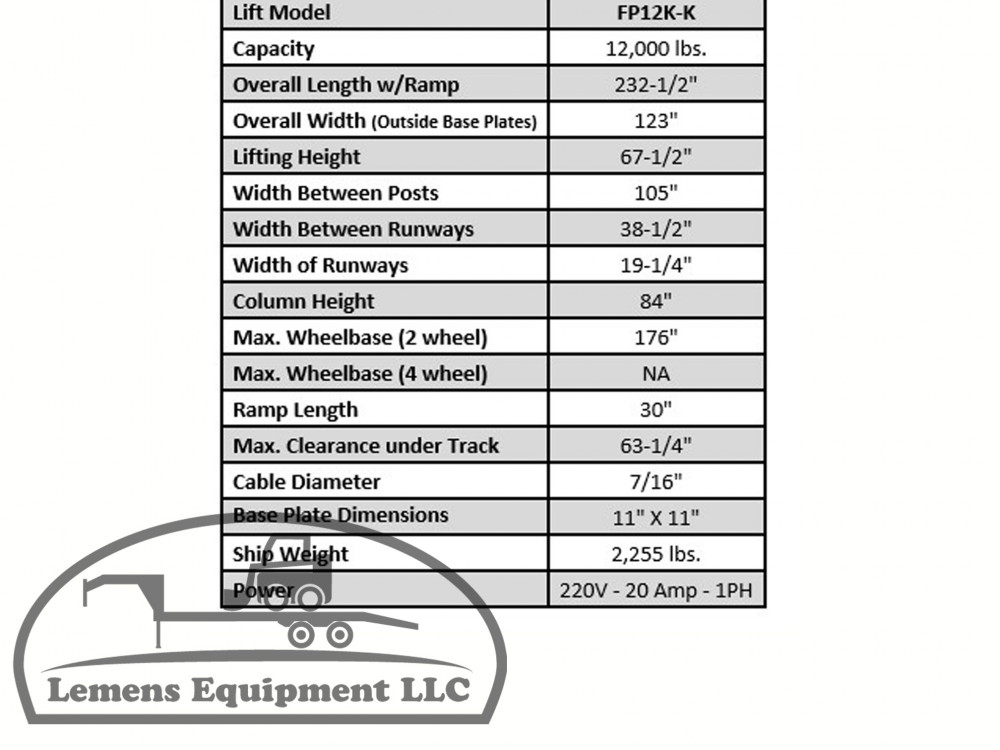

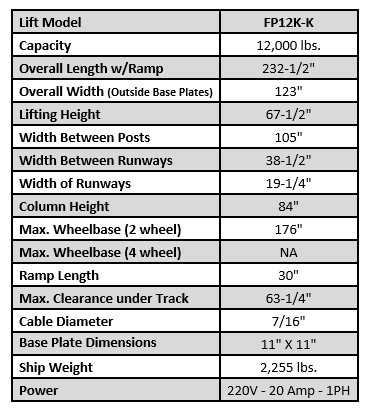

CONSTRUCTION

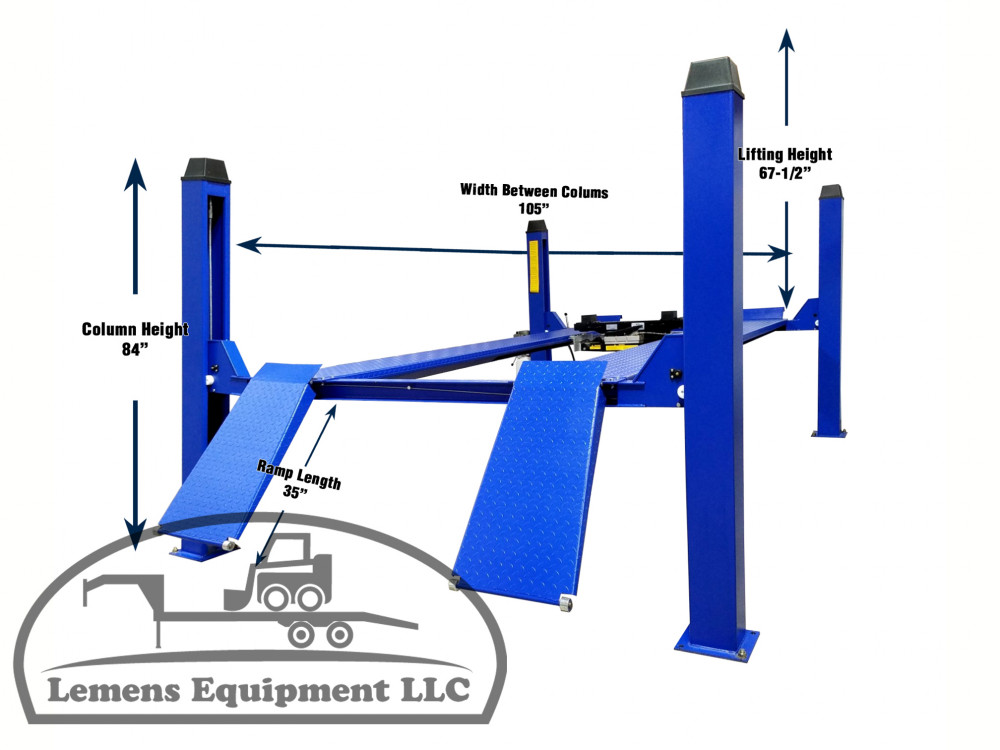

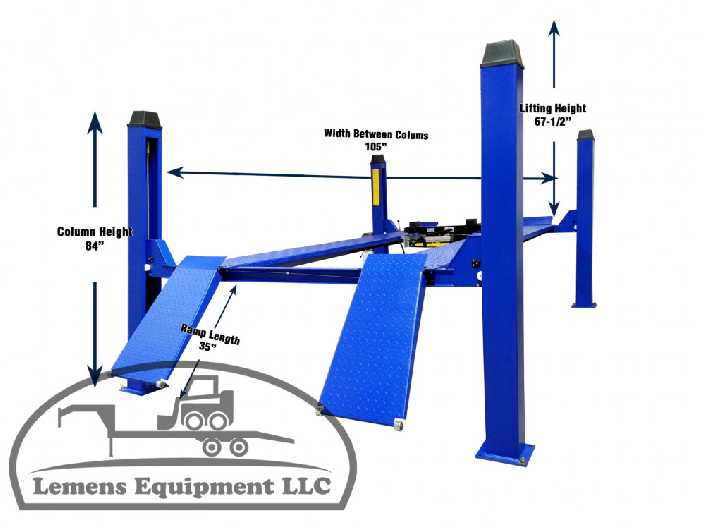

-Overall Length w/ Ramp: 232-1/2"
-Overall Width (outside base plates): 123"
-Lifting Height: 67-1/2"
-Width Between Posts: 105"
-Width Between Runways: 38-1/2"
-Width of Runways: 19-¼"
-Column Height: 84"
-Max. Wheelbase (2 wheel): 176"

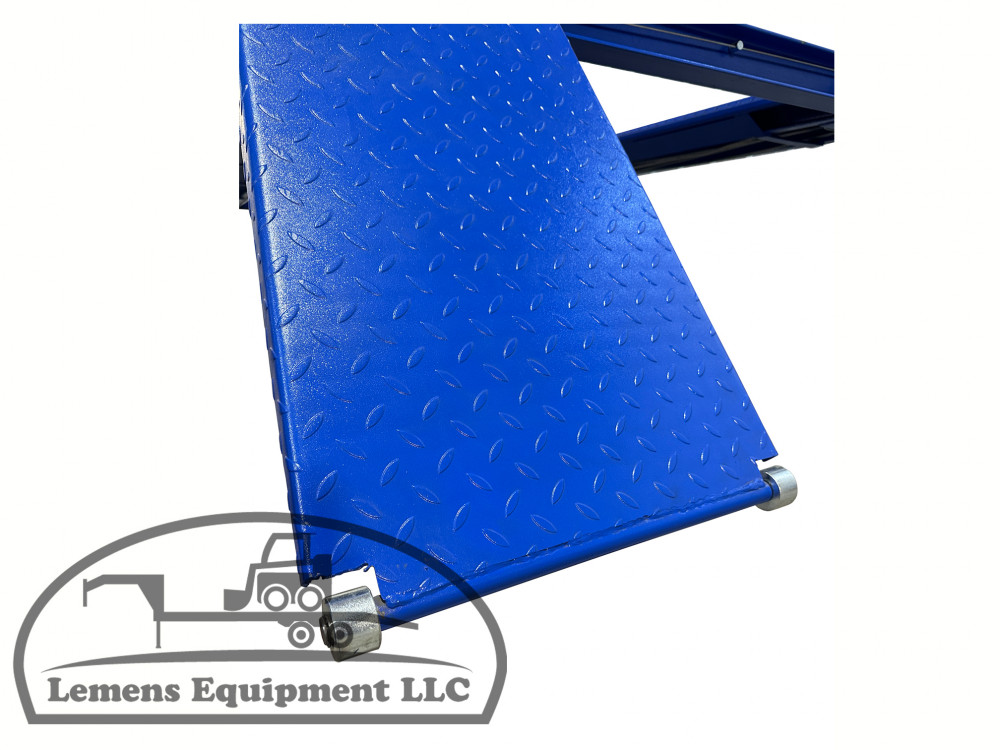

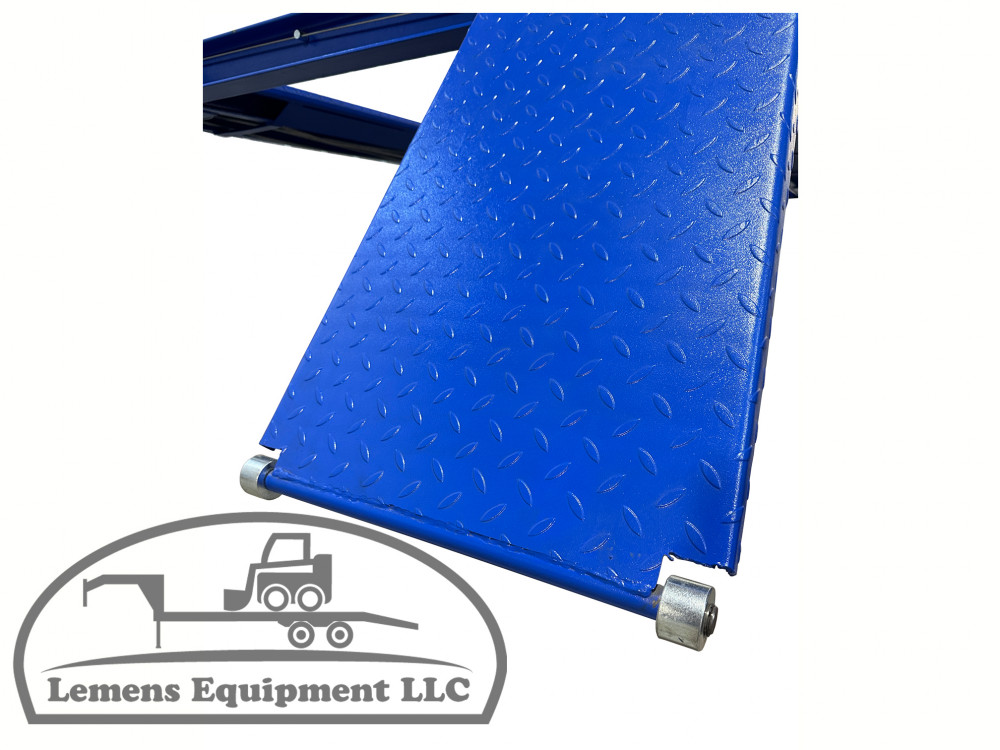

-Ramp Length: 30"
-Max. Clearance under Track: 63-¼"
-Cable Diameter: 7/16"
-Base Plate Dimensions: 11" x 11"
-Ship Weight: 2,255 lbs
-Power: 220V - 20 Amp - 1PH

OPTIONAL

-Add-on accessory: 6k or 8k Rolling Air Jack

WARRANTY

-5 Year Structural Warranty On: Columns, Arms, Uprights, Swivel Pins, Legs, Carriages, Overhead Beam, Tracks, Cross Rails, and Top Rail Beam
-Limited One-Year Warranty: Tuxedo Distributors, LLC (Tuxedo) offers a limited one-year warranty to the original purchaser of Lifts and Wheel Service equipment in the United States and Canada. Tuxedo will replace, without charge, any part found defective in materials or workmanship under normal use, for a period of one year after purchase.
-The purchaser is responsible for all shipping charges. This warranty does not apply to equipment that has been improperly installed or altered or that has not been operated or maintained according to specifications

SHIPPING

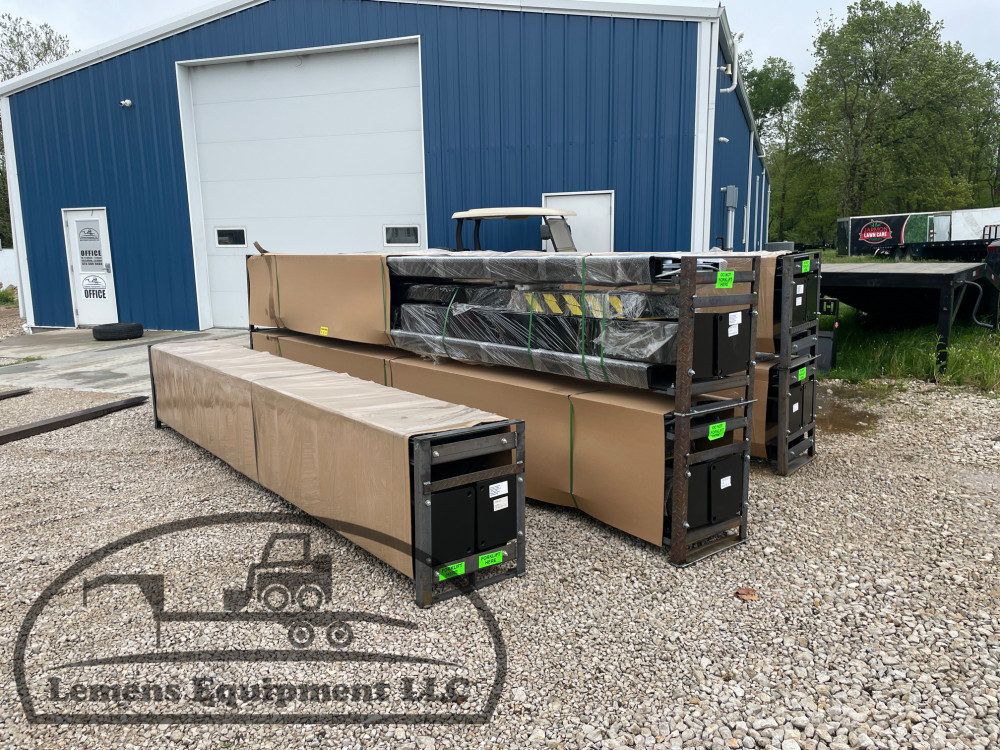

-All in stock lifts can be picked up here at Lemens Equipment LLC in Eldon MO. Please give us a day's notice prior to coming so we can get it ready for you.
-Lifts can be drop shipped directly to you, if you have a method to unload it at your destination. They can also be shipped here and picked up from us.
-Freight is cheaper per item when we buy multiple lifts at a time on a Hotshot. That is why the shipping charge on our in stock lifts is cheaper then out of stock lifts that would ship by themselves via LTL.
