We have been running these lifts for a few years with no issues at Lemens Equipment LLC. We have a comparable, more expensive Challenger lift here that we do not like near as much as these tuxedo/kernel style lifts. We keep this lift in stock here in Eldon MO, it is not being dropped shipped from a warehouse.

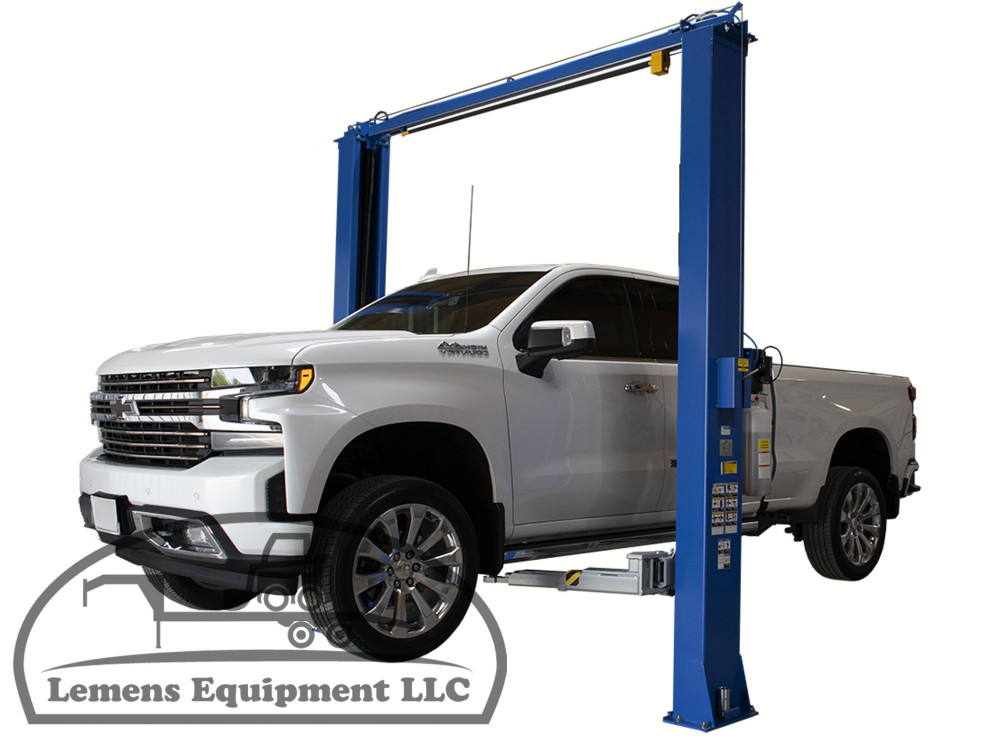

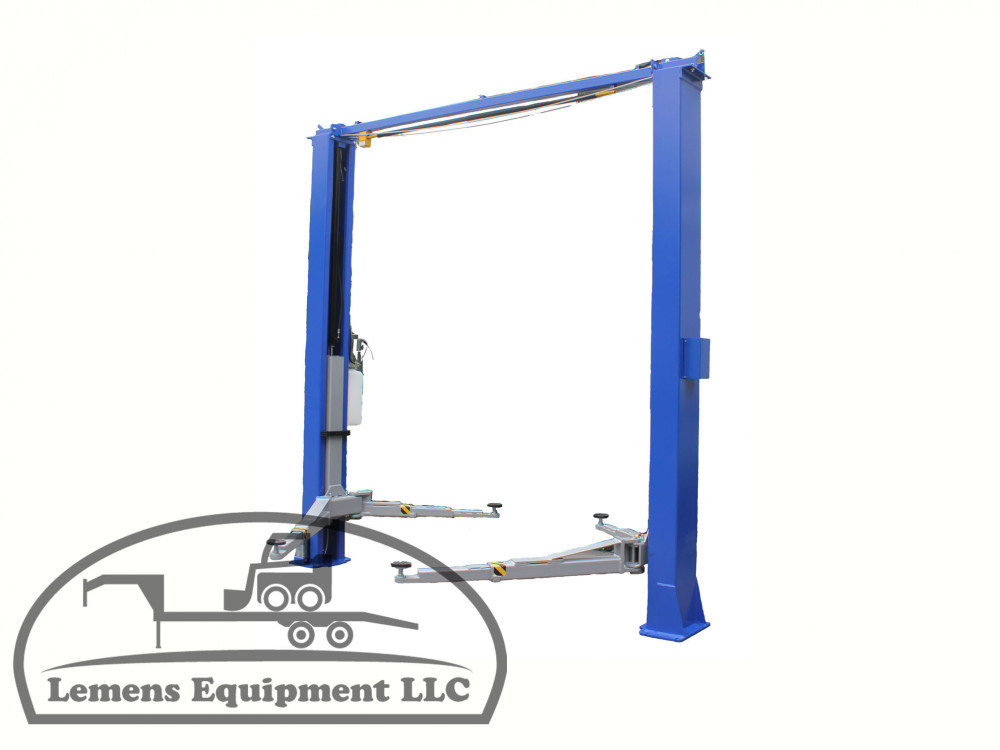

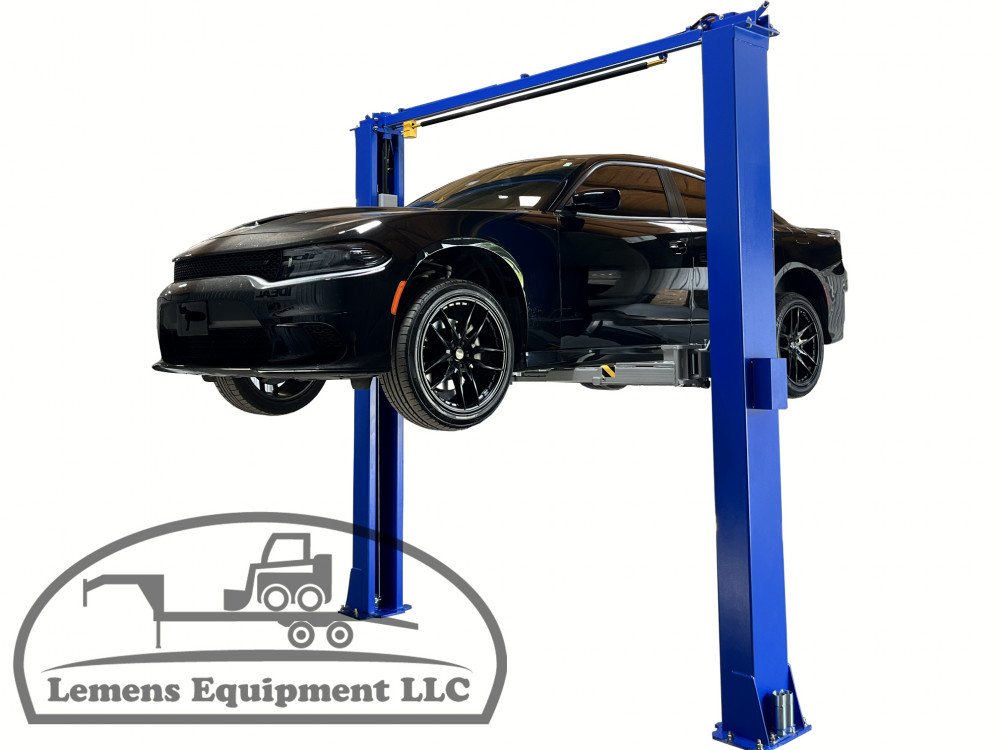

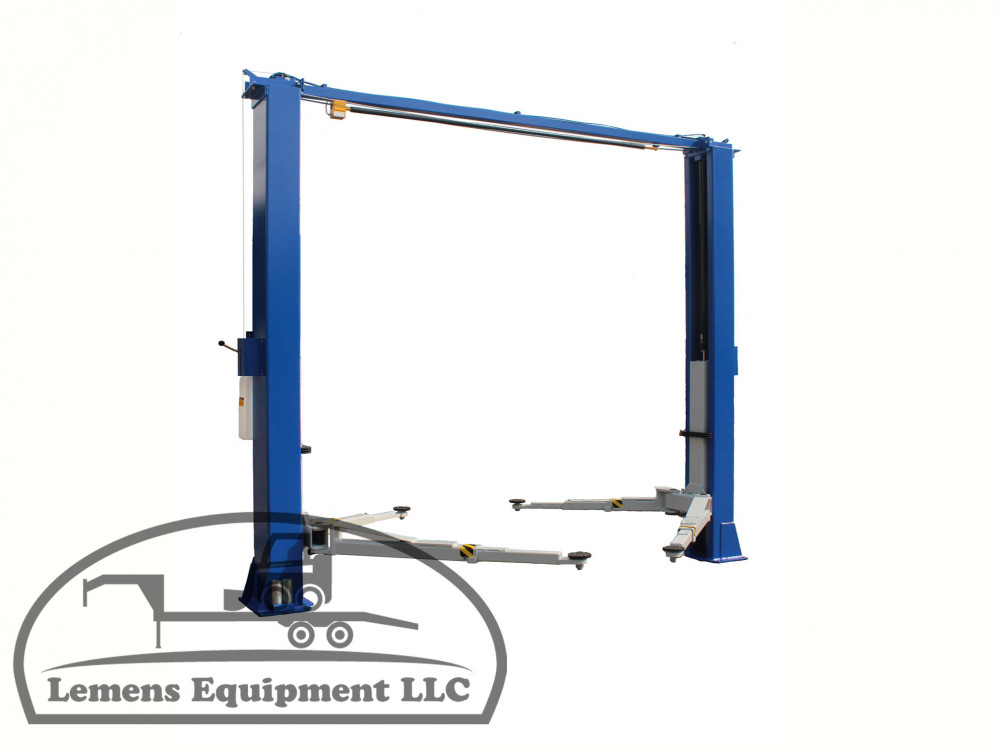

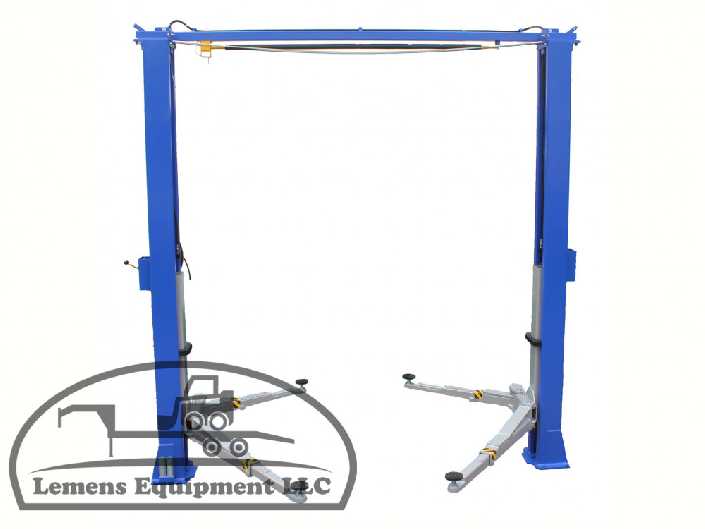

Engineered and built to offer great features at an economical price, the TP11KC-DX features and designs will make this the most used lift in your garage. With versatile user-friendly bi-symmetric configurable arms, 3 stage front arms, symmetric columns, single point lock release, low profile arms, rubber door guards, and spin up pads with 2" and 4" stackable truck adapters offers everything you’d expect and more!

GENERAL

-Capacity: 11,000 lbs

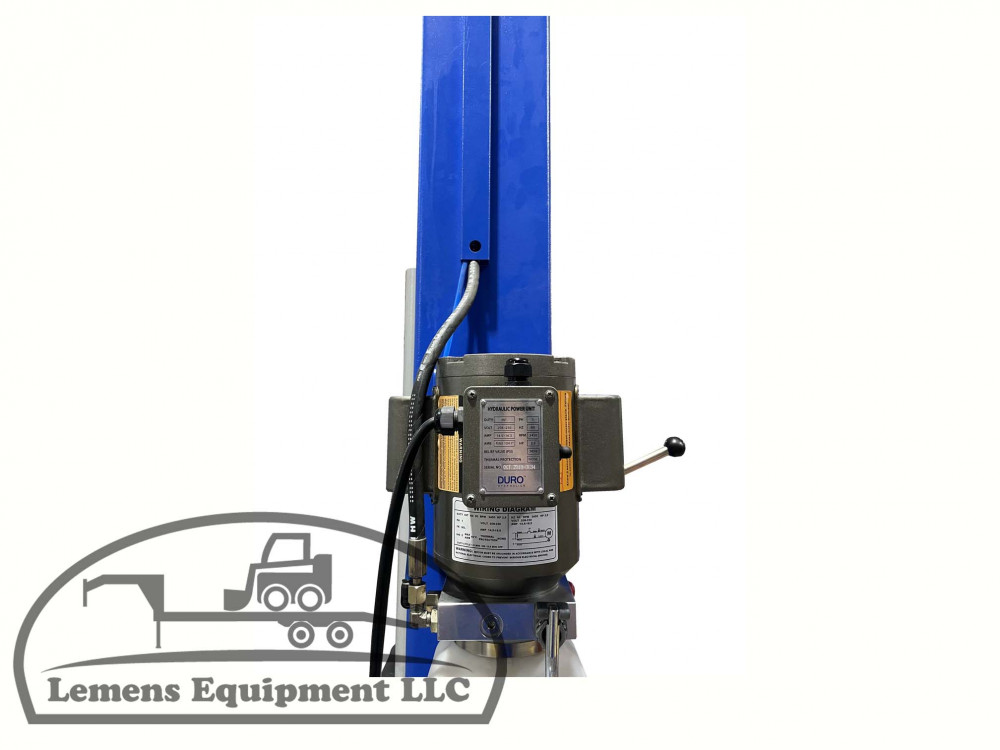

-Direct drive

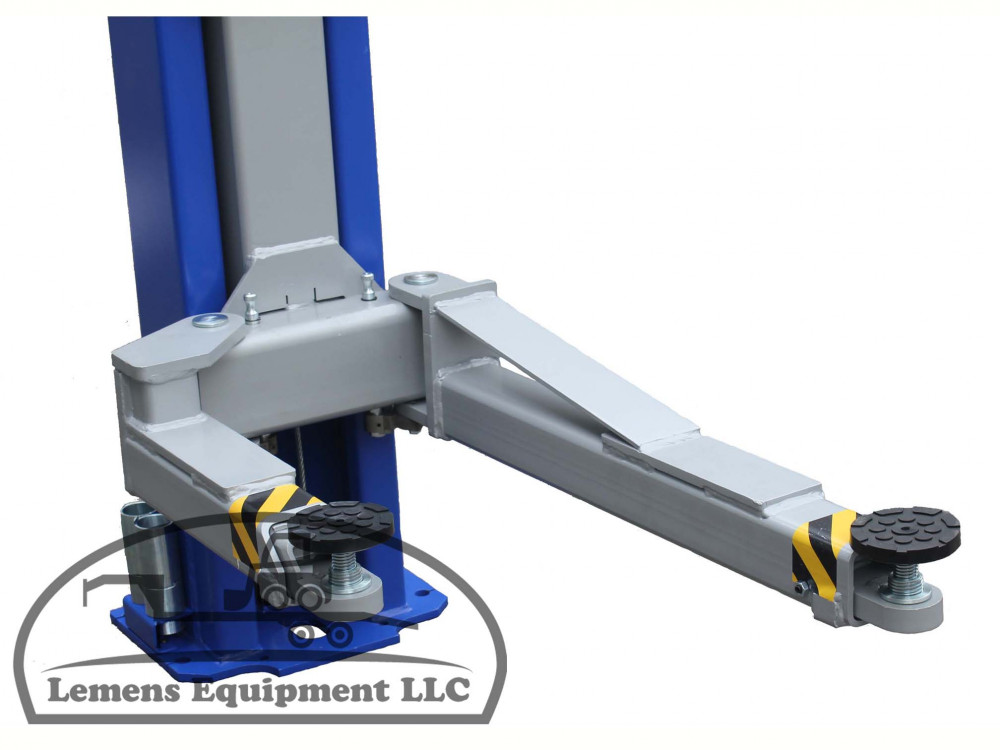

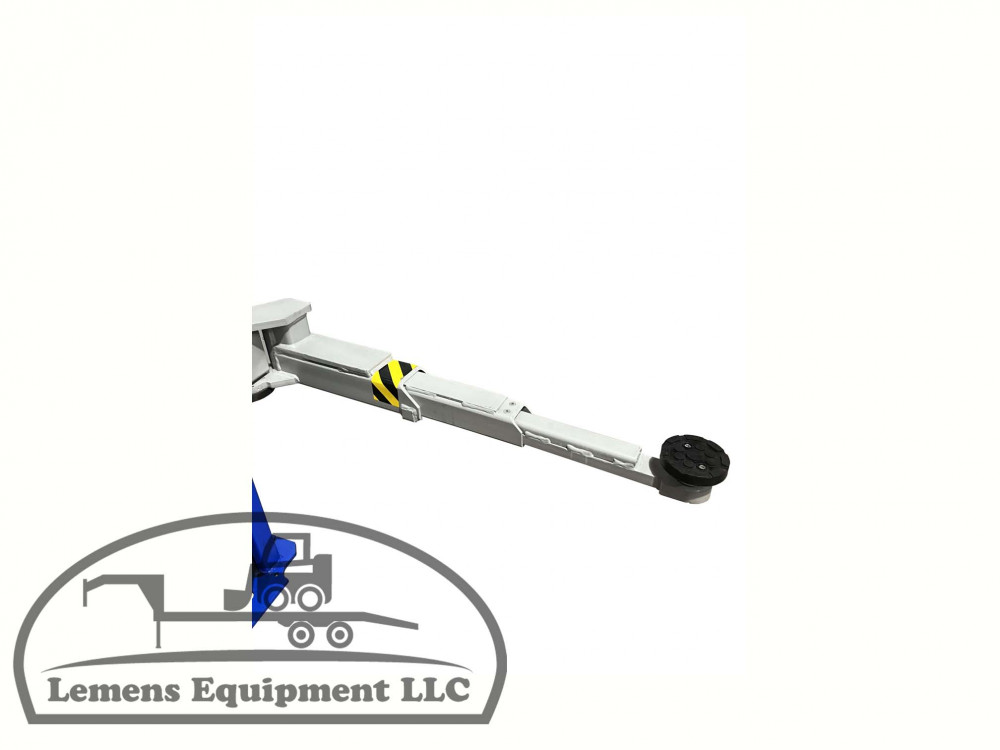

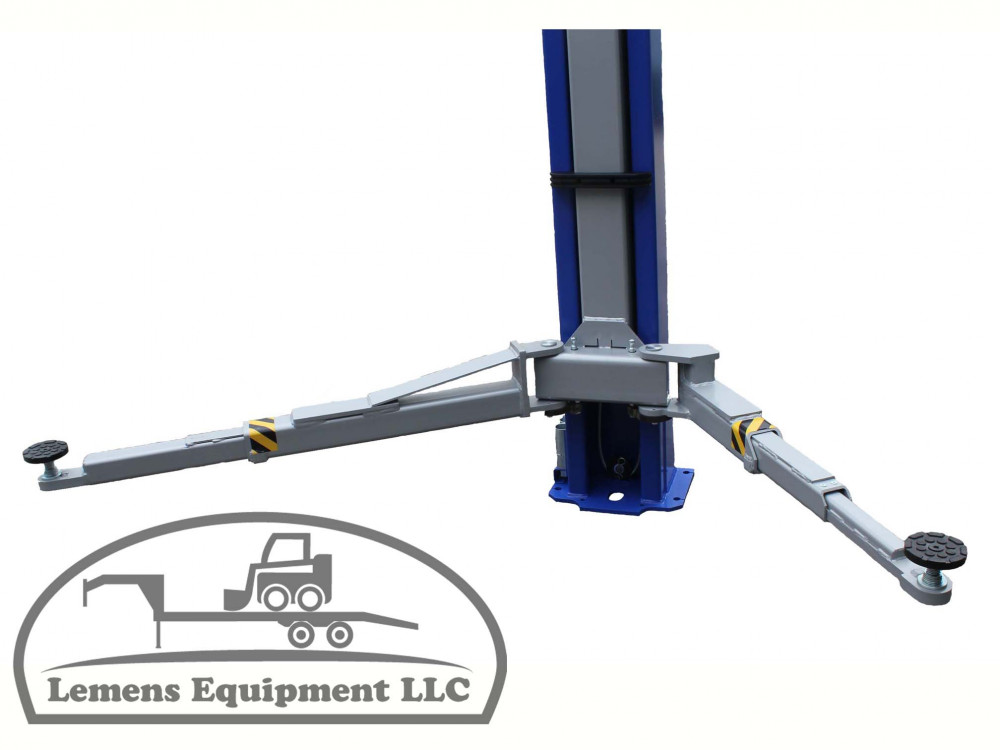

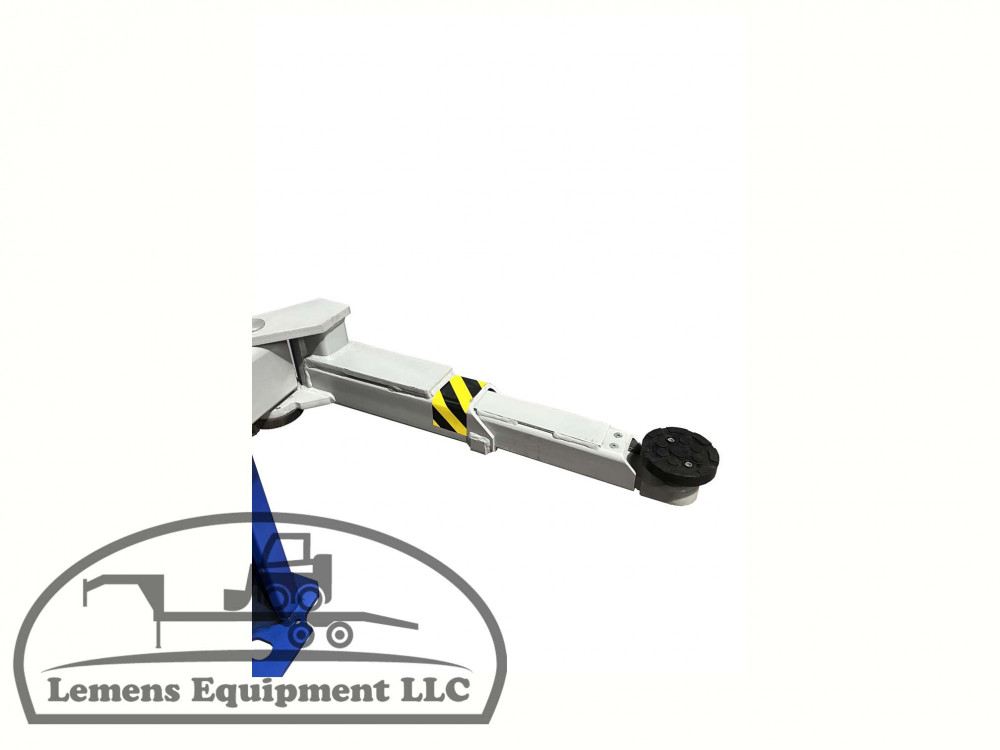

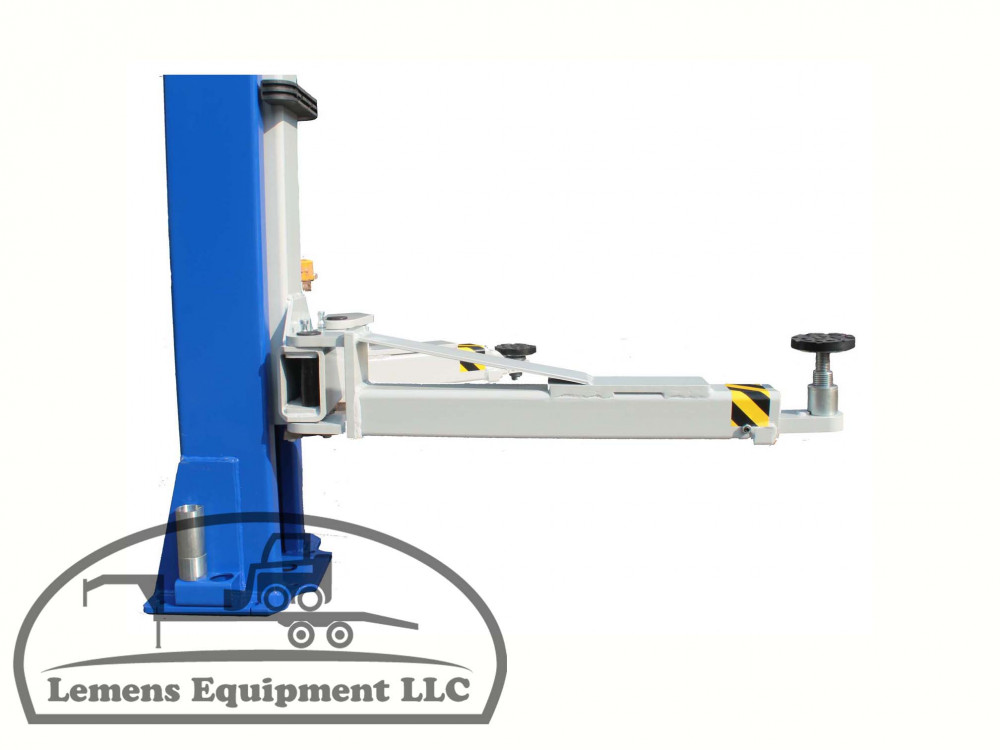

-3 stage front arms

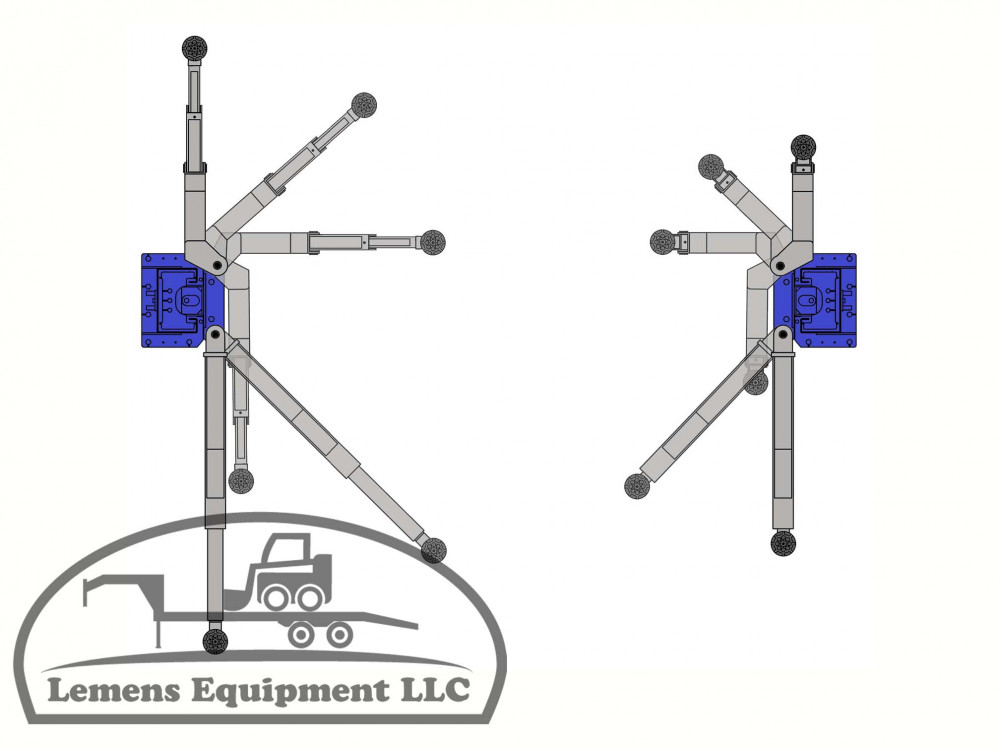

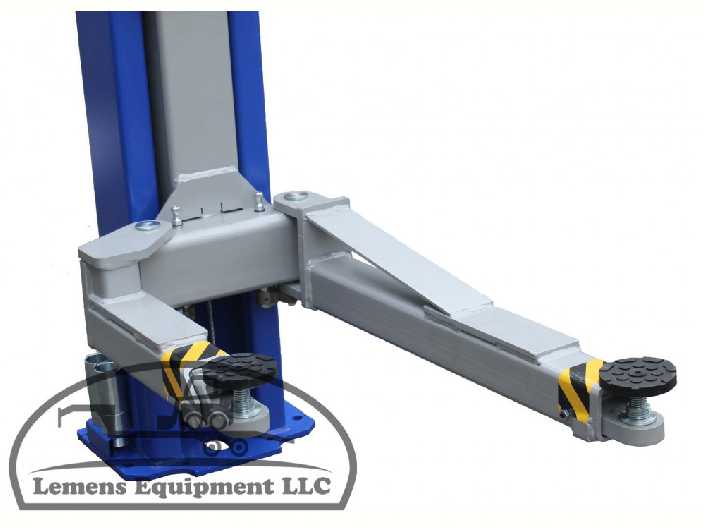

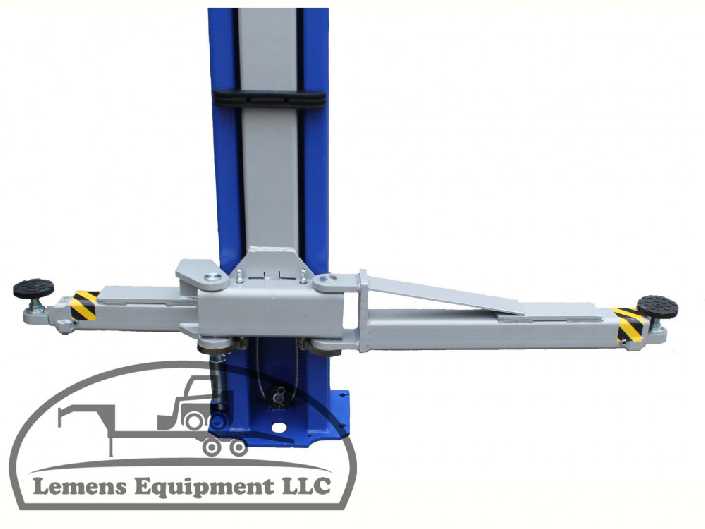

-Asymmetric/Symmetric arm configuration
-Symmetric columns
-Single point lock release

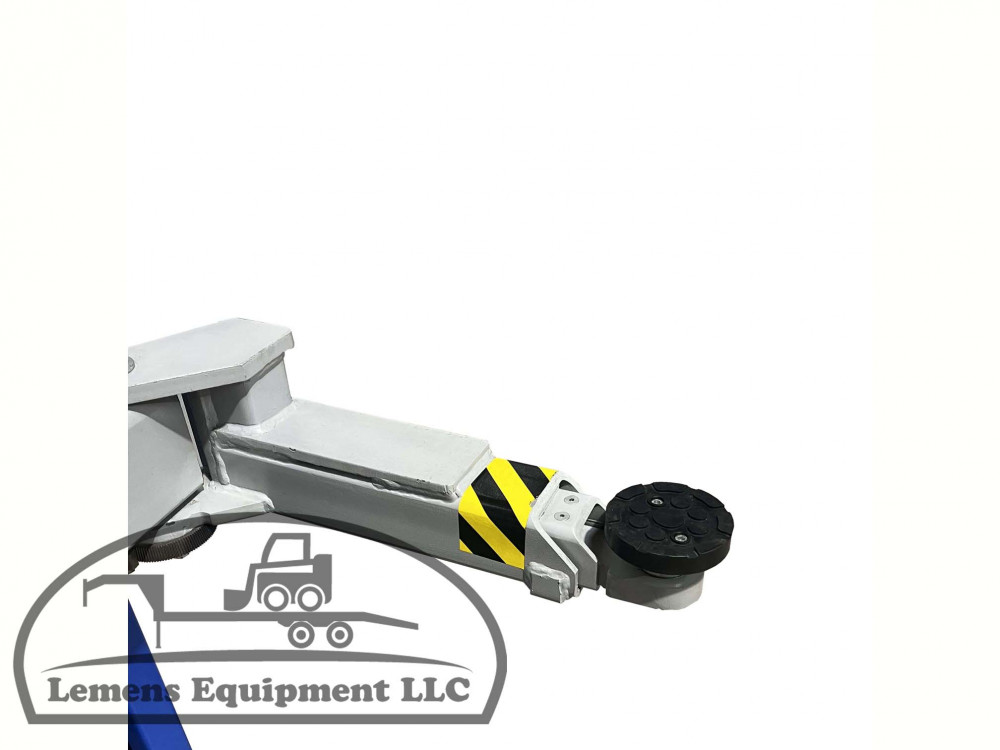

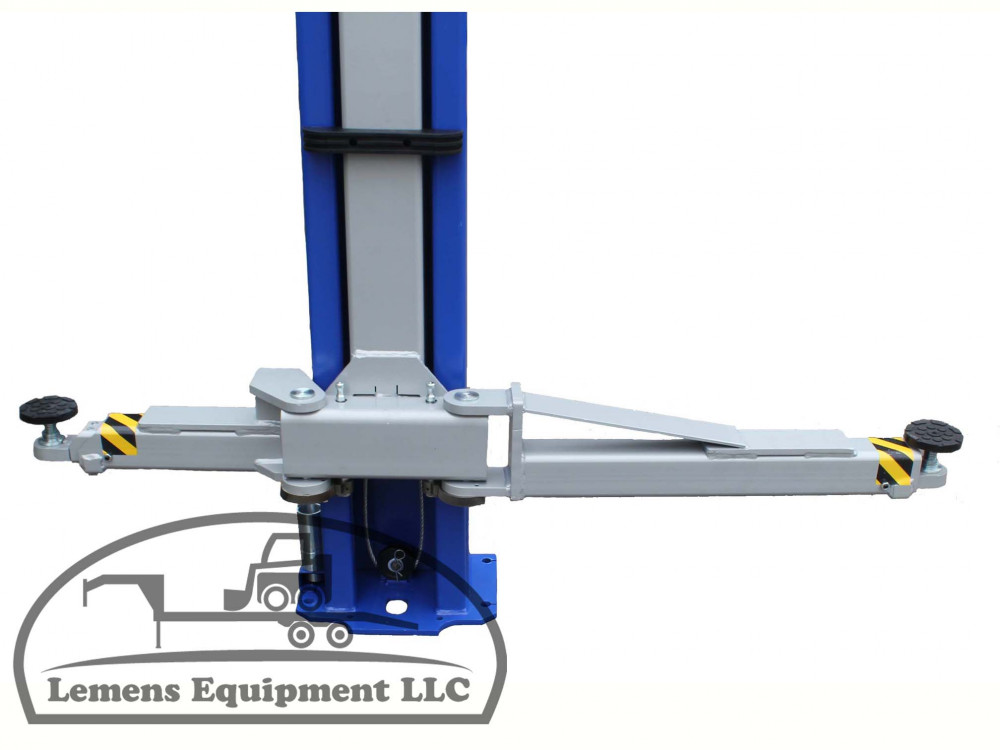

-Low profile arms

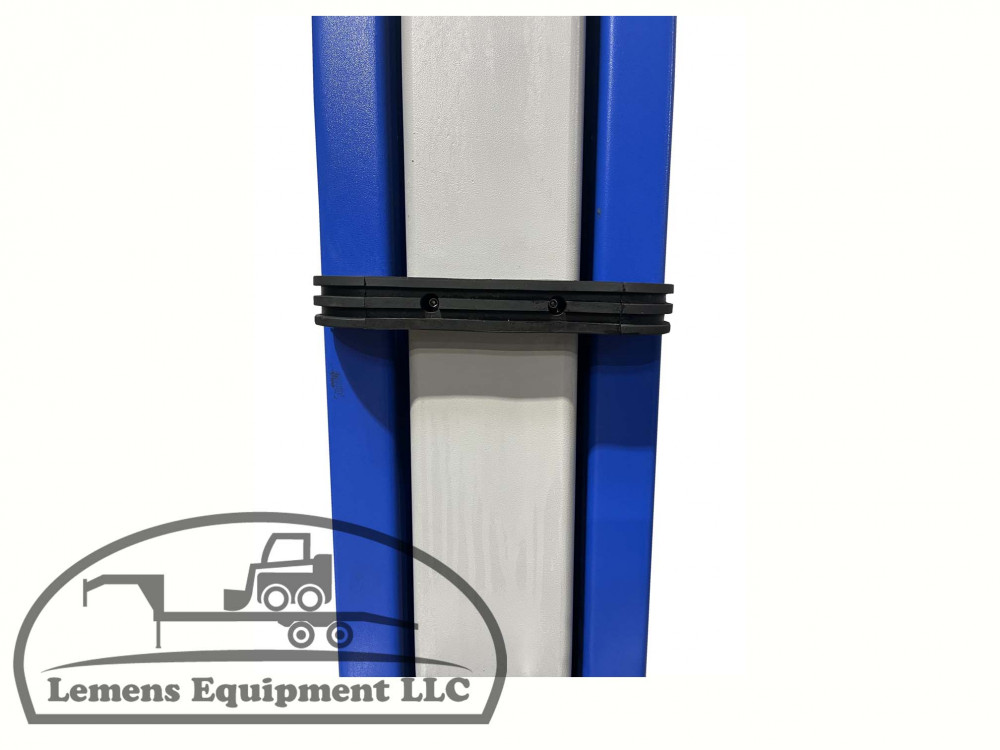

-Rubber door guards

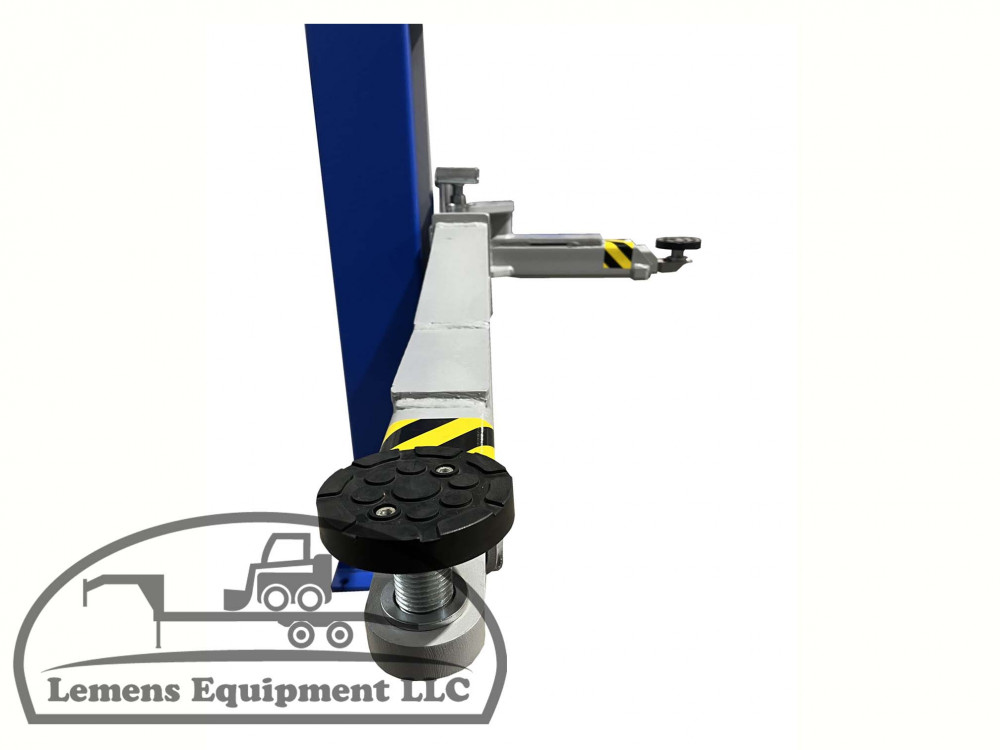

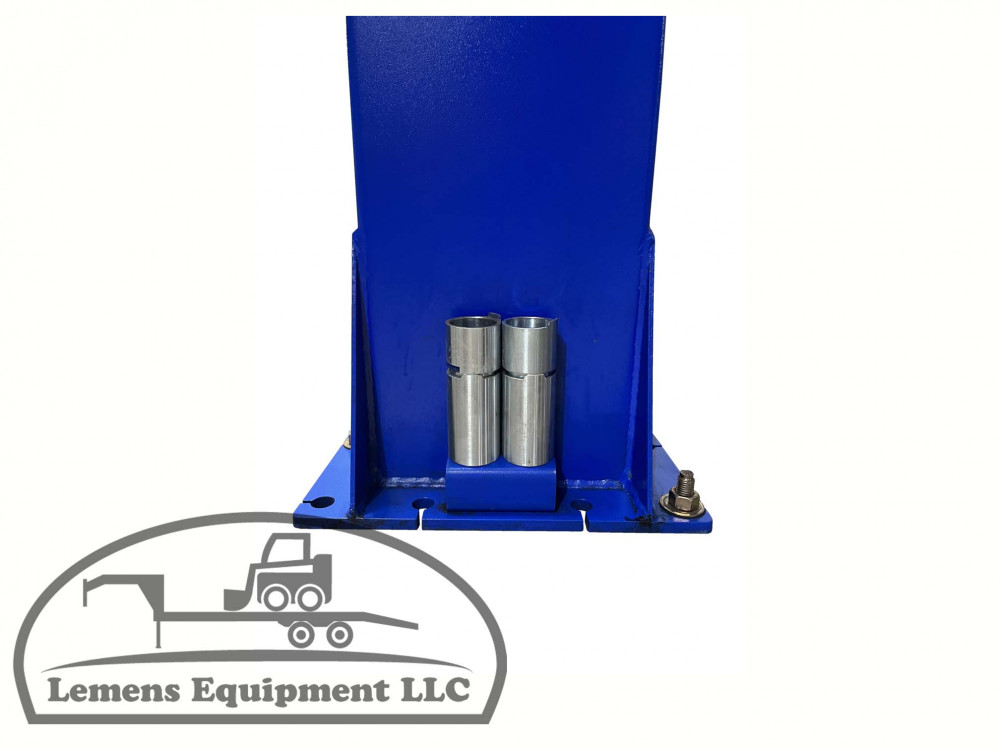

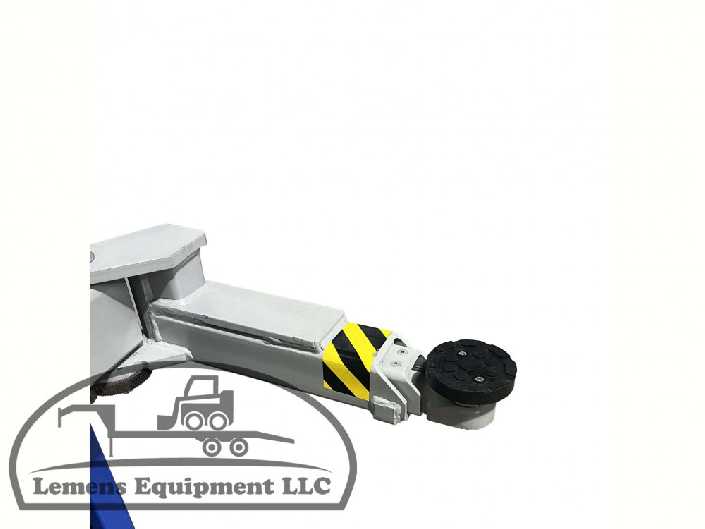

-Spin up pads with stackable truck adapters included 2" and 4"
-180 degree front arm rotation

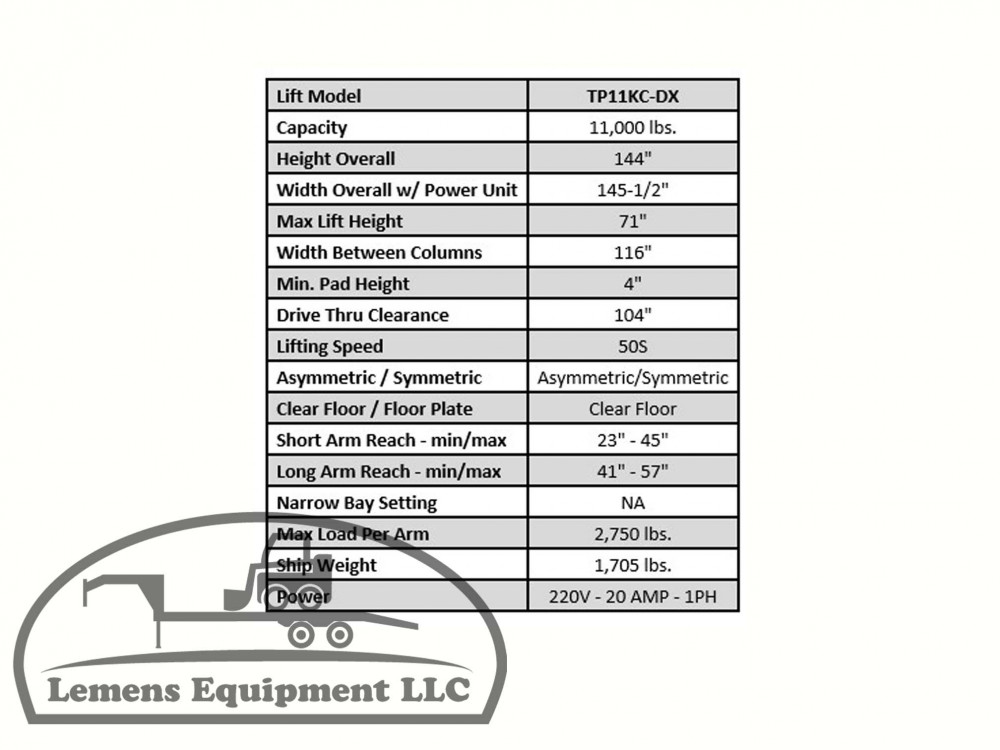

CONSTRUCTION

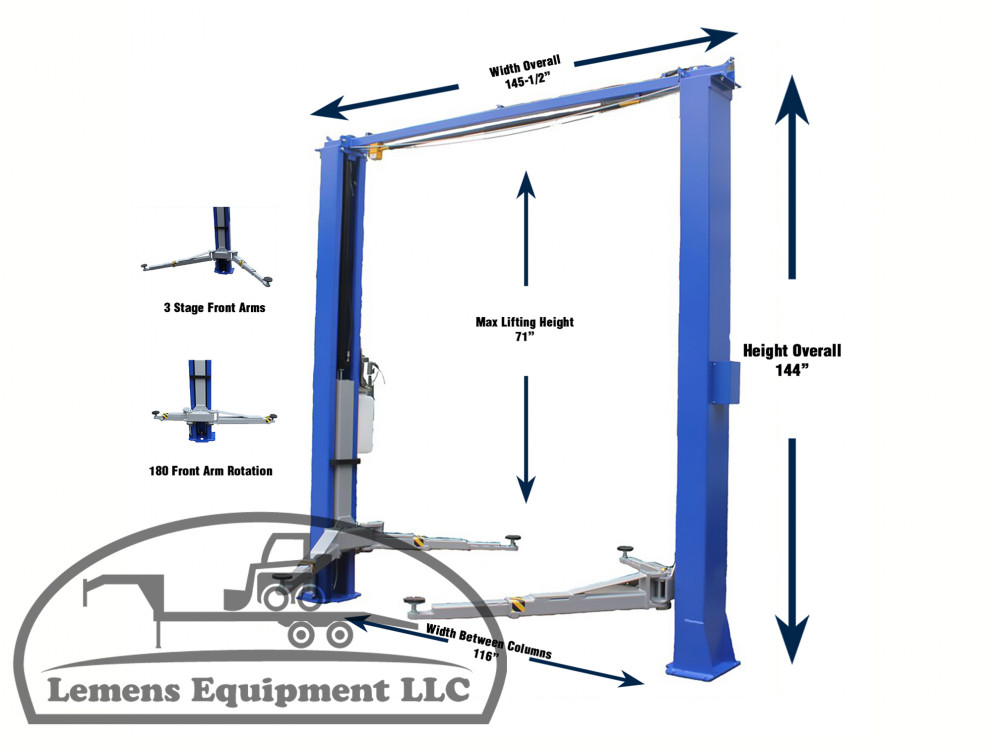

-Height Overall: 144"
-Width Overall w/ Power Unit: 145-1/2"
-Max Lift Height: 71"
-Width Between Columns: 116"
-Min. Pad Height: 4"
-Drive Thru Clearance: 104"
-Lifting Speed: 50 seconds
-Asymmetric/Symmetric: Bi-Symmetric
-Clear Floor/Floor Plate: Clear Floor
-Short Arm Reach - min/max: 23" - 45"
-Long Arm Reach- min/max: 41" - 57"
-Max Load Per Arm: 2,750 lbs
-Ship Weight: 1,705 lbs
-Power: 220V - 20 AMP - 1PH

WARRANTY

-5 Year Structural Warranty On: Columns, Arms, Uprights, Swivel Pins, Legs, Carriages, Overhead Beam, Tracks, Cross Rails, and Top Rail Beam
-Limited One-Year Warranty: Tuxedo Distributors, LLC (Tuxedo) offers a limited one-year warranty to the original purchaser of Lifts and Wheel Service equipment in the United States and Canada. Tuxedo will replace, without charge, any part found defective in materials or workmanship under normal use, for a period of one year after purchase.
-The purchaser is responsible for all shipping charges. This warranty does not apply to equipment that has been improperly installed or altered or that has not been operated or maintained according to specifications

SHIPPING

-All in stock lifts can be picked up here at Lemens Equipment LLC in Eldon MO. Please give us a day's notice prior to coming so we can get it ready for you.
-Lifts can be drop shipped directly to you, if you have a method to unload it at your destination. They can also be shipped here and picked up from us.
-Freight is cheaper per item when we buy multiple lifts at a time on a Hotshot. That is why the shipping charge on our in stock lifts is cheaper then out of stock lifts that would ship by themselves via LTL.
