We have been running these lifts for a few years with no issues at Lemens Equipment LLC. We have a comparable, more expensive Challenger lift here that we do not like near as much as these tuxedo/kernel style lifts. We keep this lift in stock here in Eldon MO, it is not being dropped shipped from a warehouse.

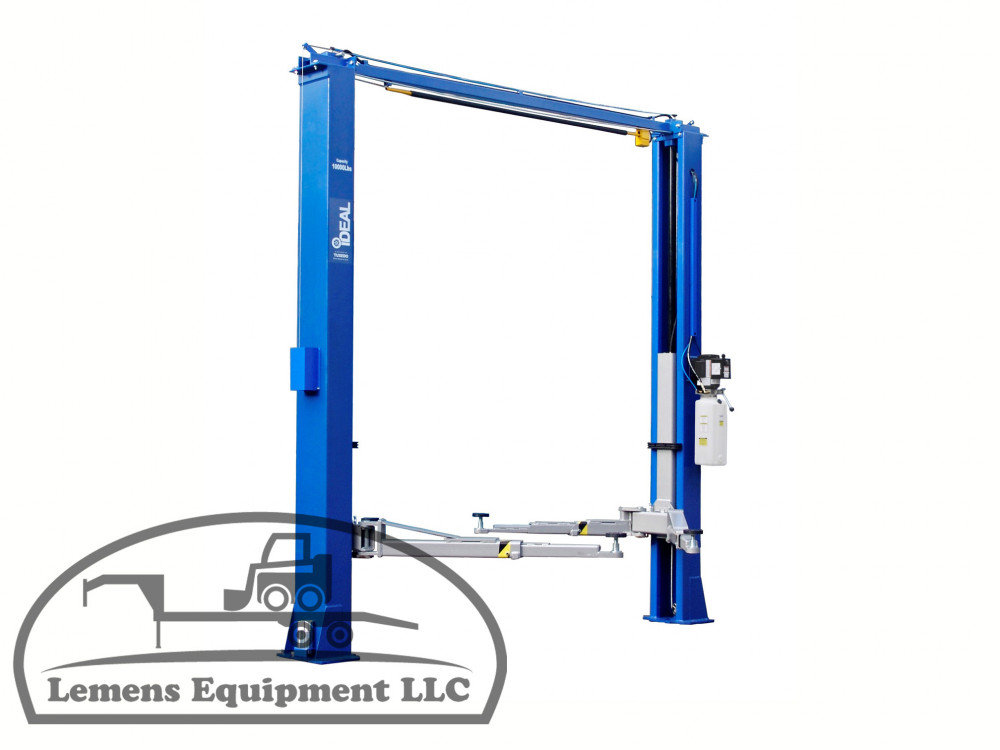

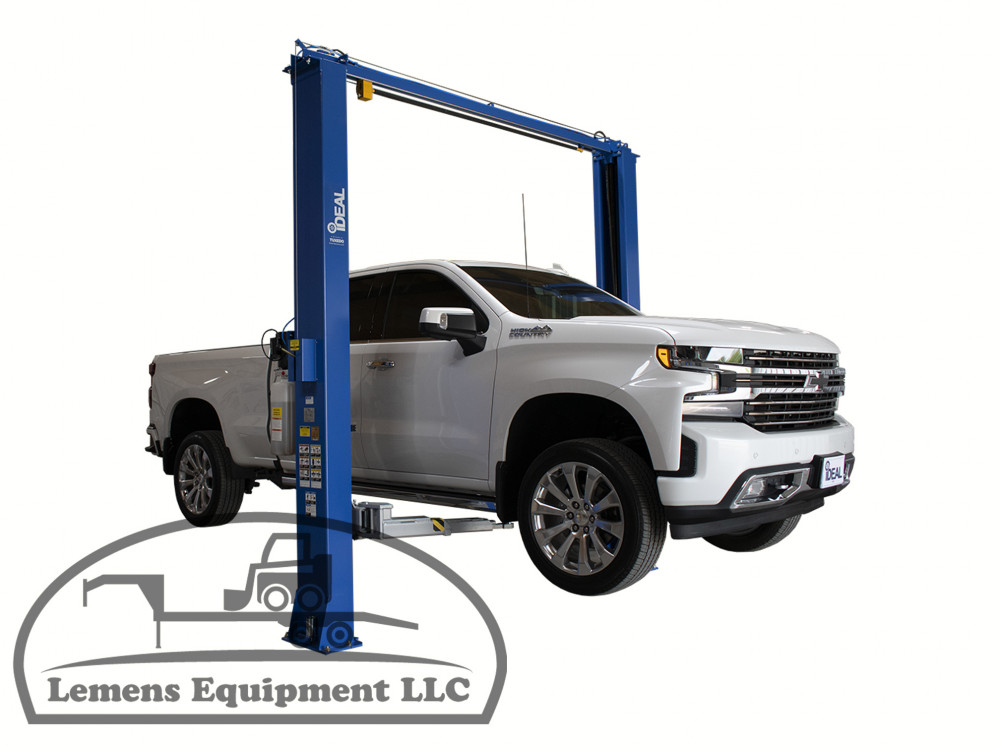

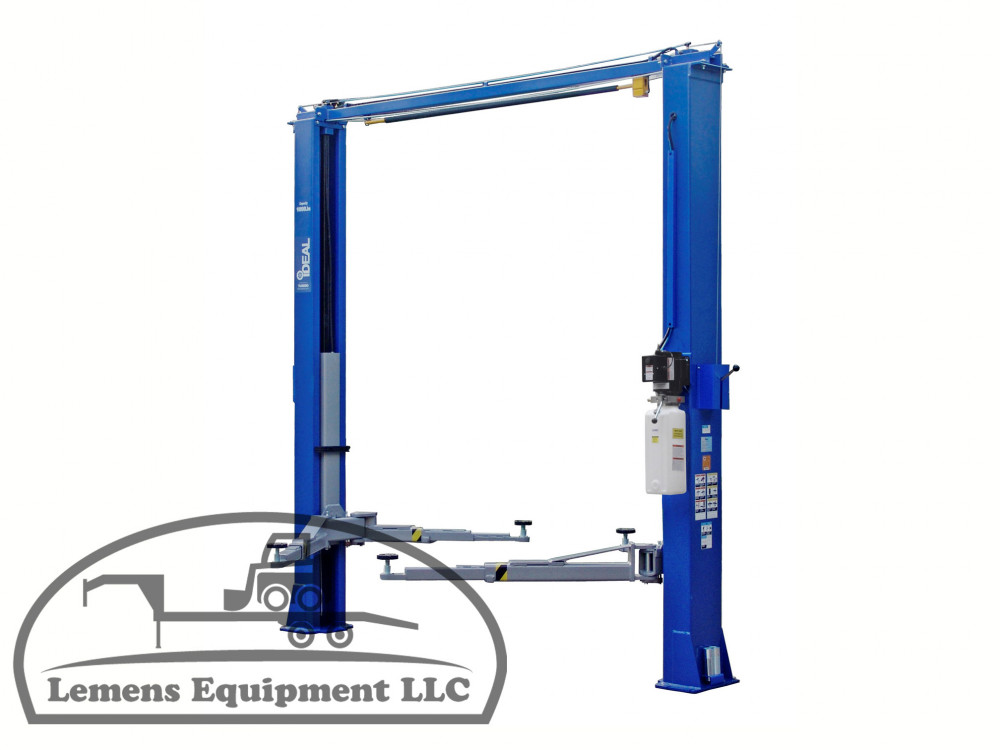

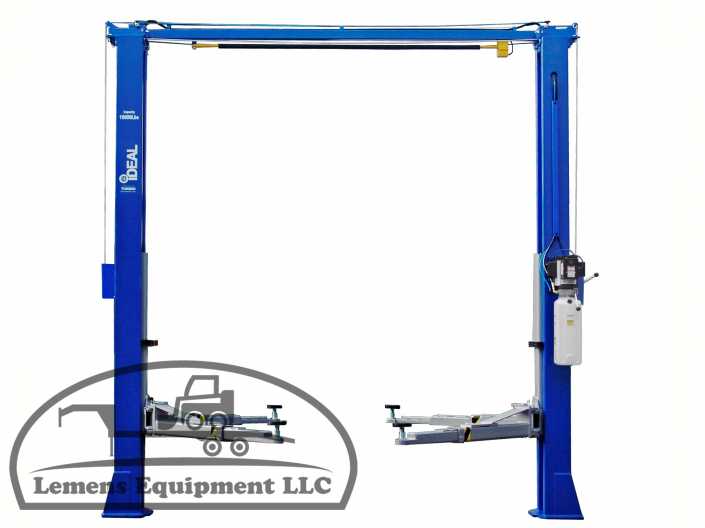

The iDEAL TP10KAC-DX 10,000 lb. ALI Certified Light Duty Two Post Lift is a premium

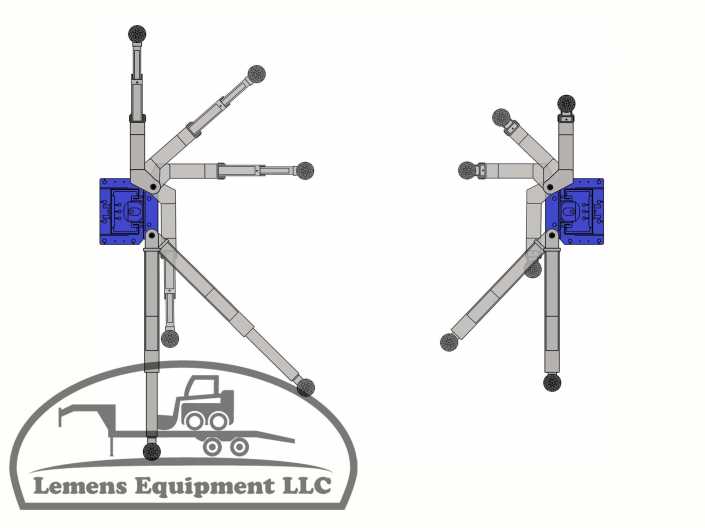

Bi-Symmetric™ design clear floor vehicle lift with the latest design features including, 3 Stage front arms with full 180° rotation for symmetric & asymmetric lifting, low profile 4" adjustable swivel pads and single point cable lock release. The rigid one piece column combined with direct ‘pull’ cylinders make it the perfect service lift for passenger cars, SUVs & most light duty trucks. The automatic arm restraints, hose & door guards complete the package for a premium, high quality lift, all at a great value!

GENERAL

-Capacity: 10,000 lbs
-Bi-symmetric lift arms

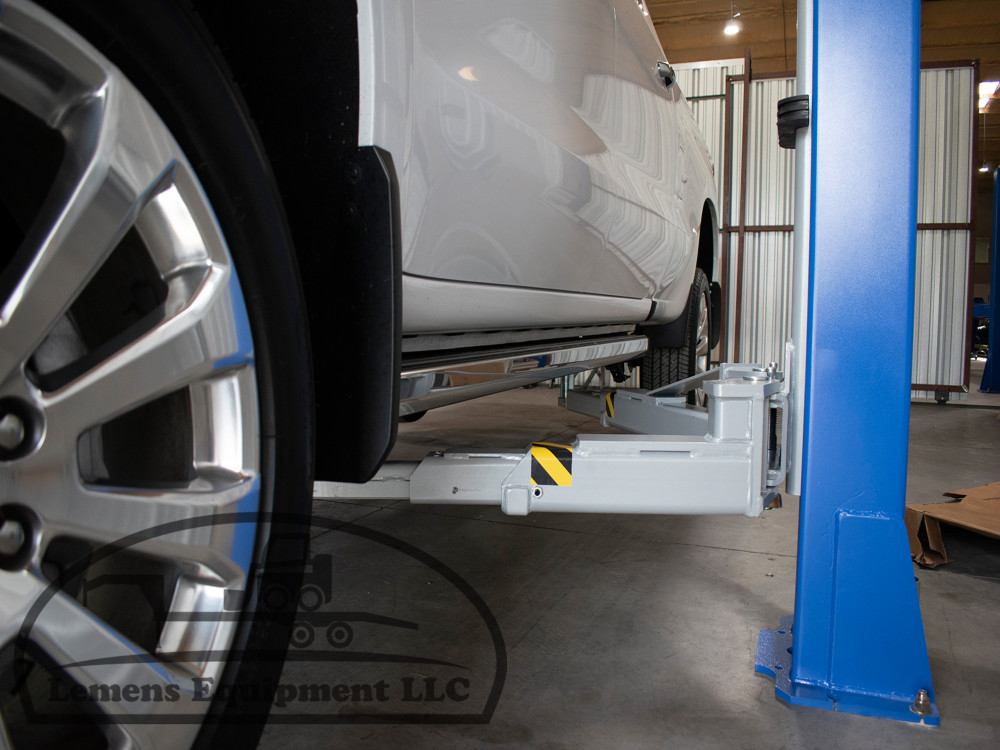

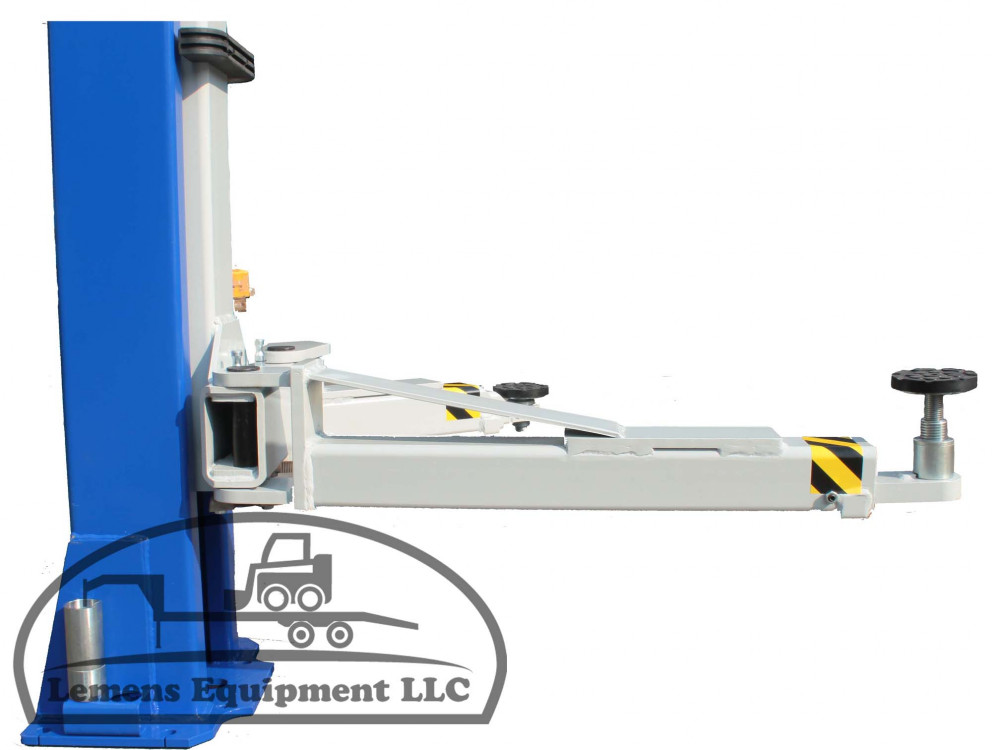

-Low profile swing arm design

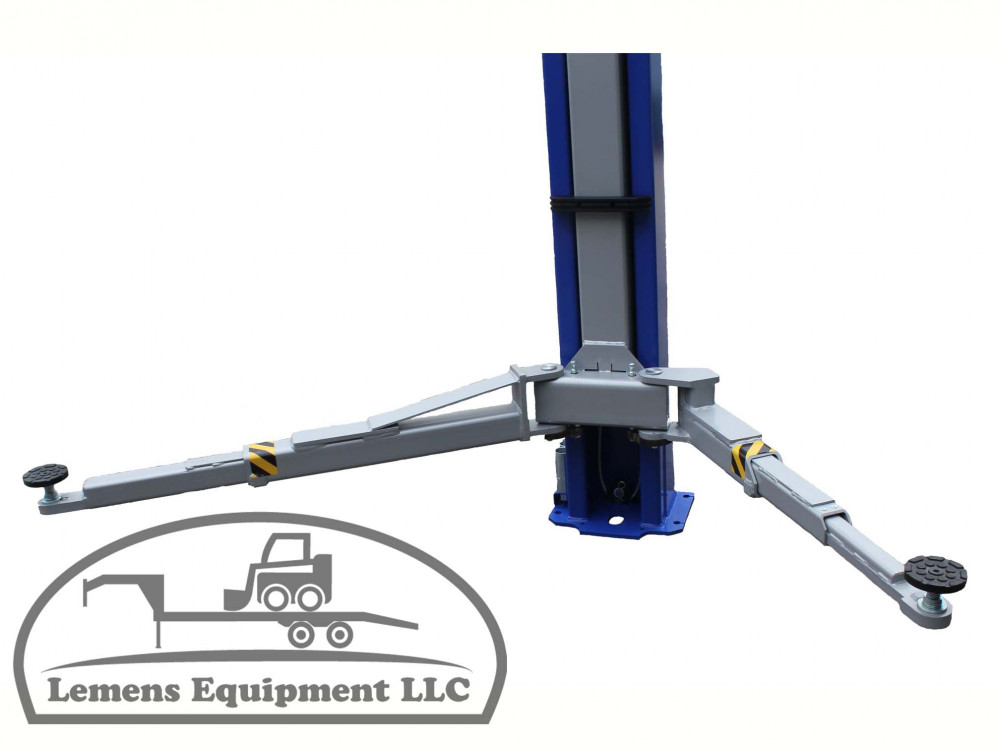

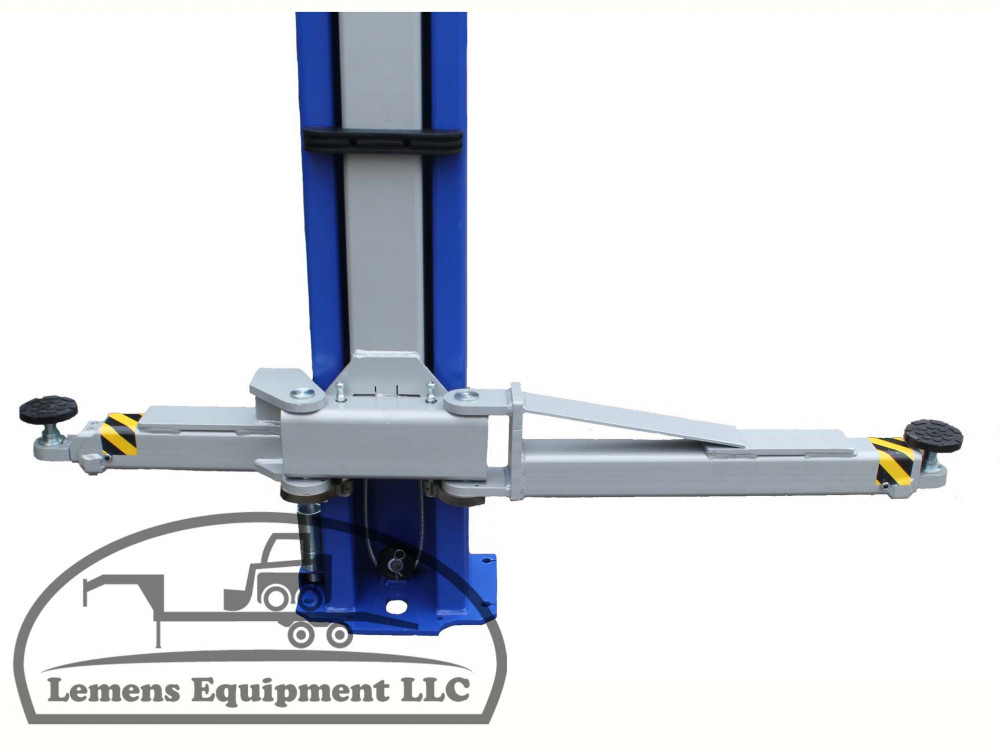

-3 stage front arms

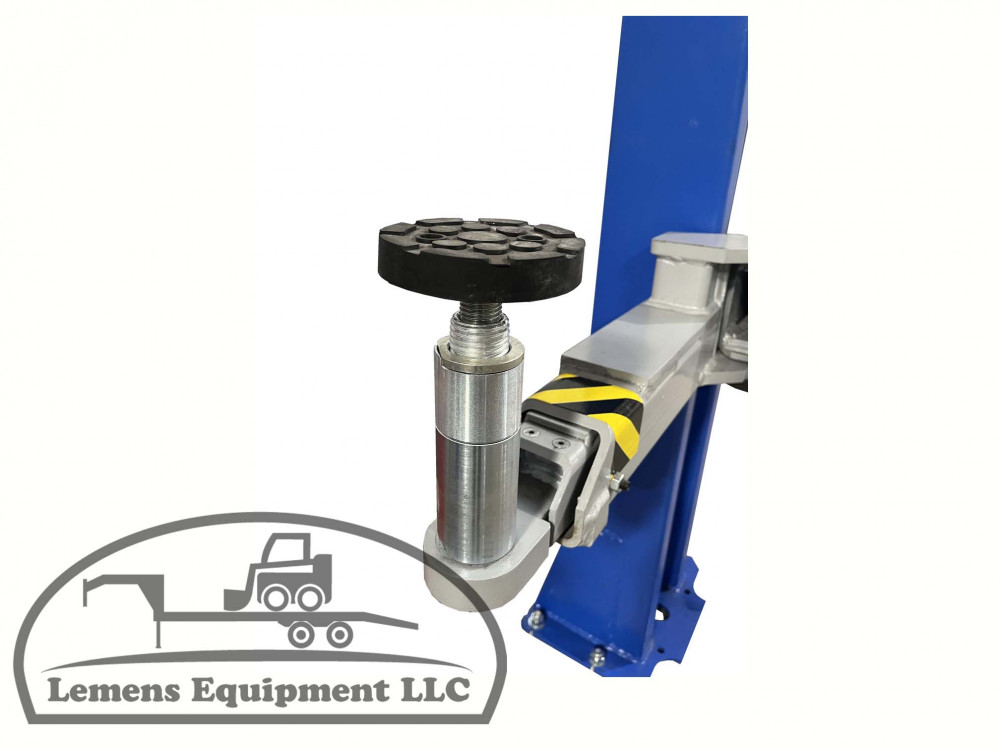

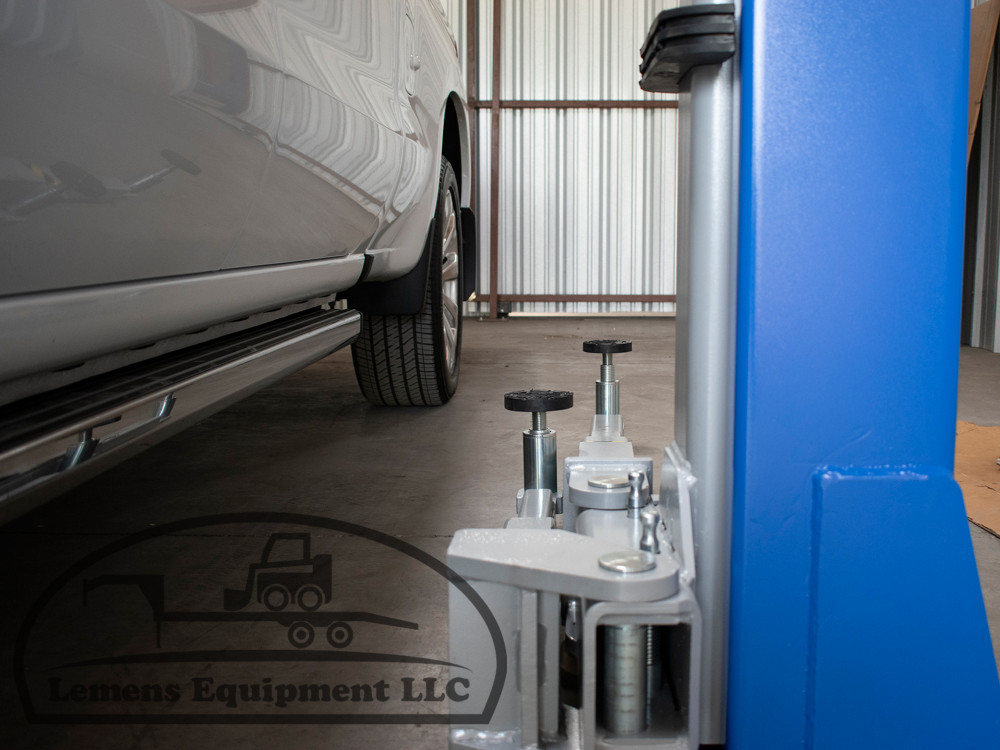

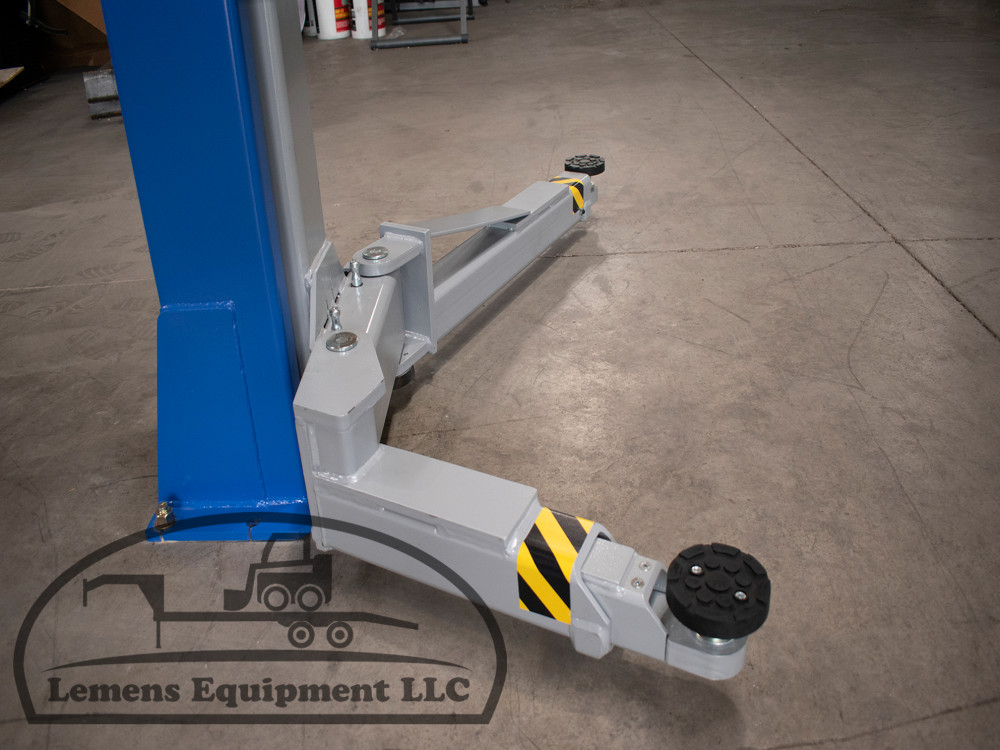

-Adjustable height swivel pads

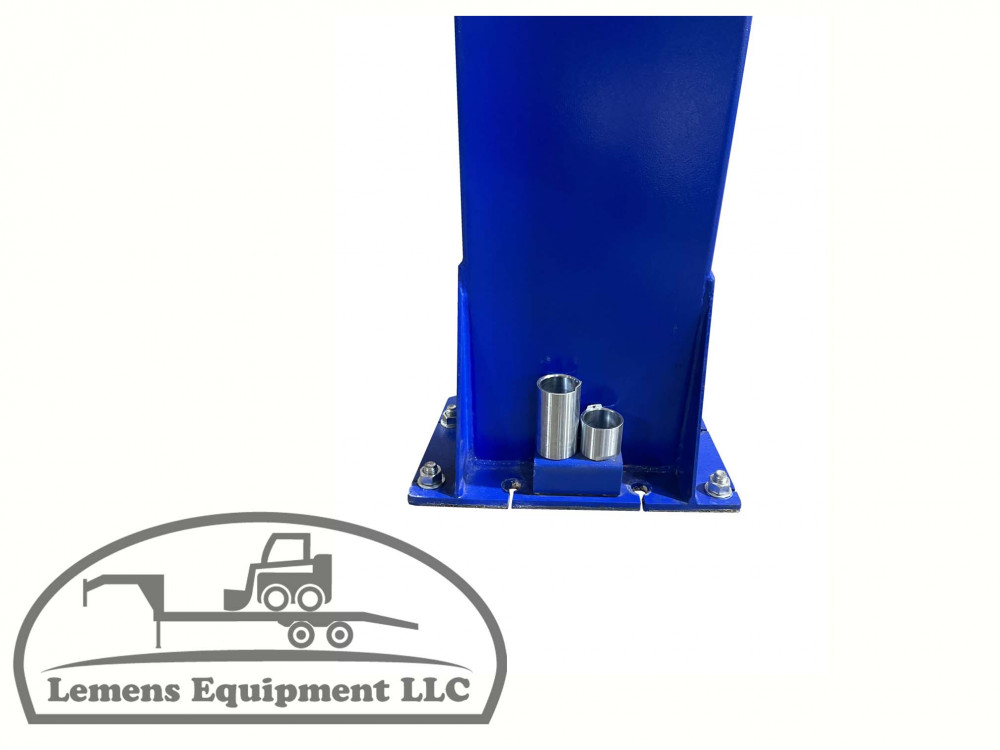

-2" & 4" stackable height adaptors
-Single point lock release

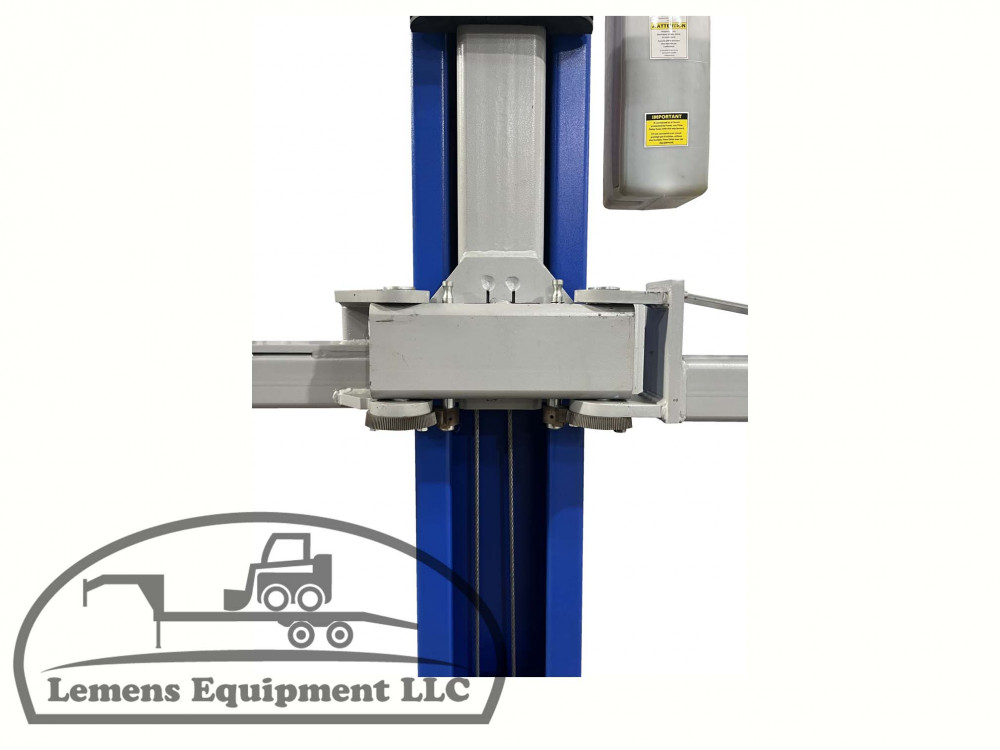

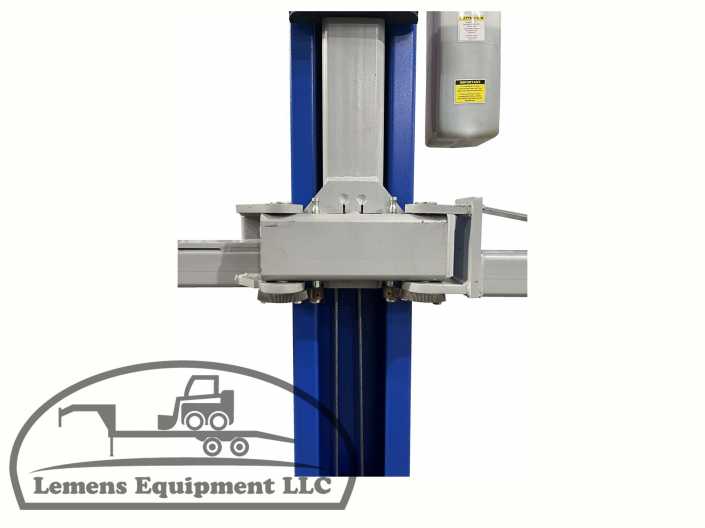

-Automatic arm restraints
-Direct ‘pull’ drive cylinders

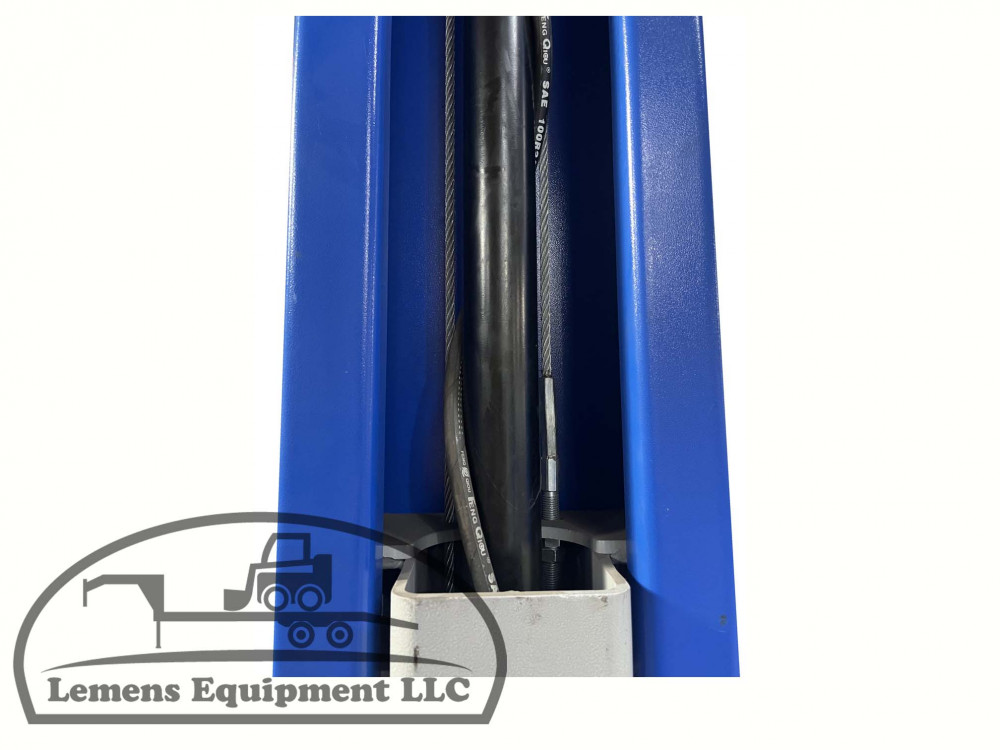

-External hose guards

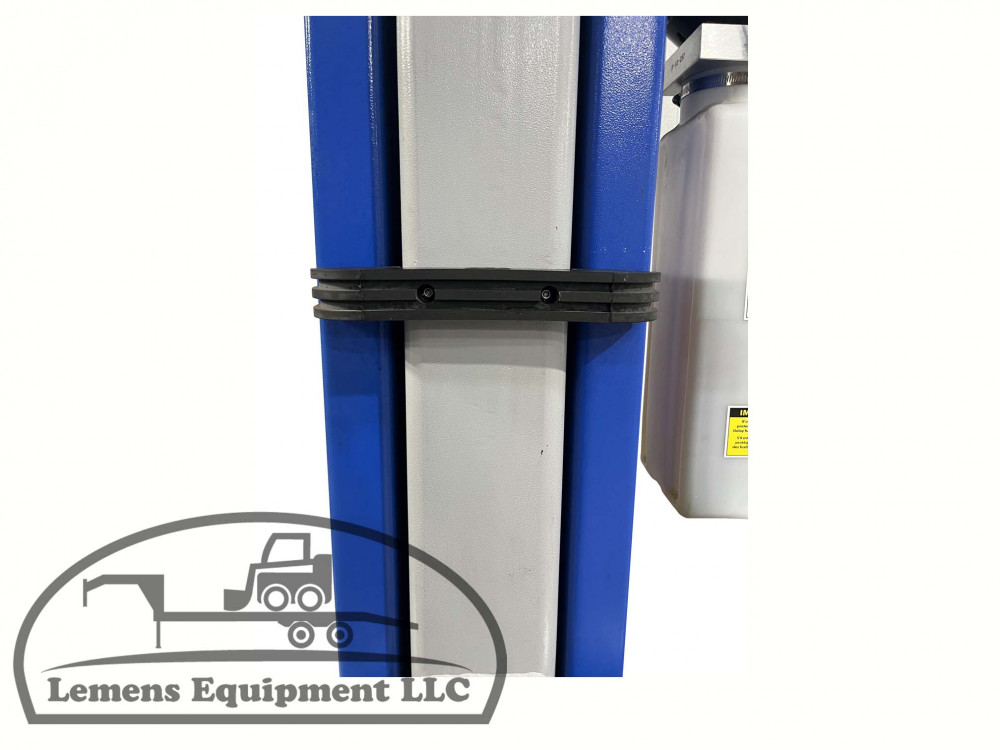

-Rubber door guards
-Durable powder-coat finish

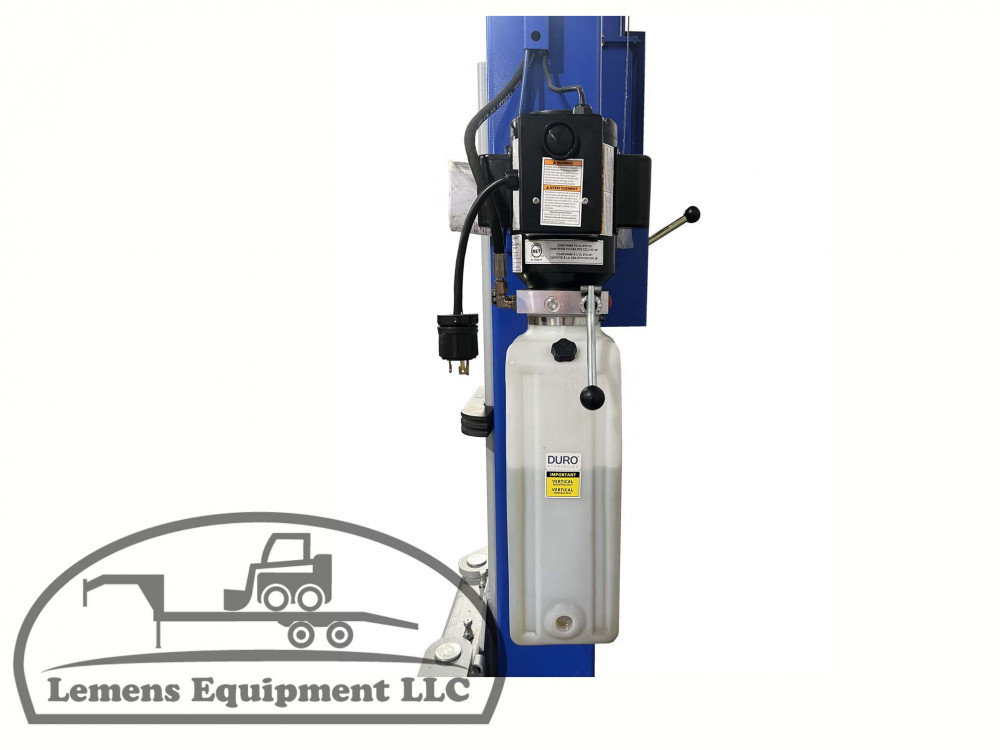

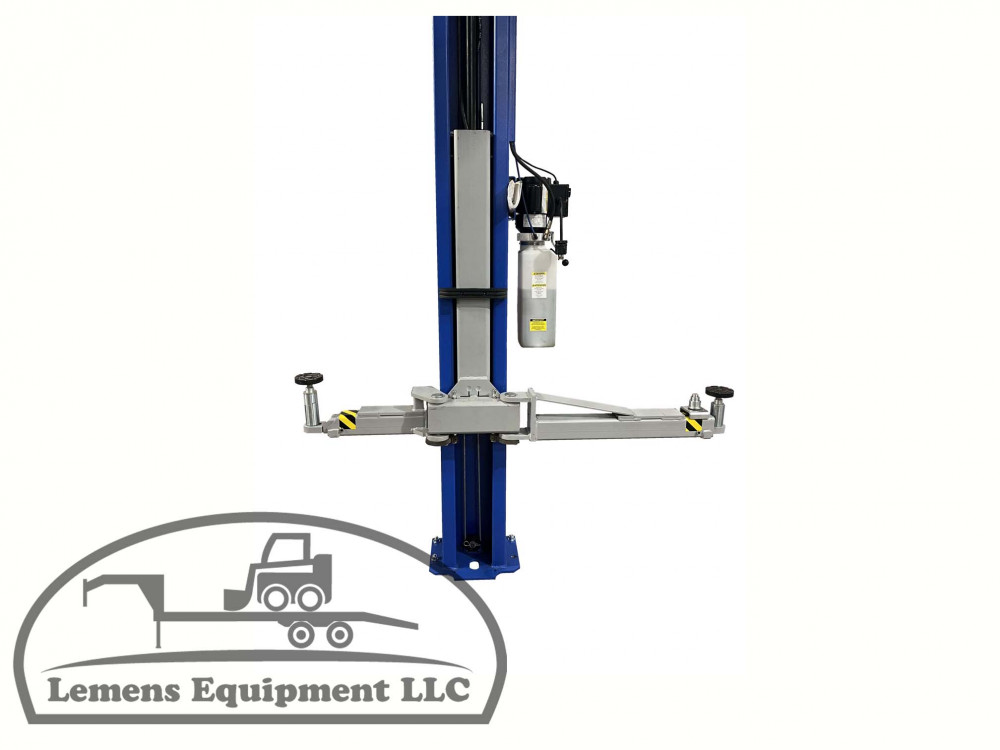

-NEW MET UL/CSA certified duro power unit
-ALI certified

CONSTRUCTION

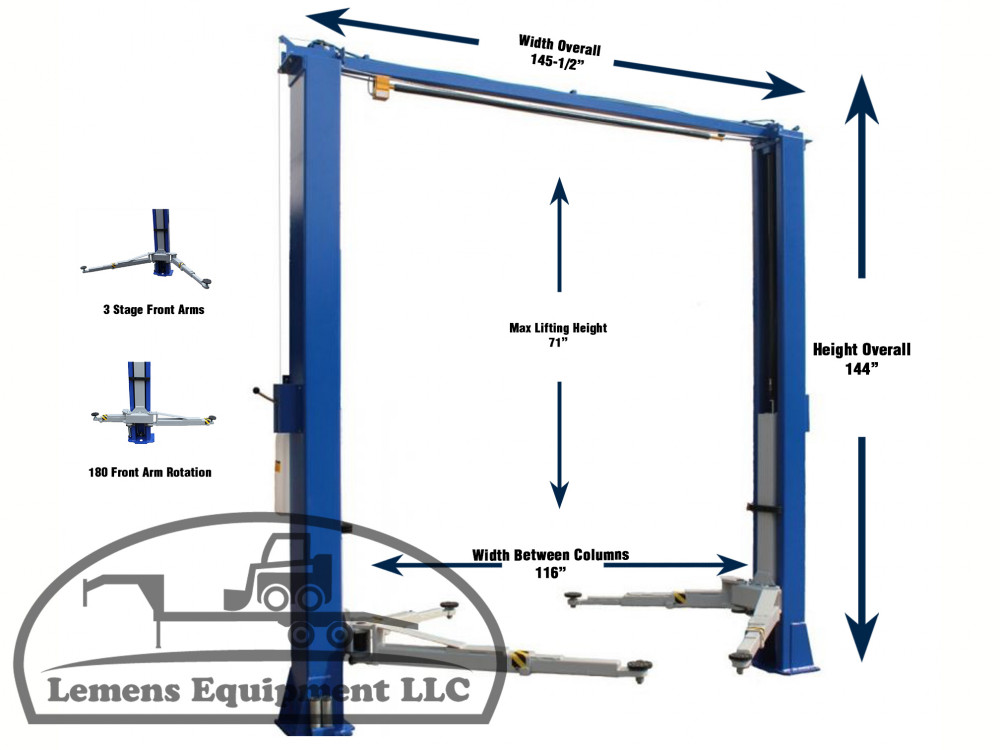

-Height Overall: 144"
-Width Overall w/ Power Unit: 145-1/2"
-Max Lift Height: 71"
-Width Between Columns: 116"
-Min. Pad Height: 4"
-Drive Thru Clearance: 104"
-Lifting Speed: 50 seconds
-Asymmetric/Symmetric: Bi-Symmetric
-Clear Floor/Floor Plate: Clear Floor
-Short Arm Reach - min/max: 23" - 45"
-Long Arm Reach - min/max: 41" - 59"
-Max Load Per Arm: 2,500 lbs
-Ship Weight: 1,705 lbs
-Power: 220V - 20 AMP - 1PH

OPTIONAL

-Spin-Up Cradle Adaptors (set of 4)

WARRANTY

-5 Year Structural Warranty On: Columns, Arms, Uprights, Swivel Pins, Legs, Carriages, Overhead Beam, Tracks, Cross Rails, and Top Rail Beam
-Limited One-Year Warranty: Tuxedo Distributors, LLC (Tuxedo) offers a limited one-year warranty to the original purchaser of Lifts and Wheel Service equipment in the United States and Canada. Tuxedo will replace, without charge, any part found defective in materials or workmanship under normal use, for a period of one year after purchase.
-The purchaser is responsible for all shipping charges. This warranty does not apply to equipment that has been improperly installed or altered or that has not been operated or maintained according to specifications

SHIPPING

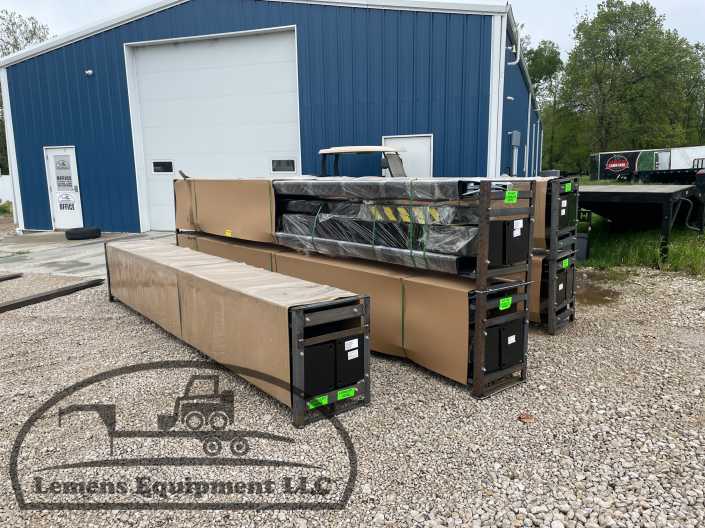

-All in stock lifts can be picked up here at Lemens Equipment LLC in Eldon MO. Please give us a day notice prior to coming so we can get it ready for you.
-Lifts can be drop shipped directly to you, if you have a method to unload it at your destination. They can also be shipped here and picked up from us.
-Freight is cheaper per item when we buy multiple lifts at a time on a Hotshot. That is why the shipping charge on our in stock lifts is cheaper then out of stock lifts that would ship by themselfs via LTL.
