Video Walk Around
Overview
-
Type
2 post
-
Warranty
Yes
-
Capacity
9000lb
-
Power
220v
-
Overall Width
134.6"
-
Overall Height
111.9"
-
Lifting Height
72.0"
-
Post Width
110.4"
-
Max Clearance
101.0"
-
Style
Symmetric
-
Floor
Floor Plate
We have been running these lifts for a few years with no issues at Lemens Equipment LLC.
Introducing the New TP9K ‘X’ Series Two Post Lifts!! The new TP9KACX, TP9KSCX &
TP9KFX Two Post, Clear Floor & Floor Plate Lifts have been redesigned to now include
Standard features with Single Piece Column construction, Internal Hose routing,Padded
Overhead Shut-Off Bar with Kill Switch, Reduced overall Width, Drop-In Adjustable Swivel
Pads with Height Adapters & Rubber Door Guards, making these models one of the best
Two Post Lift values in the industry!
GENERAL
-Capacity: 9,000 lbs
-Single piece column construction
-Padded ‘shut-off’ bar with kill switch

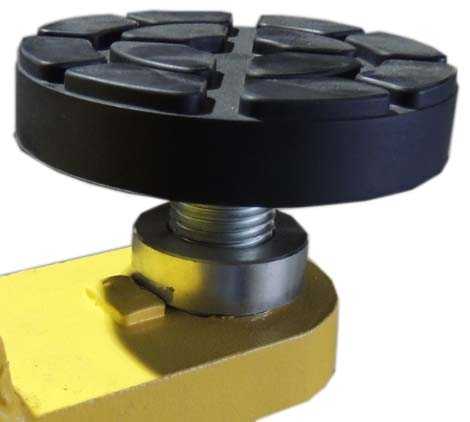

-Low profile ‘drop-in’ swivel pads with 1-1/2" adjustable height

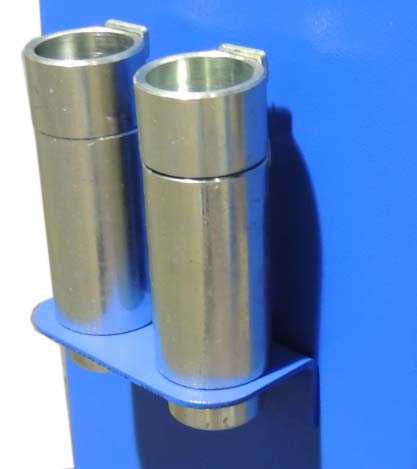

-4 each stackable 1-3/8" & 4" ‘drop-in’ height adapters

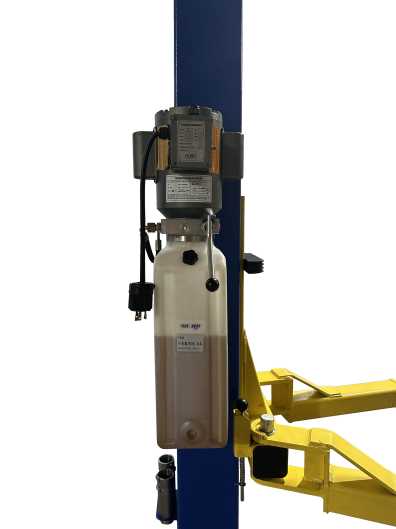

-Reduced overall width with front-side power unit mounting

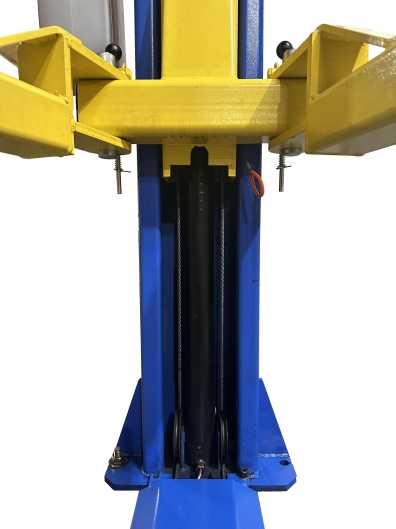

-Internal hose routing with integrated hose guards

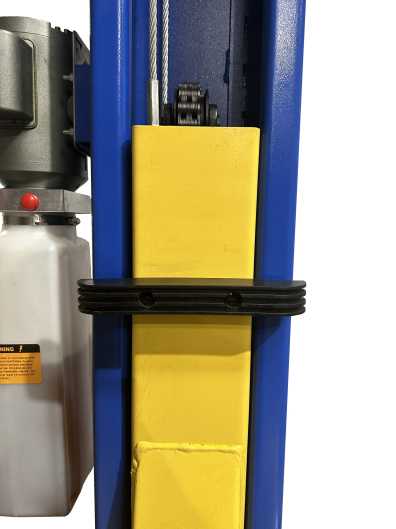

-Rubber door guards
-Chain drive
-Dual point lock release

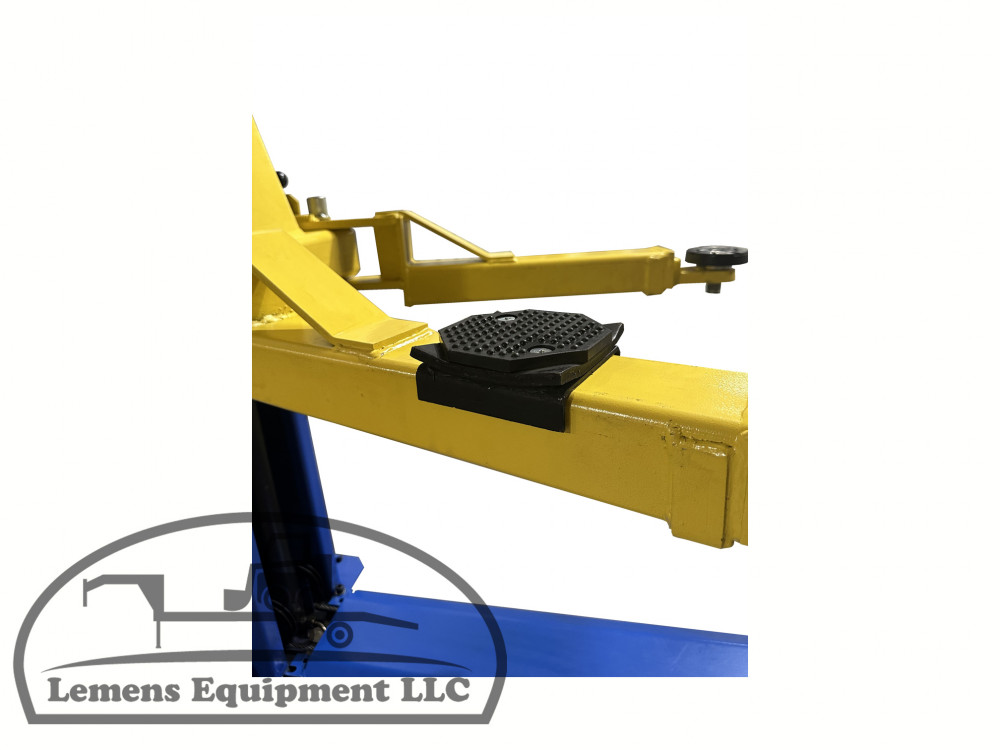

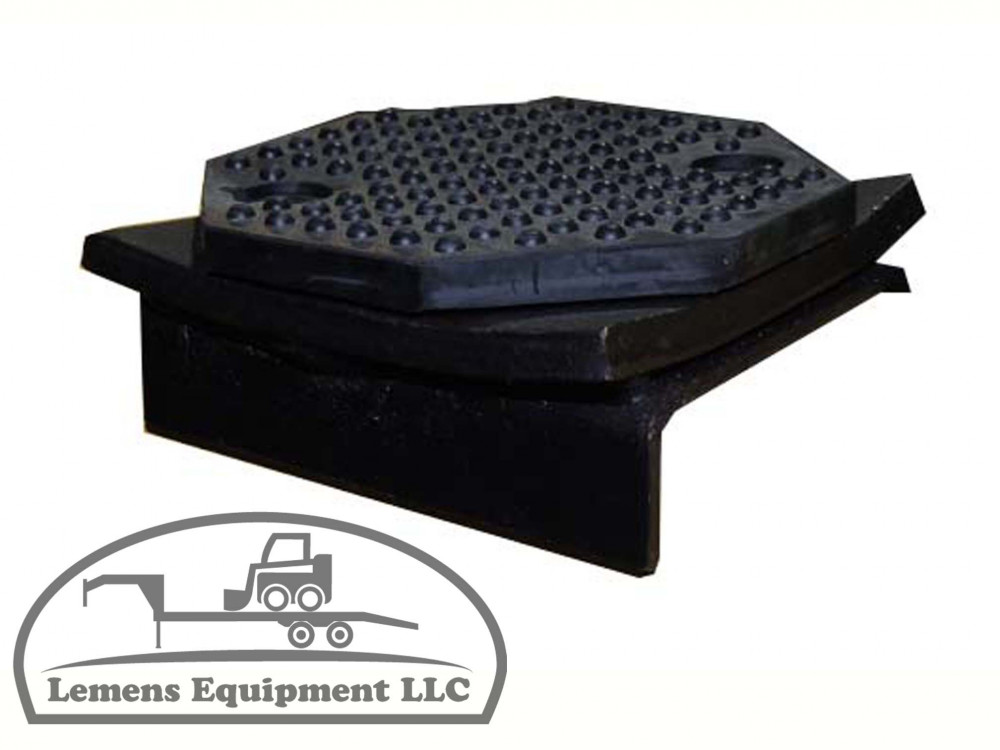

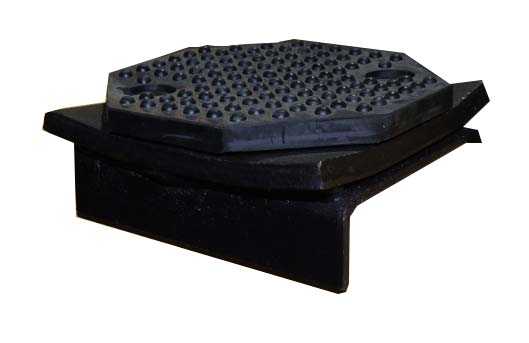

-Saddle pad adapters included (1 pair)
-Powder coat finish

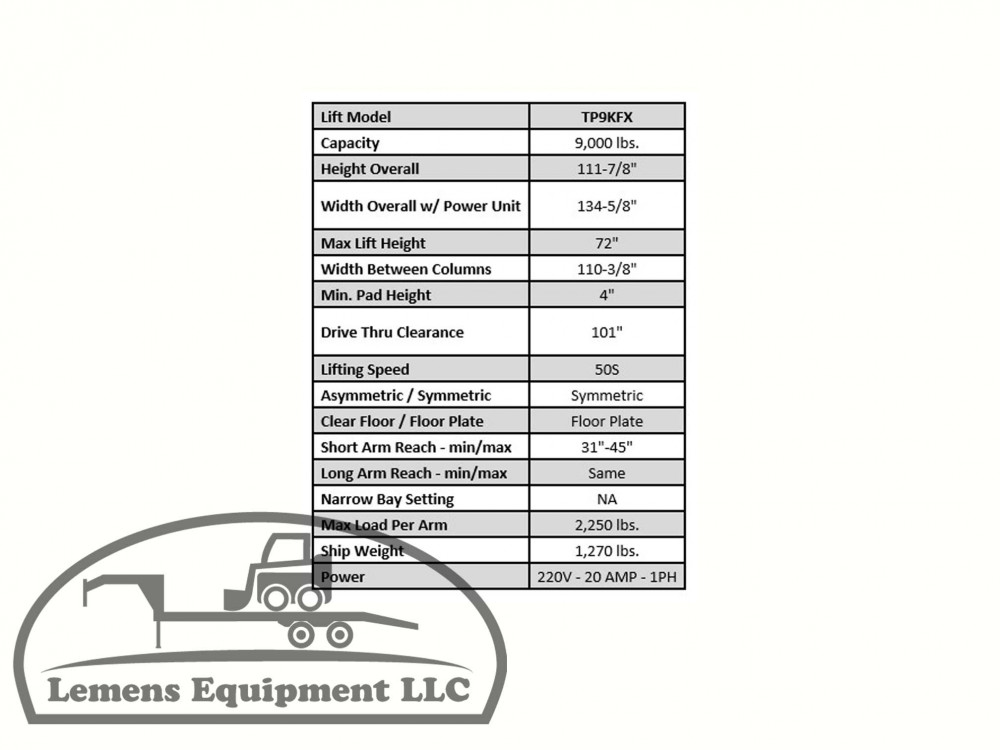

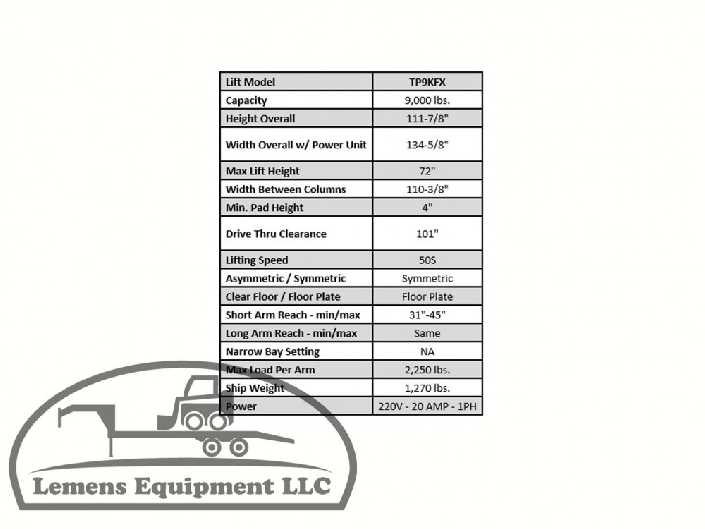

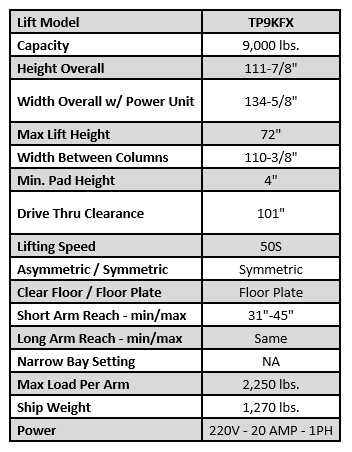

CONSTRUCTION

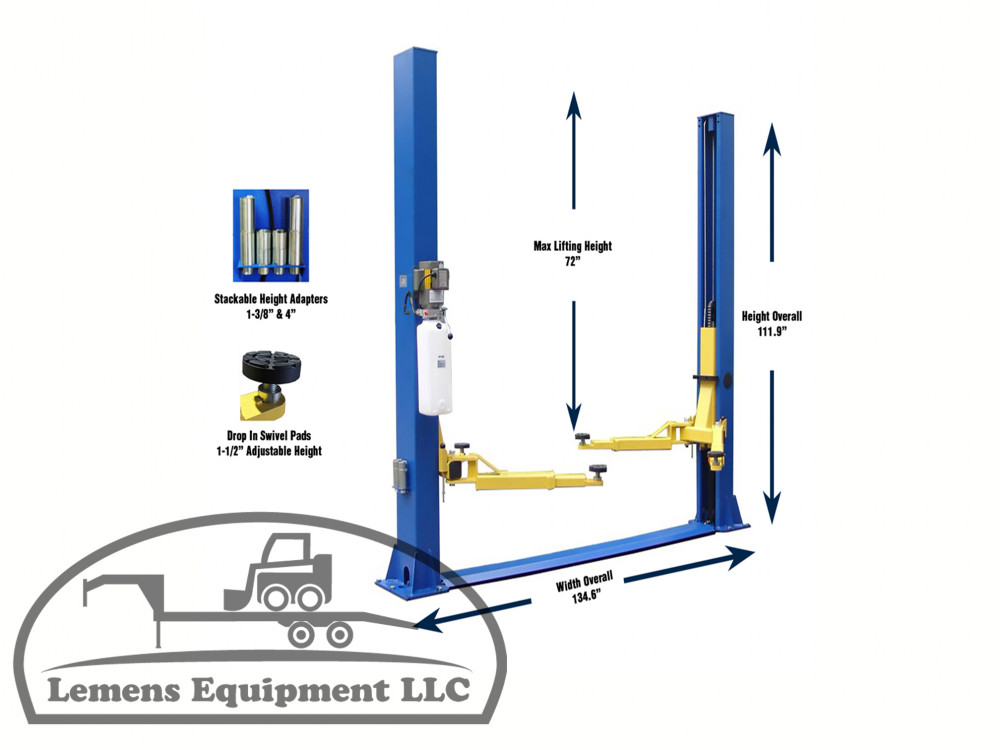

-Height Overall: 111-7/8"
-Width Overall w/ Power Unit: 134-5/8"
-Max Lift Height: 72"
-Width Between Columns: 110-3/8"
-Min. Pad Height: 4"
-Drive Thru Clearance: 101"
-Lifting Speed: 50 seconds
-Asymmetric/Symmetric: Symmetric
-Clear Floor/Floor Plate: Floor Plate
-Short Arm Reach - min/max: 31" - 45"
-Long Arm Reach - min/max: 31" - 45"
-Max Load Per Arm: 2,250 lbs
-Ship Weight: 1,270 lbs
-Power: 220V - 20 AMP - 1PH
OPTIONAL
-Spin up cradle adapter (set of 4)
WARRANTY
-5 Year Structural Warranty On: Columns, Arms, Uprights, Swivel Pins, Legs, Carriages, Overhead Beam, Tracks, Cross Rails, and Top Rail Beam
-Limited One-Year Warranty: Tuxedo Distributors, LLC (Tuxedo) offers a limited one-year warranty to the original purchaser of Lifts and Wheel Service equipment in the United States and Canada. Tuxedo will replace, without charge, any part found defective in materials or workmanship under normal use, for a period of one year after purchase.
-The purchaser is responsible for all shipping charges. This warranty does not apply to equipment that has been improperly installed or altered or that has not been operated or maintained according to specifications
SHIPPING
-All in stock lifts can be picked up here at Lemens Equipment LLC in Eldon MO. Please give us a day notice prior to coming so we can get it ready for you.
-Lifts can be drop shipped directly to you, if you have a method to unload it at your destination in ~3-5 days. They can also be shipped here and picked up from us.
-Freight is cheaper per item when we buy multiple lifts at a time on a Hotshot. That is why the shipping charge on our in stock lifts is cheaper then out of stock lifts that would ship by themselves via LTL.
