Video Walk Around
Overview
-
Make
Quick Attach
-
Condition
New
-
Warranty
Yes
-
Weight
242 lbs
-
Width
33.5"

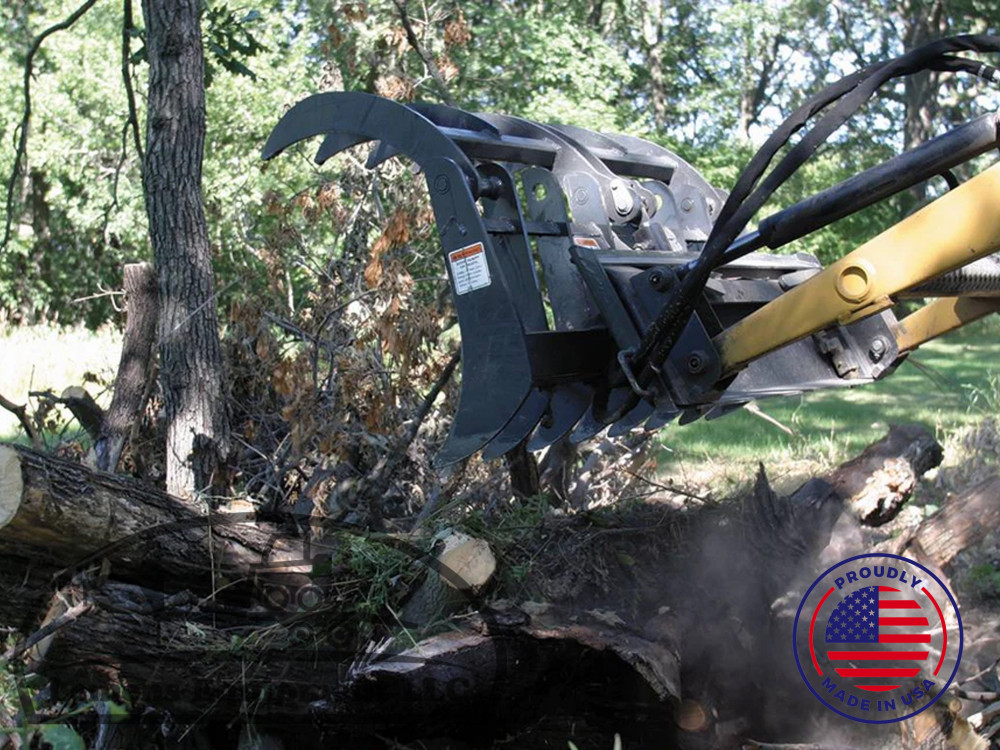

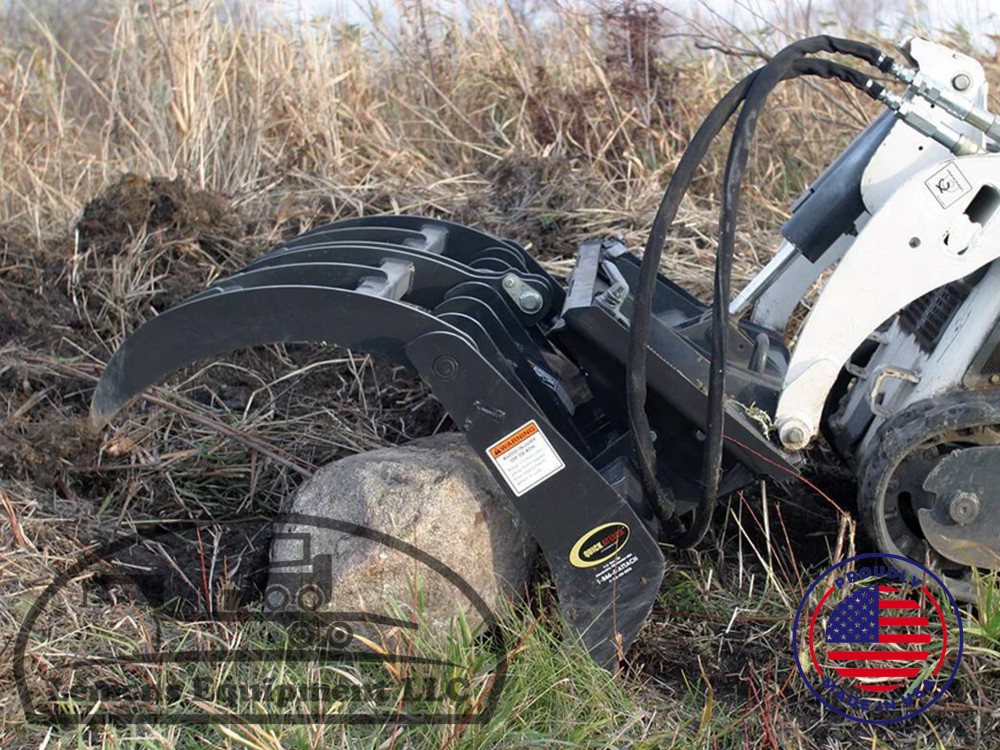

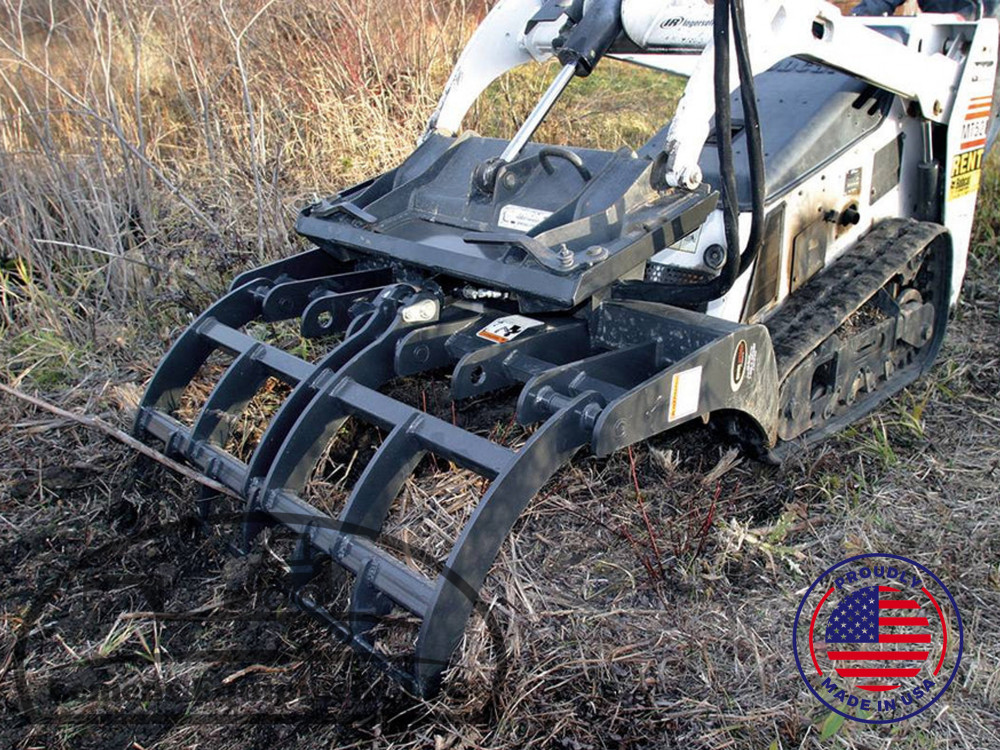

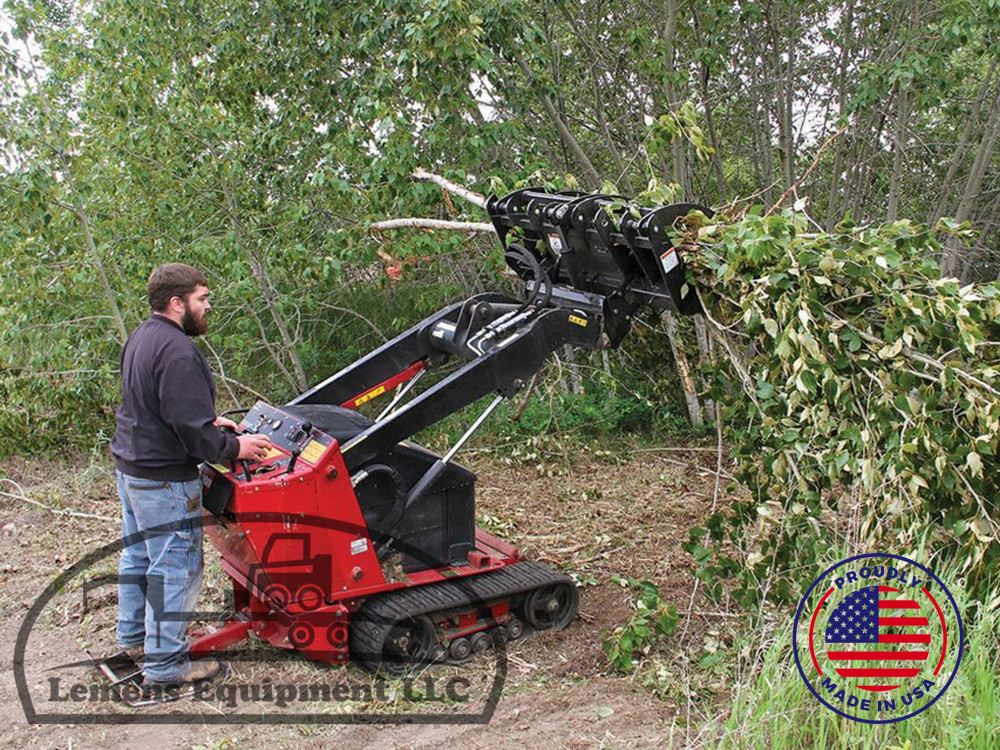

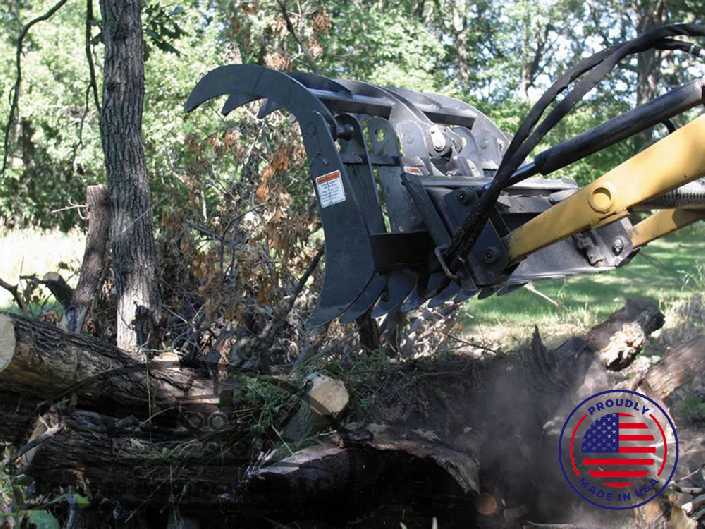

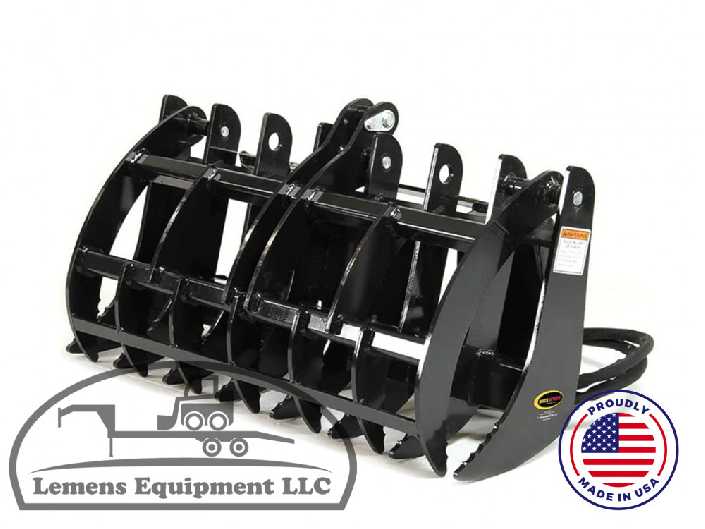

The most versatile tool in your attachment arsenal. The strength of the Mini Grapple Rake allows you to pick up a variety of debris, from logs and brush to rocks and concrete. The quality and strength of the high-strength steel used throughout gives you a grapple rake that will withstand the toughest demands. Its 36" opening and powerful jaws will close, clamp and hold virtually anything.
• 1/2" Grade 50 steel teeth nearly 40% stronger than regular
• 1 - 3,000 psi hydraulic cylinder
• Curved teeth allow the grapple to glide over the ground, raking and cleaning the surface without damaging it
• Clear brush, pick rocks, and mulch
• Raking and piling, storm cleanup and demolition
• Use as a root rake and for back dragging
• Weight: 242lb
• Overall Width: 33.5"
• Height w/ Teeth Closed: 26.7"
• Maximum Height w/Teeth Open: 37.25"
• Maximum Opening: 36"
• Hydraulic Cylinder: Dual 2.5" x 6"
• Grapple Teeth (upper): 7
• Grapple Teeth (lower): 6
• Mounting Kit Configurations: ASV/Terex (RC/PT30), Bobcat (MT-52/55, 463/S70), Toro / Vermeer / Boxer / Ditch Witch / Ramrod / Kanga / Cormidi, Universal Mounting Plate (up to 1,000 lb. ROC)
Options
• Factory Installed Couplers
