Overview
-
Make
Quick Attach
-
Condition
New
-
Warranty
Yes
-
Weight
1000 lbs
-
Width
108"

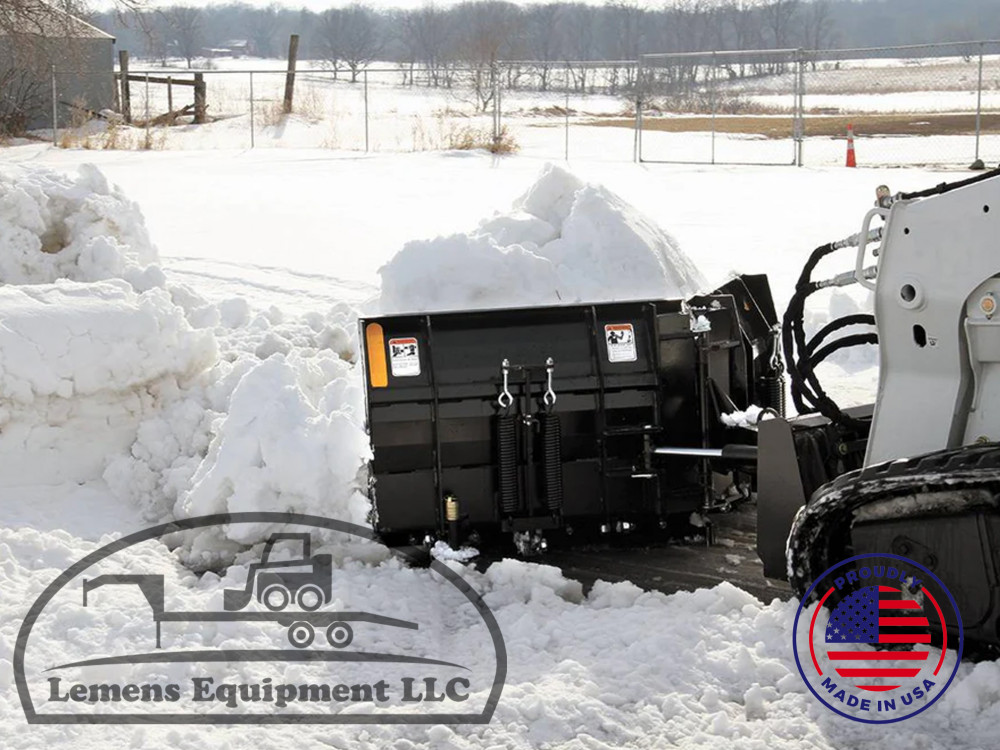

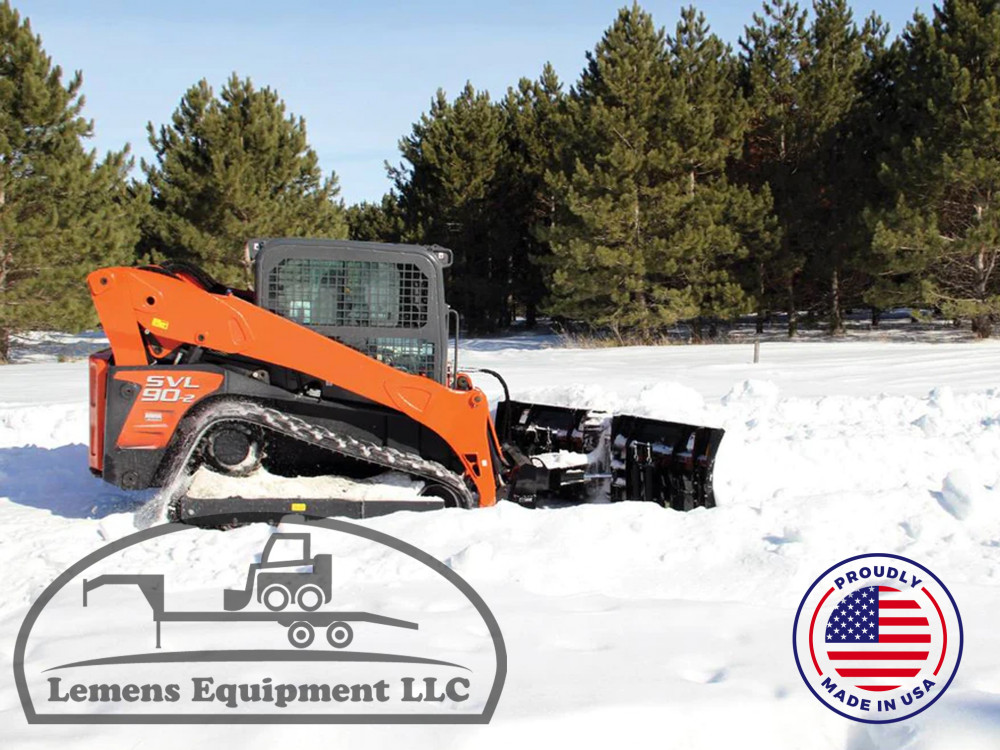

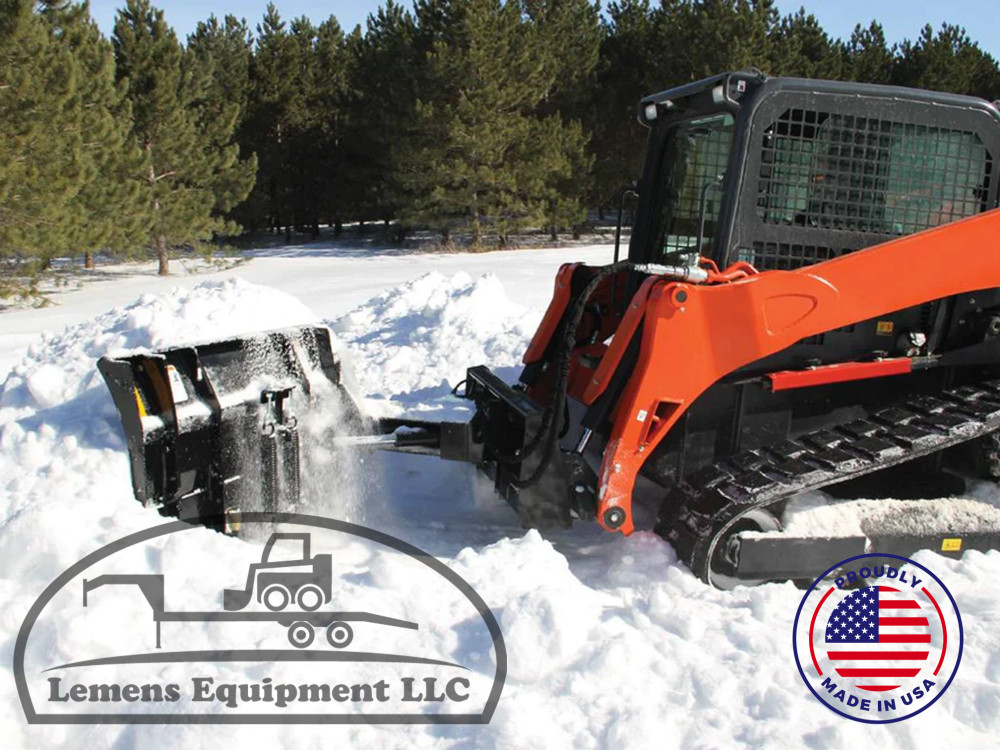

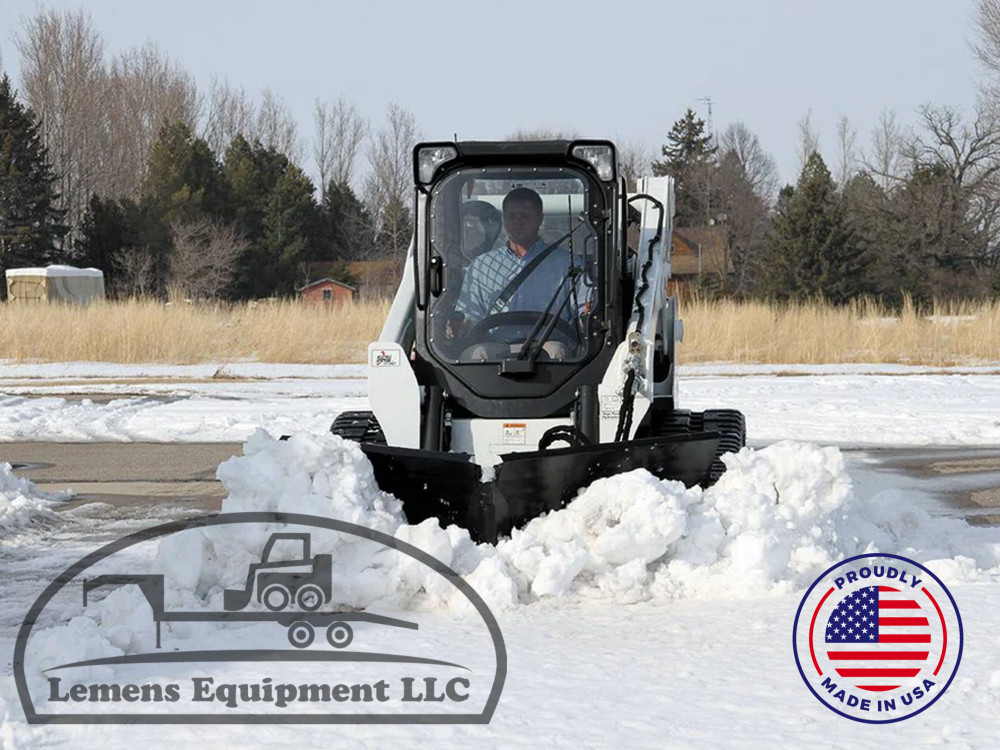

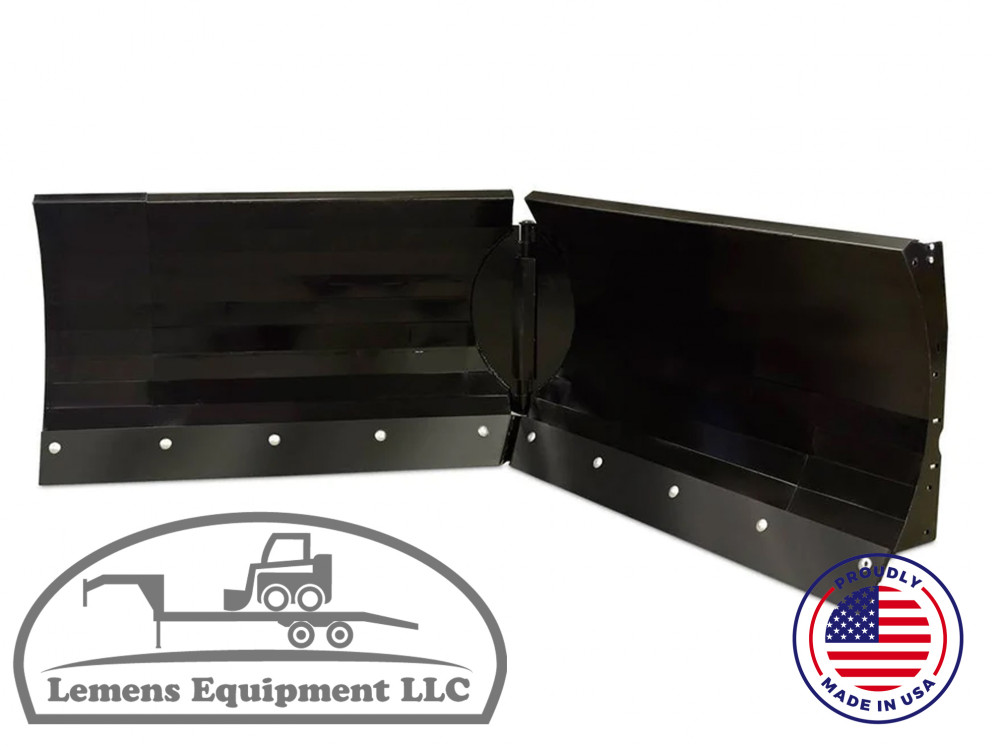

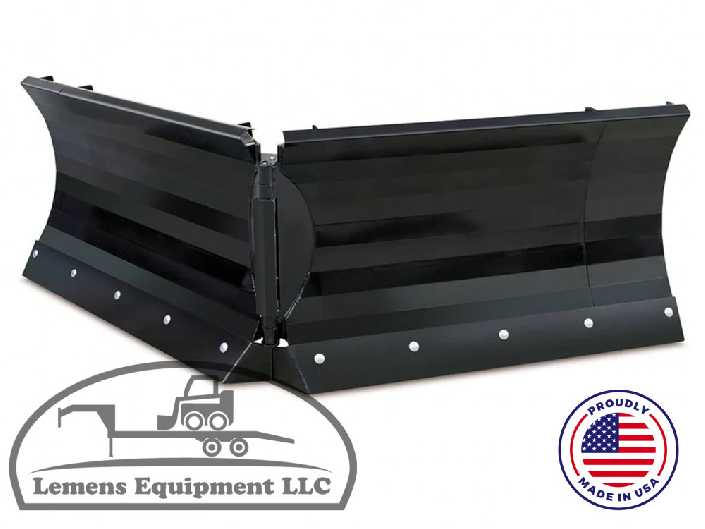

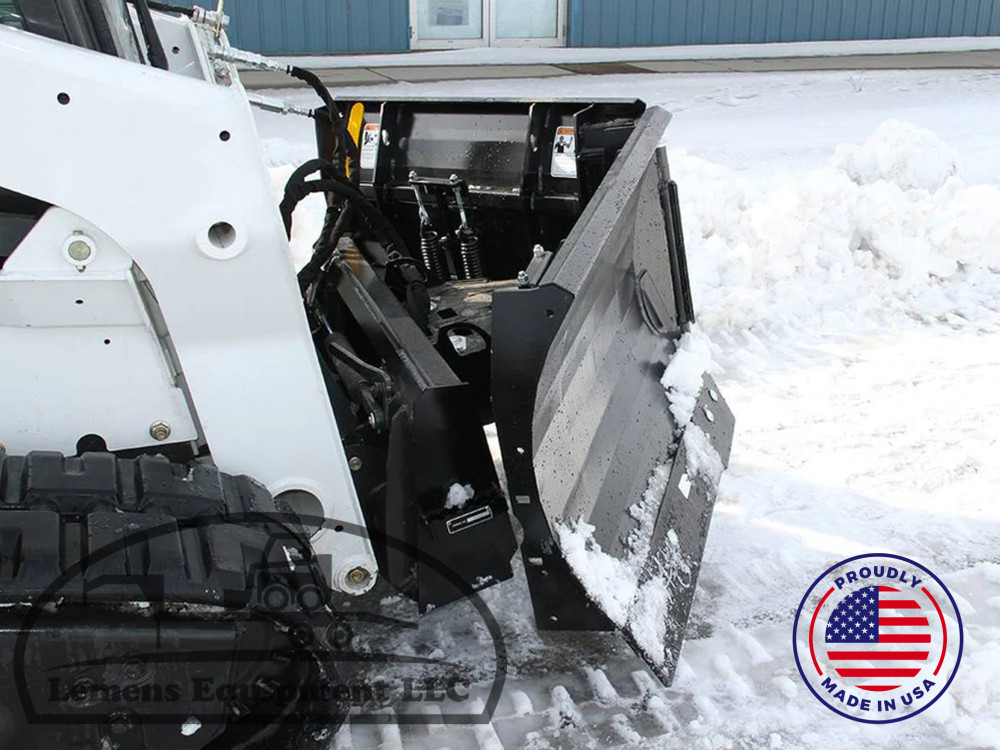

The V-Plow puts you in position for highly productive snow removal. V, scoop, left and right positions allow you maximum maneuverability. This attachment is engineered for quality from the ground up.
• Two-Way hydraulic only control provides full moldboard control in V, scoop, left and right positions
• 2" bore x 10" stroke cylinders with 1 1/4" rods and 1 1/4" cylinder pins
• Trip edge utilizing four extension springs
• Floating moldboard and adjustable cast skid shoes
• Central cutting edge bracket is designed to block snow from passing through the blade hinge point
• Straight Blade Width: 110"
• Angled Blade Width: 89"
• V Position Width: 96"
• Scoop Position Width: 81"
• Blade Height: 31.8"
• Blade Angle: +/- 36°
• Amount of Float: +/- 2.5°
• Overall Length: 41.75"
• Moldboard Thickness: .135"
• Bolt-on Cutting Edge: 1/2" x 6"
• Approximate Weight: 1000 lb
Options
• Hardened Skid Shoes
• Factory Installed Couplers
